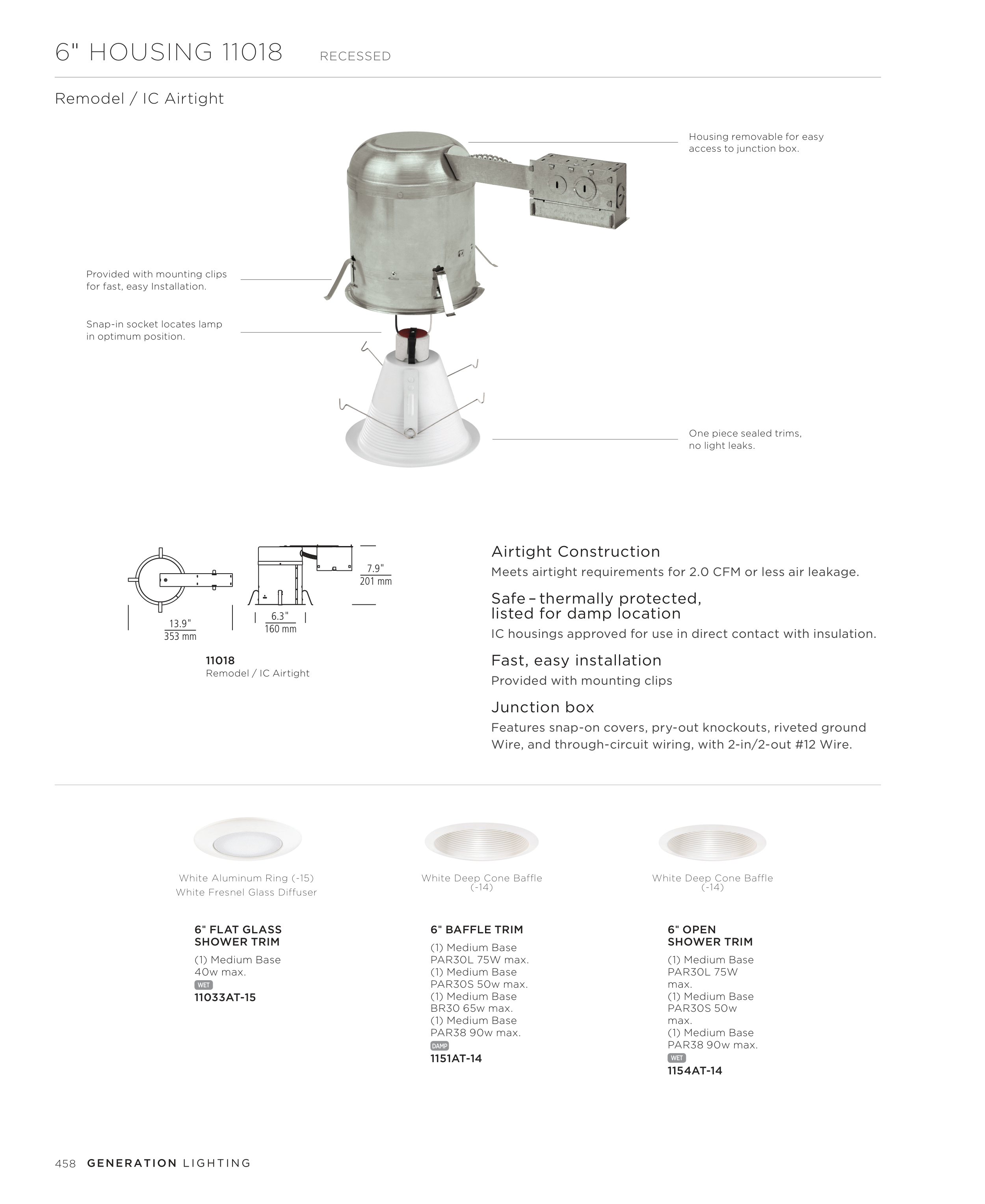

6" HOUSING 11018
RECESSED
RECESSED
6" HOUSING 1109
Remodel / IC Airtight
6.3"
160 mm
13.9"
353 mm
7.9"
201 mm
Airtight Construction
Meets airtight requirements for 2.0 CFM or less air leakage.
Safe – thermally protected,
listed for damp location
IC housings approved for use in direct contact with insulation.
Fast, easy installation
Provided with mounting clips
Junction box
Features snap-on covers, pry-out knockouts, riveted ground
Wire, and through-circuit wiring, with 2-in/2-out #12 Wire.
11018
Remodel / IC Airtight
Snap-in socket locates lamp
in optimum position.
Housing removable for easy
access to junction box.
Provided with mounting clips
for fast, easy Installation.
One piece sealed trims,
no light leaks.
White Aluminum Ring (-15)
White Fresnel Glass Diffuser
6" FLAT GLASS
SHOWER TRIM
(1) Medium Base
40w max.
WET
11033AT-15
6" BAFFLE TRIM
(1) Medium Base
PAR30L 75W max.
(1) Medium Base
PAR30S 50w max.
(1) Medium Base
BR30 65w max.
(1) Medium Base
PAR38 90w max.
DAMP
1151AT-14
White Deep Cone Baffle
(-14)
6" OPEN
SHOWER TRIM
(1) Medium Base
PAR30L 75W
max.
(1) Medium Base
PAR30S 50w
max.
(1) Medium Base
PAR38 90w max.
WET
1154AT-14
White Deep Cone Baffle
(-14)
458
