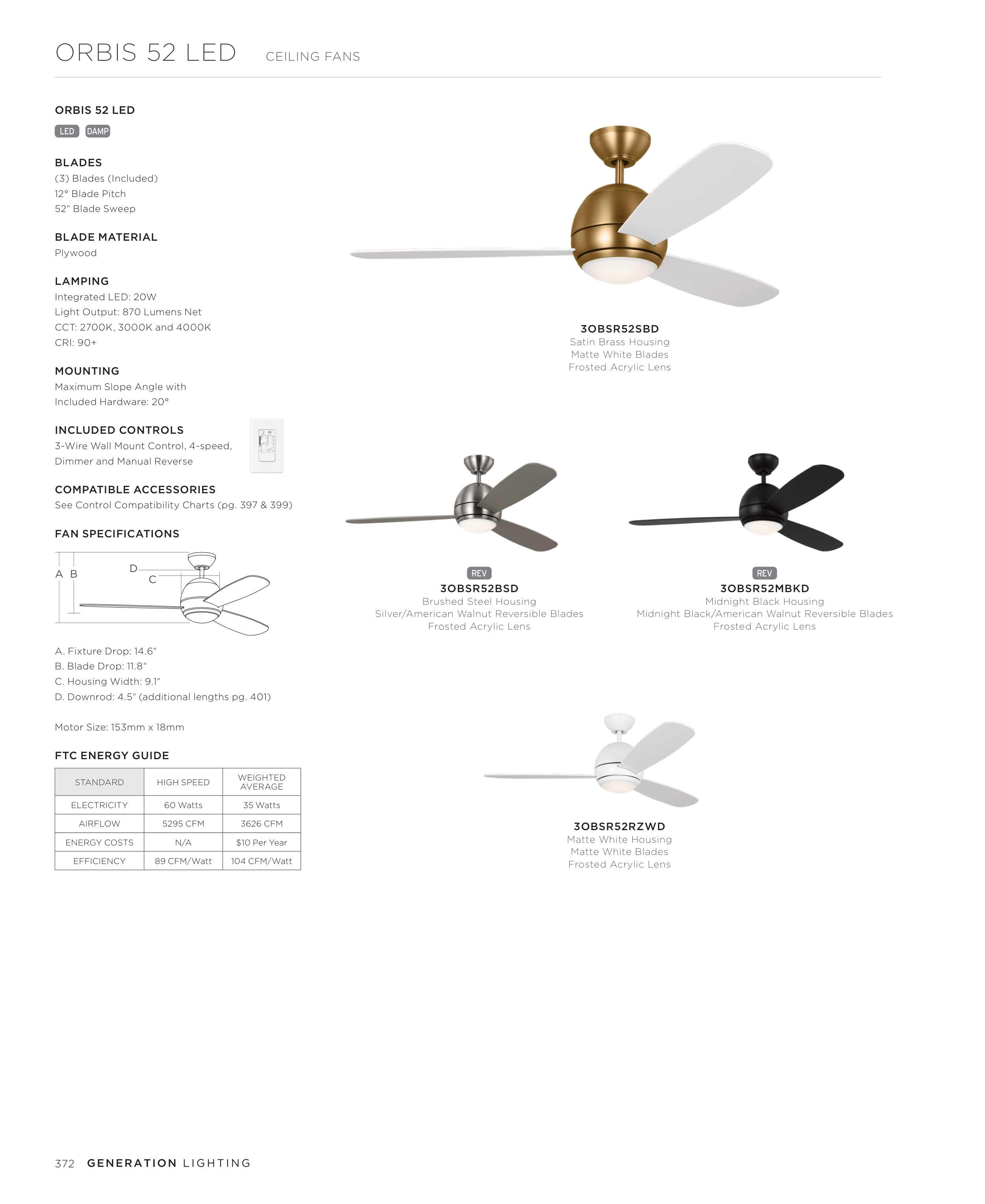

ORBIS 52 LED
CEILING FANS
CEILING FANS
ORBIS 52 HUGGER LED
ORBIS 52 LED
LED DAMP
BLADES
(3) Blades (Included)
12° Blade Pitch
52" Blade Sweep
BLADE MATERIAL
Plywood
LAMPING
Integrated LED: 20W
Light Output: 870 Lumens Net
CCT: 2700K, 3000K and 4000K
CRI: 90+
MOUNTING
Maximum Slope Angle with
Included Hardware: 20°
INCLUDED CONTROLS
3-Wire Wall Mount Control, 4-speed,
Dimmer and Manual Reverse
COMPATIBLE ACCESSORIES
See Control Compatibility Charts (pg. 397 & 399)
FAN SPECIFICATIONS
A B
D
C
A. Fixture Drop: 14.6"
B. Blade Drop: 11.8"
C. Housing Width: 9.1"
D. Downrod: 4.5" (additional lengths pg. 401)
Motor Size: 153mm x 18mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
60 Watts
35 Watts
AIRFLOW
5295 CFM
3626 CFM
ENERGY COSTS
N/A
$10 Per Year
EFFICIENCY
89 CFM/Watt
104 CFM/Watt
REV
3OBSR52BSD
Brushed Steel Housing
Silver/American Walnut Reversible Blades
Frosted Acrylic Lens
REV
3OBSR52MBKD
Midnight Black Housing
Midnight Black/American Walnut Reversible Blades
Frosted Acrylic Lens
3OBSR52SBD
Satin Brass Housing
Matte White Blades
Frosted Acrylic Lens
3OBSR52RZWD
Matte White Housing
Matte White Blades
Frosted Acrylic Lens
372
