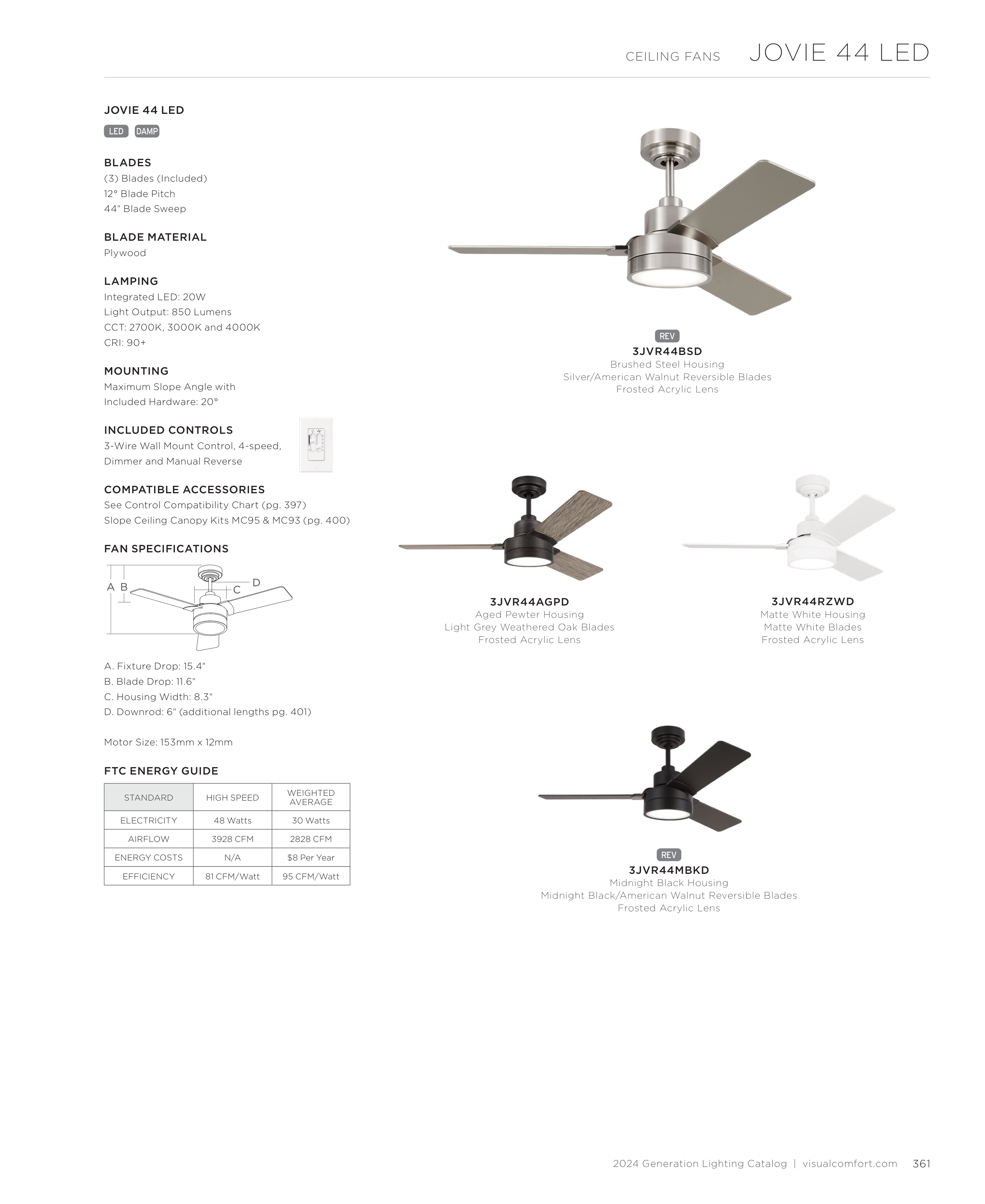

CEILING FANS
JOVIE 44 LED
JOVIE 44 LED
LED DAMP
BLADES
(3) Blades (Included)
12° Blade Pitch
44" Blade Sweep
BLADE MATERIAL
Plywood
LAMPING
Integrated LED: 20W
Light Output: 850 Lumens
CCT: 2700K, 3000K and 4000K
CRI: 90+
MOUNTING
Maximum Slope Angle with
Included Hardware: 20°
INCLUDED CONTROLS
3-Wire Wall Mount Control, 4-speed,
Dimmer and Manual Reverse
COMPATIBLE ACCESSORIES
See Control Compatibility Chart (pg. 397)
Slope Ceiling Canopy Kits MC95 & MC93 (pg. 400)
FAN SPECIFICATIONS
A B
D
C
A. Fixture Drop: 15.4"
B. Blade Drop: 11.6"
C. Housing Width: 8.3"
D. Downrod: 6" (additional lengths pg. 401)
Motor Size: 153mm x 12mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
48 Watts
30 Watts
AIRFLOW
3928 CFM
2828 CFM
ENERGY COSTS
N/A
$8 Per Year
EFFICIENCY
81 CFM/Watt
95 CFM/Watt
REV
3JVR44MBKD
Midnight Black Housing
Midnight Black/American Walnut Reversible Blades
Frosted Acrylic Lens
3JVR44AGPD
Aged Pewter Housing
Light Grey Weathered Oak Blades
Frosted Acrylic Lens
3JVR44RZWD
Matte White Housing
Matte White Blades
Frosted Acrylic Lens
REV
3JVR44BSD
Brushed Steel Housing
Silver/American Walnut Reversible Blades
Frosted Acrylic Lens
361
2024 Generation Lighting Catalog | visualcomfort.com
