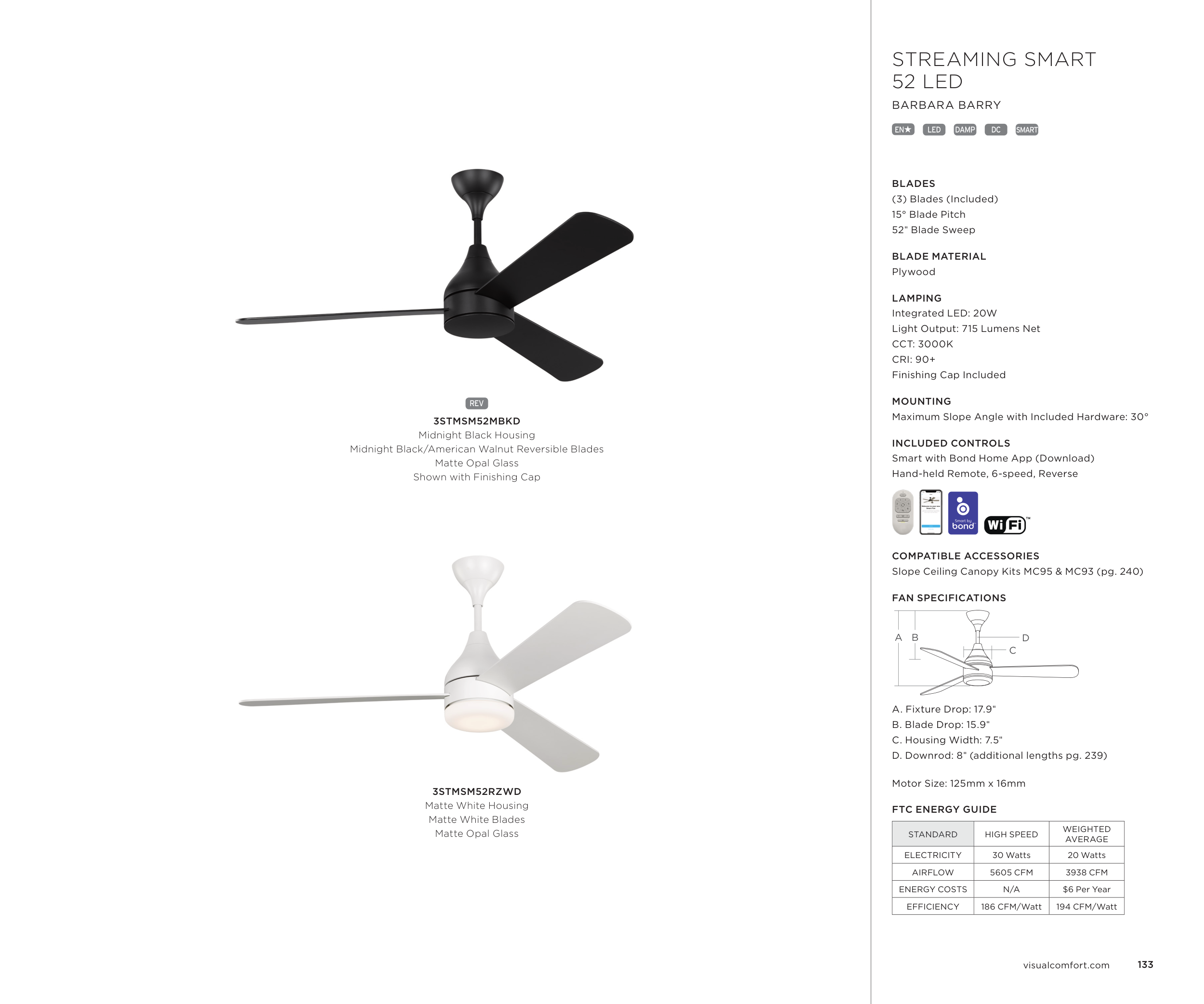

STREAMING SMART
52 LED
BARBARA BARRY
EN★ LED DAMP
DC SMART
BLADES
(3) Blades (Included)
15° Blade Pitch
52" Blade Sweep
BLADE MATERIAL
Plywood
LAMPING
Integrated LED: 20W
Light Output: 715 Lumens Net
CCT: 3000K
CRI: 90+
Finishing Cap Included
MOUNTING
Maximum Slope Angle with Included Hardware: 30°
INCLUDED CONTROLS
Smart with Bond Home App (Download)
Hand-held Remote, 6-speed, Reverse
TM
TM
TM
COMPATIBLE ACCESSORIES
Slope Ceiling Canopy Kits MC95 & MC93 (pg. 240)
FAN SPECIFICATIONS
A
D
B
C
A. Fixture Drop: 17.9"
B. Blade Drop: 15.9"
C. Housing Width: 7.5"
D. Downrod: 8" (additional lengths pg. 239)
Motor Size: 125mm x 16mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
30 Watts
20 Watts
AIRFLOW
5605 CFM
3938 CFM
ENERGY COSTS
N/A
$6 Per Year
EFFICIENCY
186 CFM/Watt
194 CFM/Watt
REV
3STMSM52MBKD
Midnight Black Housing
Midnight Black/American Walnut Reversible Blades
Matte Opal Glass
Shown with Finishing Cap
3STMSM52RZWD
Matte White Housing
Matte White Blades
Matte Opal Glass
133
visualcomfort.com
