<< index < Suspension
1Y RF10 2022
1Y RF10 5022
1Y RF10 7022
1Y RF7 2022
1Y RF7 5022
1Y RF7 7022
1Y RF10 2023
1Y RF10 5023
1Y RF10 7023
1Y RF7 2023
1Y RF7 5023
1Y RF7 7023
IP50
Shorter RF ROD available on demand.
350mA - required remote mounted driver + required cover/canopy see below
3 x LED array 6W (LED incl.) - 350mA - 3 x 634lm - 2700K - CRI >93
Each arm on the same level has the same length: 3 x 250 mm = Ø 590 mm / 3 x 500 mm = Ø 1090 mm / 3 x 750 mm = Ø 1590 mm.
SUSPENSION -
gunmetal, bronze and nickel on demand
gunmetal, bronze and nickel on demand
1Y RF 75
1Y RF 100
canopy B10
Ø50
105
cover C6
2
Ø60
cover C8
5
Ø80
REQUIRED COVER/CANOPY for Austere-Chandelier 1Y RF 75 / RF 100 with REMOTE MOUNTED DRIVER
remote driver
aperture : Ø30 D50
remote driver
aperture : Ø45 - depth: min. 60mm
DRIVER
NOTE: If the thickness of the false ceiling
is 15mm, the total length of the chandelier:
RF 75 with cover C6 will be 778mm
RF 100 with cover C6 will be 1028mm
NOTE: the total length of the chandelier:
RF 75 with cover C8 will be 806mm
RF 100 with cover C8 will be 1056mm
NOTE: the total length of the chandelier:
RF 75 with canopy B10 will be 906mm
RF 100 with canopy B10 will be 1156mm
DEVICE
DIM.
DRIVER
N 50W
D 80WP
D 80WD
REQUIRED REMOTE MOUNTED DRIVER for Austere-Chandelier 1Y RF 75 / RF 100
For warranty use only Trizo21® supplied LED drivers as mentioned. For all specs and techs about drivers, see www.trizo21.com/drivers
1 x
1 x
1 x
(non-dimmable)
driver only fits through cutout hole of fixture with C6, min. depth for driver in false ceiling: 280mm
NO
PU
1-10 (1-10V)
+
(PUSH-DIM)
PU (PUSH-DIM)
DA (DALI)
+
false ceiling
concrete ceiling
false/concrete ceiling
21CO 3300
21CO 2200
21CO 1100
brass
black
white
21CO 8003
21CO 8002
21CO 8001
brass
black
white
21CP 3333
21CP 2222
21CP 1 1 1 1
brass
black
white
3x 250mm
3x 500mm
3x 750mm
3x 250mm
3x 500mm
3x 750mm

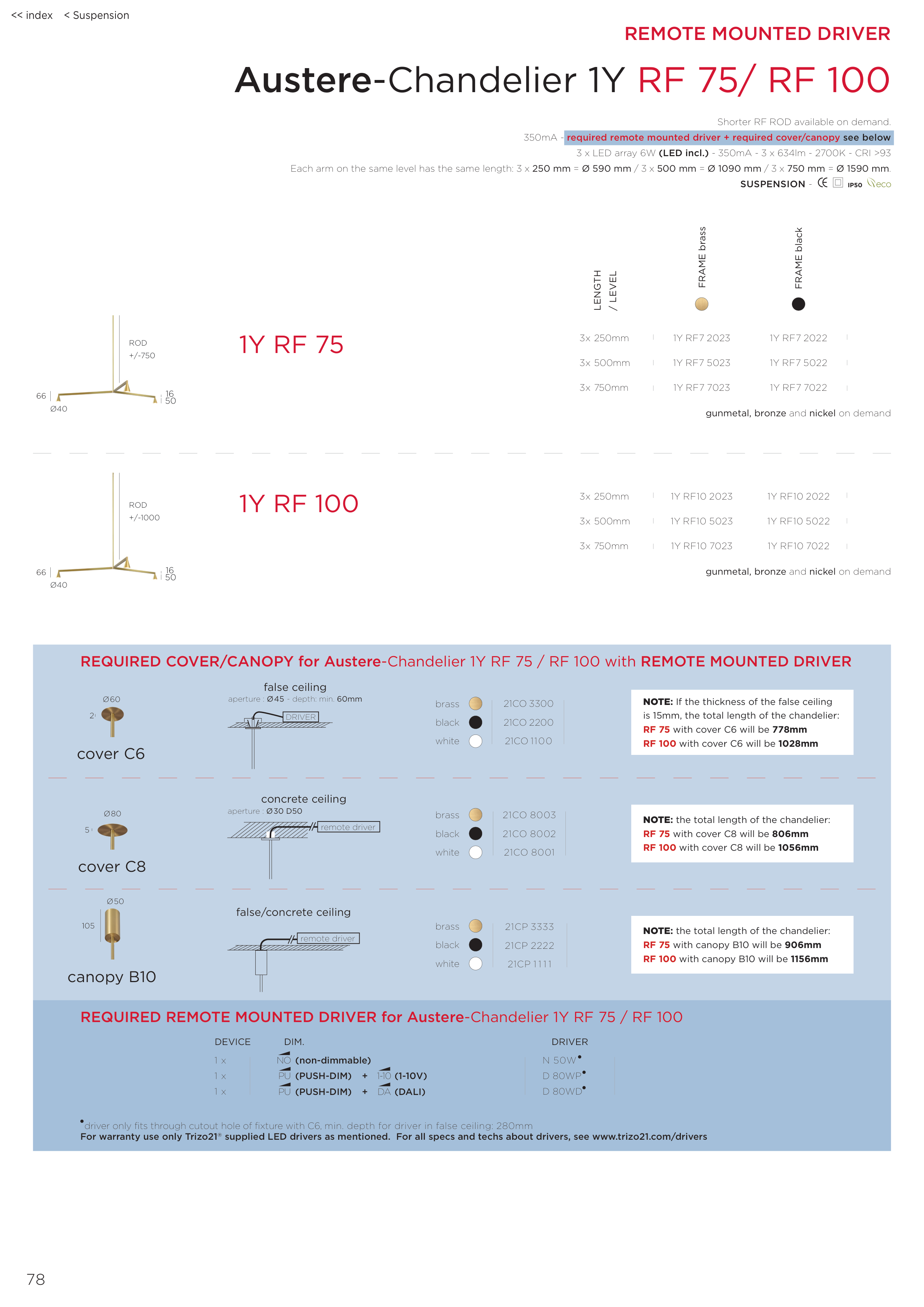

Austere-Chandelier 1Y RF 75/ RF 100
REMOTE MOUNTED DRIVER
Ø40
50
16
ROD
+/-750
66
ROD
+/-1000
Ø40
50
16
66
LENGTH
/ LEVEL
FRAME black
FRAME brass
