123
<< index < Recessed
BIINF 1620
BIINF 1628
BIINC 1620
BIINC 1628
BIINF 1610
BIINF 1618
BIINC 1610
BIINC 1618
BIINF 1670
BIINF 1678
BIINC 1670
BIINC 1678
BIINF 1680
BIINF 1688
BIINC 1680
BIINC 1688
BIINF 1690
BIINF 1698
BIINC 1690
BIINC 1698
350mA - required remote mounted driver see below
1 x LED array 11W (LED incl.) - 350mA - 1125lm - 2700K - CRI >97
FALSE ceiling = aperture : Ø 67 - depth : min. 50 mm - depth for driver in ceiling : min. 70 mm
CONCRETE ceiling = aperture : Ø 67 - depth : min. 70 mm - depth for driver in ceiling : min. 130 mm
CEILING -
IP50
DEVICE
DIM.
DRIVER
REQUIRED REMOTE MOUNTED DRIVER
1 x
1 x
1 x
1 x
1 x
1-3 x
LC (TRIAC/IGBT)
DA (DALI)
DA (DALI)
N 12W**
D 18WT
D 15WP*
D 15WDA EU
D 15WDA US*
D 40WDP*
PU
+
(PUSH-DIM)
DA (DALI)
+
1-10 (1-10V)
1-10 (1-10V)
PU (PUSH-DIM)
+
NO (non-dimmable)
driver remote mounting: driver does not fit through cutout hole of fixture
*110V-230V
For warranty use only Trizo21® supplied LED drivers as mentioned.
For all specs and techs about drivers, see www.trizo21.com/drivers
FRAME black
FRAME white
FRAME gold
FRAME bronze
gold LED HOLDER
gold LED HOLDER
silver LED HOLDER
silver LED HOLDER
FRAME alu
CONCRETE ceiling
CONCRETE ceiling
FALSE ceiling
FALSE ceiling

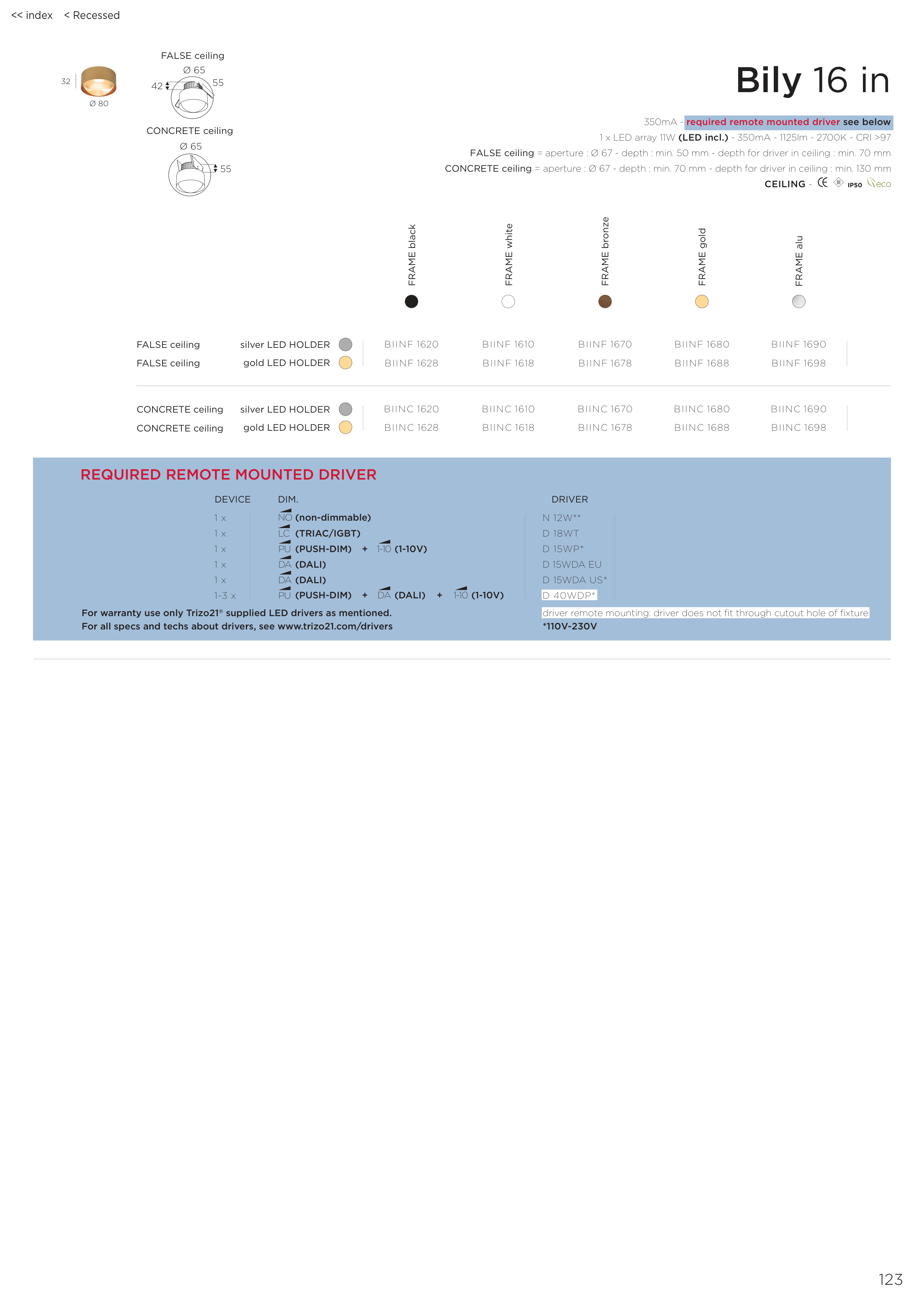

Bily 16 in
32
Ø 80
FALSE ceiling
Ø 65
55
42
CONCRETE ceiling
Ø 65
55
