<< index < Recessed
THIN 22223
THIN 27223
THIN 28223
THIN 22223H
THIN 27223H
THIN 28223H
TH3N 22223H
TH3N 27223H
TH3N 28223H
TH3N 22223
TH3N 27223
TH3N 28223
230V (110V on demand)
2 x LED module 10W (LED incl.) - 230V - 2 x 1000lm - 2700K - CRI >90 - TRIAC dimmable
CEILING -
IP50
350mA - required remote mounted driver see below
2 x LED array 11,8W (LED incl.) - 350mA - 2 x 1241lm - 2700K - CRI >97 - dimmable
CEILING -
IP50
DEVICE
DIM.
DRIVER
REQUIRED REMOTE MOUNTED DRIVER
1 x
PU
+
(PUSH-DIM)
DA (DALI)
+
1-10 (1-10V)
D 40WDP*
driver remote mounting: driver does not fit through cutout hole of fixture
*110V-230V
For warranty use only Trizo21® supplied LED drivers as mentioned.
For all specs and techs about drivers, see www.trizo21.com/drivers
+ honeycomb
+ honeycomb
BODY black
SWIVEL black
RING black
ROD + COVER black
BODY black
SWIVEL black
RING black
ROD + COVER black
SWIVEL black
RING bronze
BODY black
ROD + COVER black
SWIVEL black
RING bronze
BODY black
ROD + COVER black
SWIVEL black
RING gold
BODY black
ROD + COVER black
SWIVEL black
RING gold
BODY black
ROD + COVER black

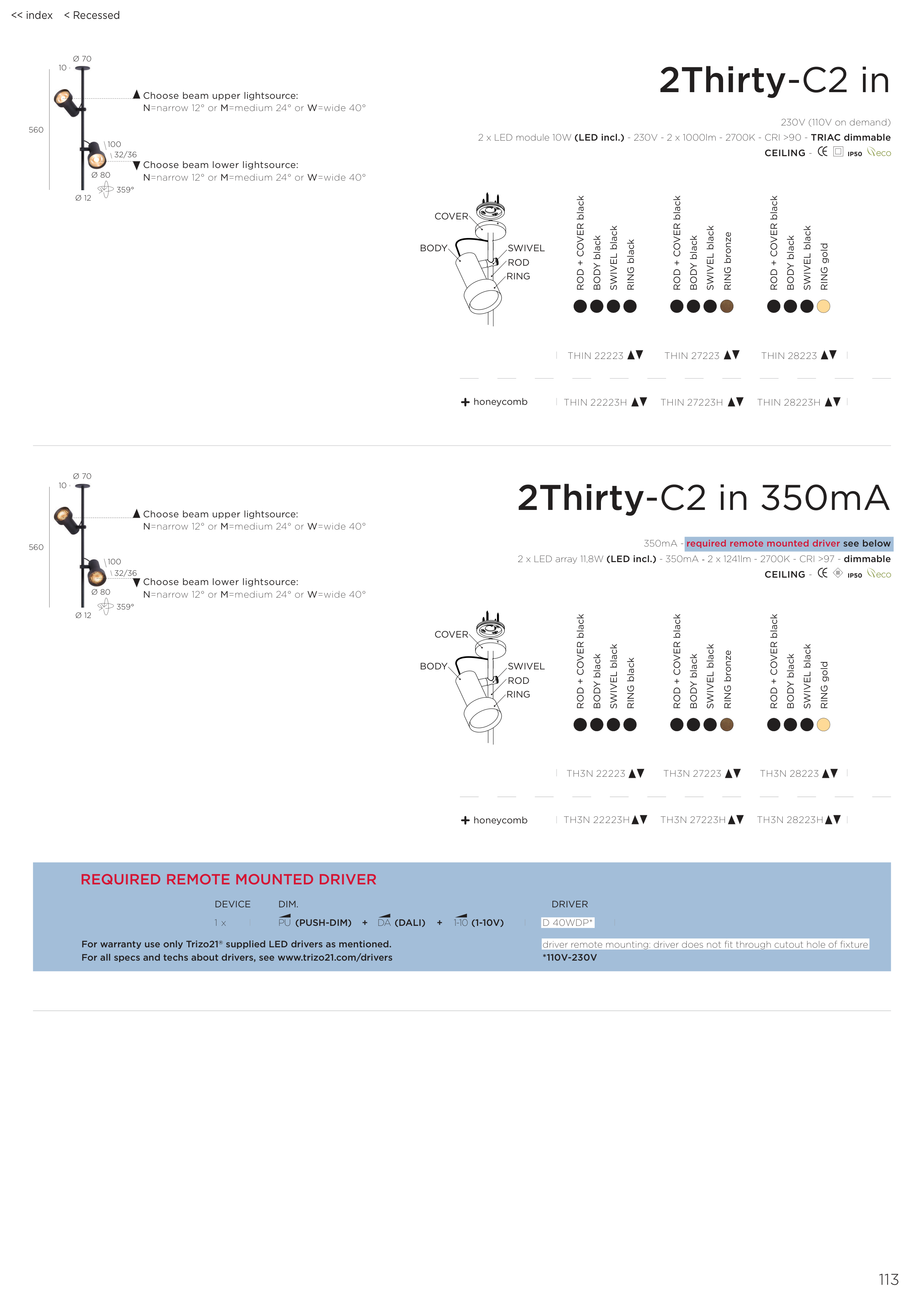

2Thirty-C2 in
2Thirty-C2 in 350mA
Ø 70
Ø 12
560
100
32/36
Choose beam upper lightsource:
N=narrow 12° or M=medium 24° or W=wide 40°
Choose beam upper lightsource:
N=narrow 12° or M=medium 24° or W=wide 40°
Choose beam lower lightsource:
N=narrow 12° or M=medium 24° or W=wide 40°
Choose beam lower lightsource:
N=narrow 12° or M=medium 24° or W=wide 40°
10
Ø 70
Ø 12
560
359°
Ø 80
100
32/36
10
RING
BODY
SWIVEL
COVER
ROD
RING
BODY
SWIVEL
COVER
ROD
359°
Ø 80
