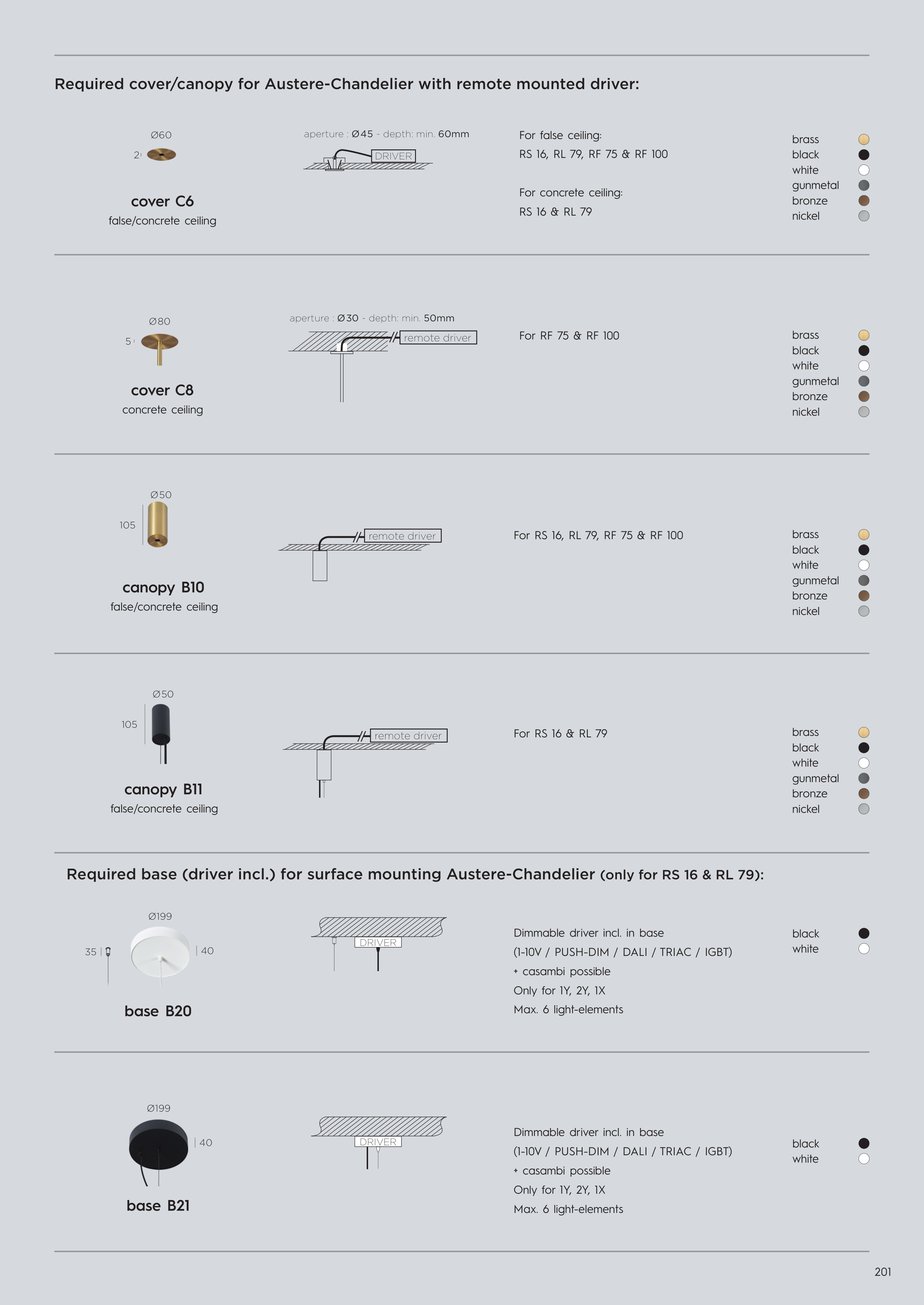

Required cover/canopy for Austere-Chandelier with remote mounted driver:
Required base (driver incl.) for surface mounting Austere-Chandelier (only for RS 16 & RL 79):
Dimmable driver incl. in base
(1-10V / PUSH-DIM / DALI / TRIAC / IGBT)
+ casambi possible
Only for 1Y, 2Y, 1X
Max. 6 light-elements
Dimmable driver incl. in base
(1-10V / PUSH-DIM / DALI / TRIAC / IGBT)
+ casambi possible
Only for 1Y, 2Y, 1X
Max. 6 light-elements
cover C6
cover C8
2
Ø60
5
Ø80
aperture : Ø30 - depth: min. 50mm
remote driver
aperture : Ø45 - depth: min. 60mm
DRIVER
false/concrete ceiling
concrete ceiling
Ø50
105
remote driver
Ø50
105
remote driver
canopy B10
canopy B11
false/concrete ceiling
false/concrete ceiling
DRIVER
DRIVER
Ø199
40
Ø199
40
35
base B20
base B21
201
For false ceiling:
RS 16, RL 79, RF 75 & RF 100
For concrete ceiling:
RS 16 & RL 79
For RF 75 & RF 100
For RS 16, RL 79, RF 75 & RF 100
For RS 16 & RL 79
black
white
black
white
brass
black
white
gunmetal
bronze
nickel
brass
black
white
gunmetal
bronze
nickel
brass
black
white
gunmetal
bronze
nickel
brass
black
white
gunmetal
bronze
nickel
