168

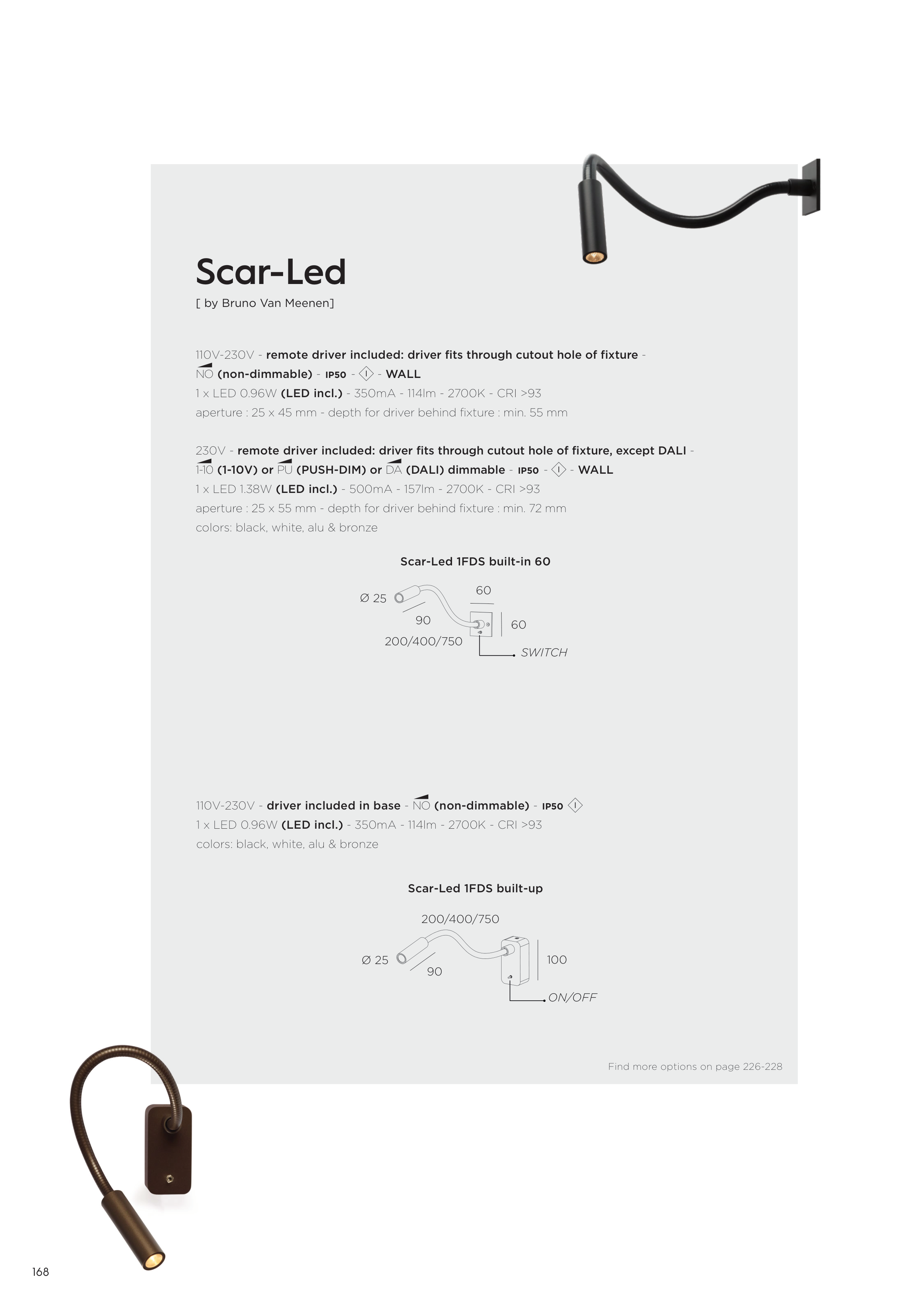

Scar-Led
[ by Bruno Van Meenen]
110V-230V - remote driver included: driver fits through cutout hole of fixture -
NO (non-dimmable) - IP50 -
- WALL
1 x LED 0.96W (LED incl.) - 350mA - 114lm - 2700K - CRI >93
aperture : 25 x 45 mm - depth for driver behind fixture : min. 55 mm
230V - remote driver included: driver fits through cutout hole of fixture, except DALI -
1-10 (1-10V) or PU (PUSH-DIM) or DA (DALI) dimmable - IP50 -
- WALL
1 x LED 1.38W (LED incl.) - 500mA - 157lm - 2700K - CRI >93
aperture : 25 x 55 mm - depth for driver behind fixture : min. 72 mm
colors: black, white, alu & bronze
110V-230V - driver included in base - NO (non-dimmable) - IP50
1 x LED 0.96W (LED incl.) - 350mA - 114lm - 2700K - CRI >93
colors: black, white, alu & bronze
90
60
60
Ø 25
200/400/750
Scar-Led 1FDS built-in 60
90
100
Ø 25
200/400/750
Scar-Led 1FDS built-up
Find more options on page 226-228
ON/OFF
SWITCH
