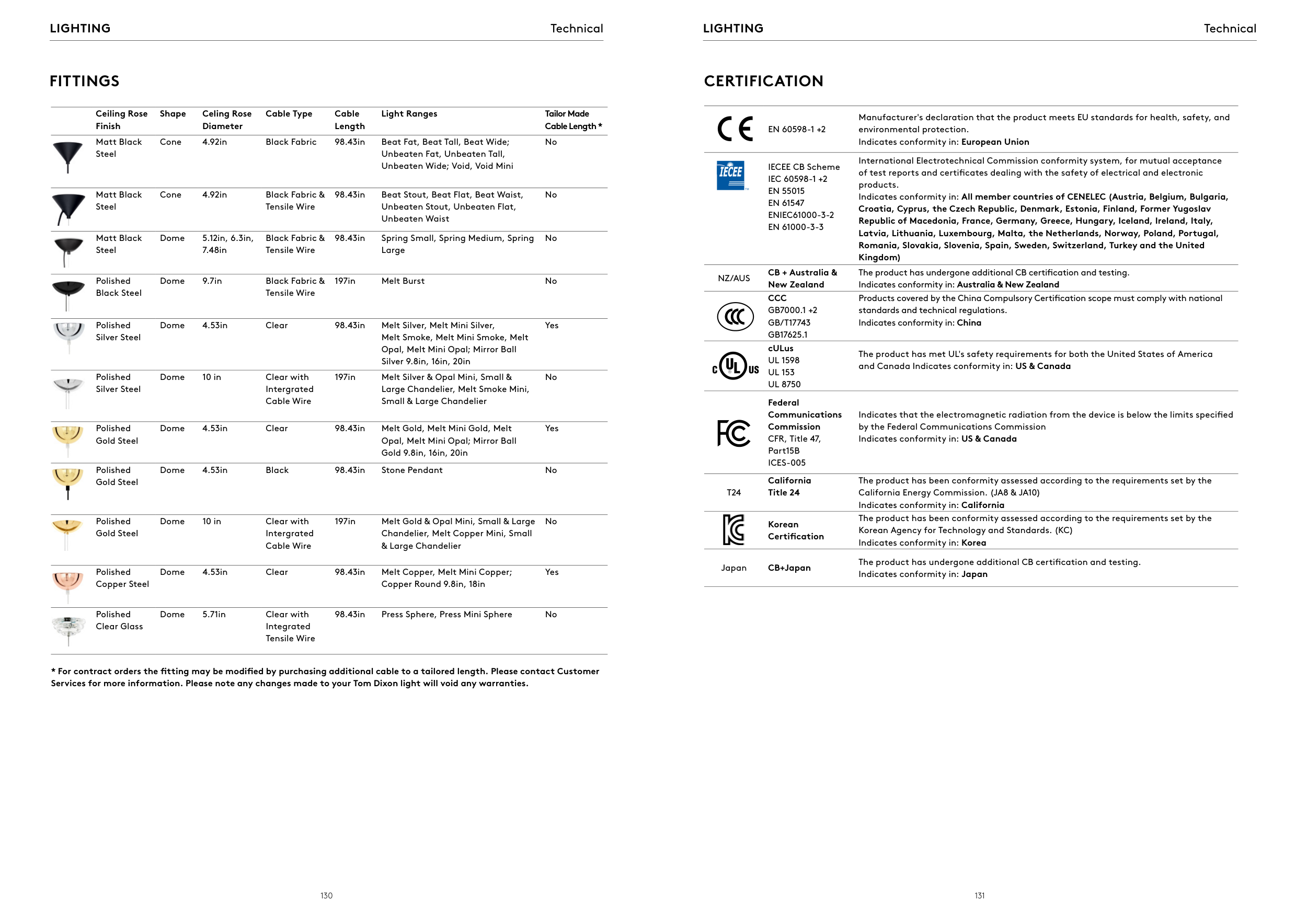

FITTINGS
Ceiling Rose
Finish
Shape
Celing Rose
Diameter
Cable Type
Cable
Length
Light Ranges
Tailor Made
Cable Length *
Matt Black
Steel
Cone
4.92in
Black Fabric
98.43in
Beat Fat, Beat Tall, Beat Wide;
Unbeaten Fat, Unbeaten Tall,
Unbeaten Wide; Void, Void Mini
No
Matt Black
Steel
Cone
4.92in
Black Fabric &
Tensile Wire
98.43in
Beat Stout, Beat Flat, Beat Waist,
Unbeaten Stout, Unbeaten Flat,
Unbeaten Waist
No
Matt Black
Steel
Dome
5.12in, 6.3in,
7.48in
Black Fabric &
Tensile Wire
98.43in
Spring Small, Spring Medium, Spring
Large
No
Polished
Black Steel
Dome
9.7in
Black Fabric &
Tensile Wire
197in
Melt Burst
No
Polished
Silver Steel
Dome
4.53in
Clear
98.43in
Melt Silver, Melt Mini Silver,
Melt Smoke, Melt Mini Smoke, Melt
Opal, Melt Mini Opal; Mirror Ball
Silver 9.8in, 16in, 20in
Yes
Polished
Silver Steel
Dome
10 in
Clear with
Intergrated
Cable Wire
197in
Melt Silver & Opal Mini, Small &
Large Chandelier, Melt Smoke Mini,
Small & Large Chandelier
No
Polished
Gold Steel
Dome
4.53in
Clear
98.43in
Melt Gold, Melt Mini Gold, Melt
Opal, Melt Mini Opal; Mirror Ball
Gold 9.8in, 16in, 20in
Yes
Polished
Gold Steel
Dome
4.53in
Black
98.43in
Stone Pendant
No
Polished
Gold Steel
Dome
10 in
Clear with
Intergrated
Cable Wire
197in
Melt Gold & Opal Mini, Small & Large
Chandelier, Melt Copper Mini, Small
& Large Chandelier
No
Polished
Copper Steel
Dome
4.53in
Clear
98.43in
Melt Copper, Melt Mini Copper;
Copper Round 9.8in, 18in
Yes
Polished
Clear Glass
Dome
5.71in
Clear with
Integrated
Tensile Wire
98.43in
Press Sphere, Press Mini Sphere
No
* For contract orders the fitting may be modified by purchasing additional cable to a tailored length. Please contact Customer
Services for more information. Please note any changes made to your Tom Dixon light will void any warranties.
EN 60598-1 +2
Manufacturer's declaration that the product meets EU standards for health, safety, and
environmental protection.
Indicates conformity in: European Union
IECEE CB Scheme
IEC 60598-1 +2
EN 55015
EN 61547
ENIEC61000-3-2
EN 61000-3-3
International Electrotechnical Commission conformity system, for mutual acceptance
of test reports and certificates dealing with the safety of electrical and electronic
products.
Indicates conformity in: All member countries of CENELEC (Austria, Belgium, Bulgaria,
Croatia, Cyprus, the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav
Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United
Kingdom)
NZ/AUS
CB + Australia &
New Zealand
The product has undergone additional CB certification and testing.
Indicates conformity in: Australia & New Zealand
CCC
GB7000.1 +2
GB/T17743
GB17625.1
Products covered by the China Compulsory Certification scope must comply with national
standards and technical regulations.
Indicates conformity in: China
cULus
UL 1598
UL 153
UL 8750
The product has met UL's safety requirements for both the United States of America
and Canada Indicates conformity in: US & Canada
Federal
Communications
Commission
CFR, Title 47,
Part15B
ICES-005
Indicates that the electromagnetic radiation from the device is below the limits specified
by the Federal Communications Commission
Indicates conformity in: US & Canada
T24
California
Title 24
The product has been conformity assessed according to the requirements set by the
California Energy Commission. (JA8 & JA10)
Indicates conformity in: California
Korean
Certification
The product has been conformity assessed according to the requirements set by the
Korean Agency for Technology and Standards. (KC)
Indicates conformity in: Korea
Japan
CB+Japan
The product has undergone additional CB certification and testing.
Indicates conformity in: Japan
CERTIFICATION
