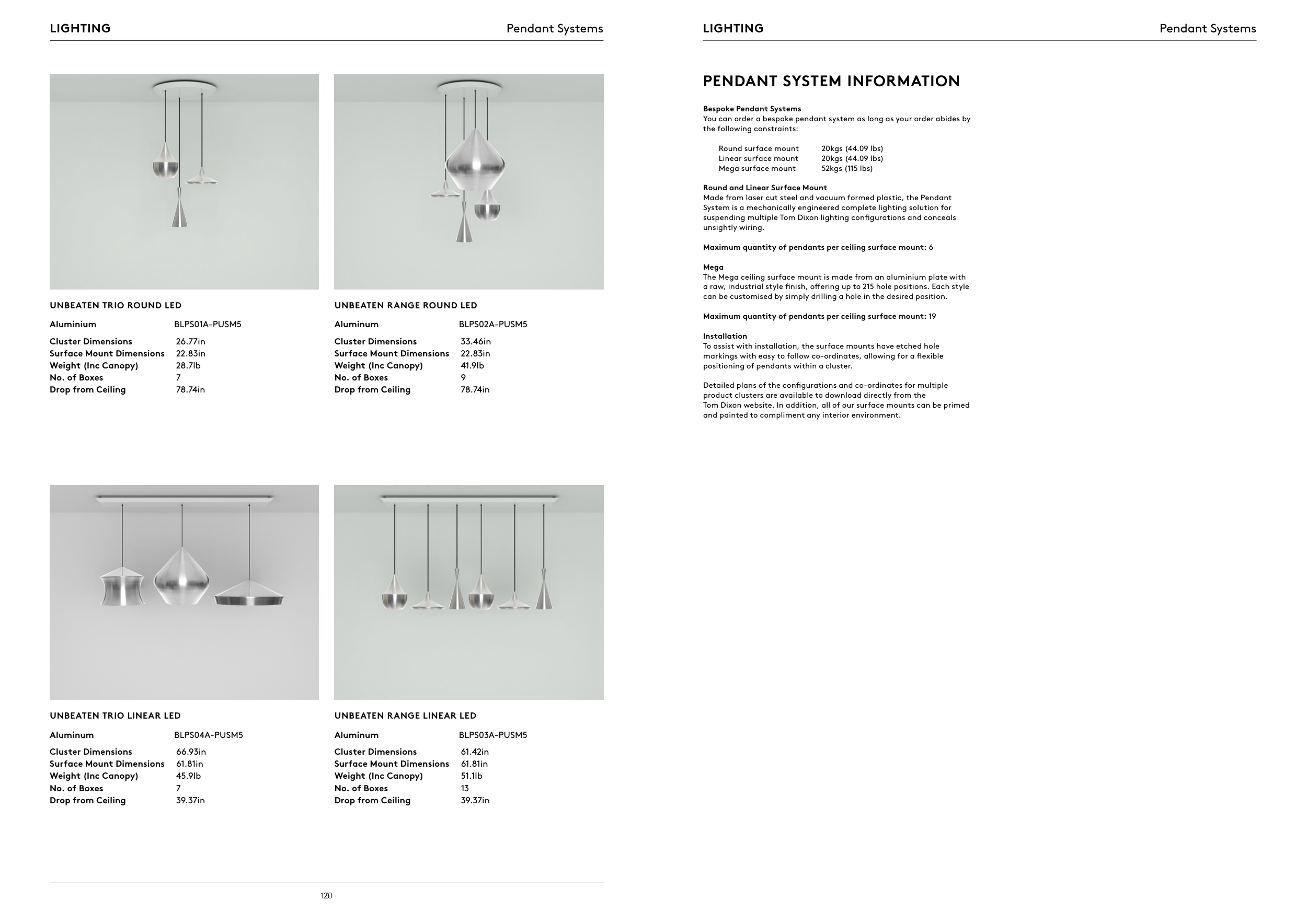

UNBEATEN TRIO ROUND LED
Aluminium
BLPS01A-PUSM5
Cluster Dimensions
26.77in
Surface Mount Dimensions 22.83in
Weight (Inc Canopy)
28.7lb
No. of Boxes
7
Drop from Ceiling
78.74in
UNBEATEN RANGE ROUND LED
Aluminum
BLPS02A-PUSM5
Cluster Dimensions
33.46in
Surface Mount Dimensions 22.83in
Weight (Inc Canopy)
41.9lb
No. of Boxes
9
Drop from Ceiling
78.74in
UNBEATEN TRIO LINEAR LED
Aluminum
BLPS04A-PUSM5
Cluster Dimensions
66.93in
Surface Mount Dimensions 61.81in
Weight (Inc Canopy)
45.9lb
No. of Boxes
7
Drop from Ceiling
39.37in
UNBEATEN RANGE LINEAR LED
Aluminum
BLPS03A-PUSM5
Cluster Dimensions
61.42in
Surface Mount Dimensions 61.81in
Weight (Inc Canopy)
51.1lb
No. of Boxes
13
Drop from Ceiling
39.37in
6
LIGHTING
Pendant Systems
PENDANT SYSTEM INFORMATION
Bespoke Pendant Systems
You can order a bespoke pendant system as long as your order abides by
the following constraints:
Round surface mount
20kgs (44.09 lbs)
Linear surface mount
20kgs (44.09 lbs)
Mega surface mount
52kgs (115 lbs)
Round and Linear Surface Mount
Made from laser cut steel and vacuum formed plastic, the Pendant
System is a mechanically engineered complete lighting solution for
suspending multiple Tom Dixon lighting configurations and conceals
unsightly wiring.
Maximum quantity of pendants per ceiling surface mount: 6
Mega
The Mega ceiling surface mount is made from an aluminium plate with
a raw, industrial style finish, offering up to 215 hole positions. Each style
can be customised by simply drilling a hole in the desired position.
Maximum quantity of pendants per ceiling surface mount: 19
Installation
To assist with installation, the surface mounts have etched hole
markings with easy to follow co-ordinates, allowing for a flexible
positioning of pendants within a cluster.
Detailed plans of the configurations and co-ordinates for multiple
product clusters are available to download directly from the
Tom Dixon website. In addition, all of our surface mounts can be primed
and painted to compliment any interior environment.
