25
16,5
49
39
19
115
30
Sliding track with covering valances in satin silver or matt black aluminium, or built-
in tracks.
Standard aluminum profile finish: satin silver or matt black.
MA-09 standard handle made of extruded aluminum, finish
coordinated with the door profiles.
Door’s guide detail
(lenght:40 mm)
Profile
section
Handle type MA09

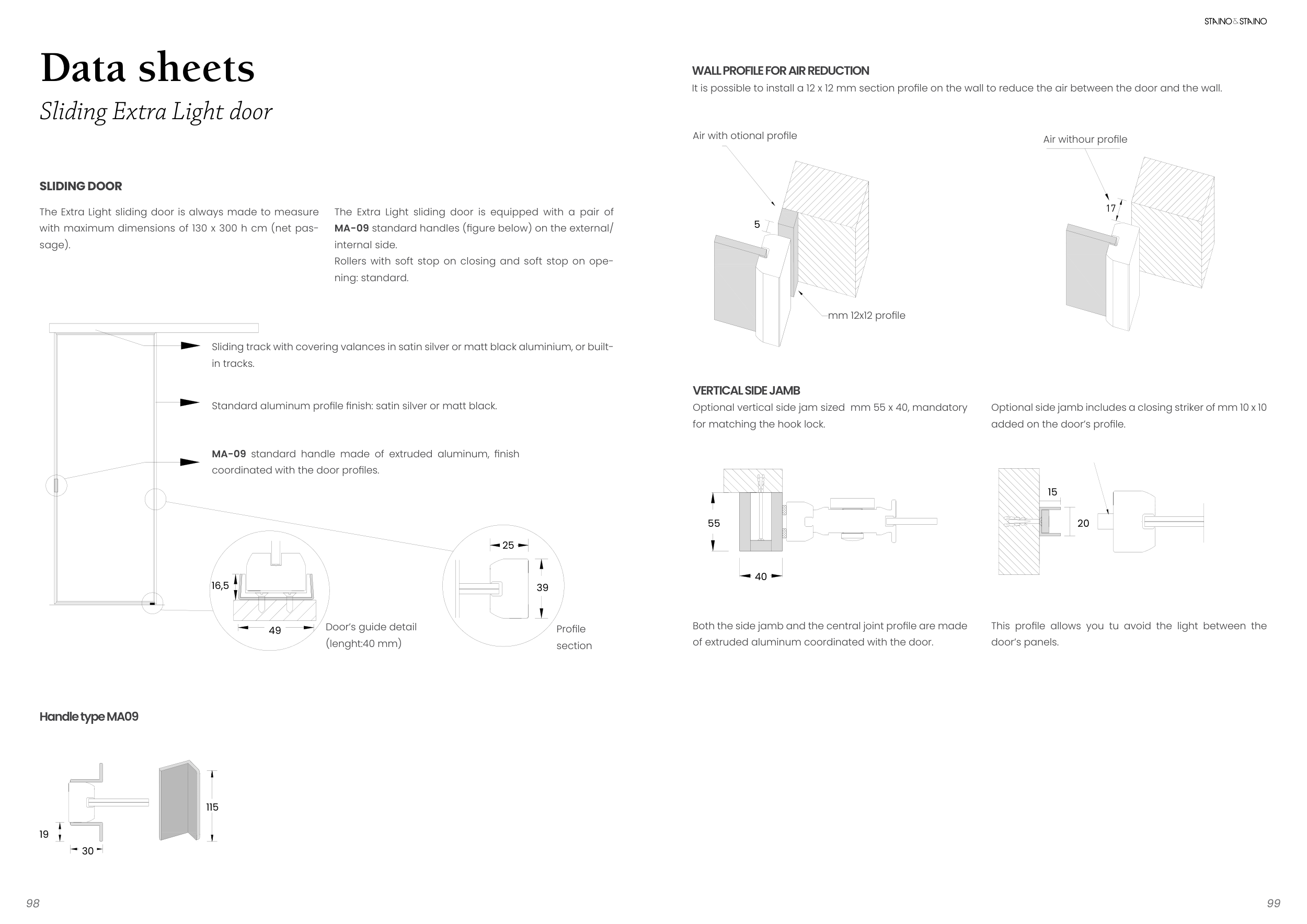

Sliding Extra Light door
Data sheets
The Extra Light sliding door is equipped with a pair of
MA-09 standard handles (figure below) on the external/
internal side.
Rollers with soft stop on closing and soft stop on ope-
ning: standard.
The Extra Light sliding door is always made to measure
with maximum dimensions of 130 x 300 h cm (net pas-
sage).
SLIDING DOOR
15
20
56
86
55
40
55
40
17
profilo
12x12
55
VERTICAL SIDE JAMB
Optional vertical side jam sized mm 55 x 40, mandatory
for matching the hook lock.
Optional side jamb includes a closing striker of mm 10 x 10
added on the door’s profile.
WALL PROFILE FOR AIR REDUCTION
It is possible to install a 12 x 12 mm section profile on the wall to reduce the air between the door and the wall.
Air with otional profile
Air withour profile
mm 12x12 profile
Both the side jamb and the central joint profile are made
of extruded aluminum coordinated with the door.
This profile allows you tu avoid the light between the
door’s panels.
99
98
