Honeycomb door covered in MDF with internal reinforcements in the
aluminum panel. Door available with primer or already lacquered.
The hardware is already recessed into the upper crosspiece of the wall frame.
Lower hinge
sizes
Standard thicknesses to choose between 10.2
and 10.7 cm.
Thickness available on request 12.5 cm.
EXTERNAL FRAME SIZE
Net passage +120 mm W and +45 mm H
PULL OPENING DETAIL
PUSH OPENING DETAIL
(the hinges always remain in satin chrome finish)
• PA02 matt white - PA03 matte black
• PA05 bronze - PA09 corten - PA11 dark bronze‘‘new’’ - PA13 sandblasted iron grey
• PA07 white oak - RAL matt sample
• Protective film for wall frame finishing
OPTIONAL ALUMINUM FINISHES FOR THE WALL-MOUNTED FRAME:
Milling for insertion of the recessed skirting board according to customer specifications.
See dedicated section from pag. 52 to pag. 57
SPECIAL PROCESSING FOR THE INSERTION OF THE RECESSED SKIRTING BOARD:
Standard internal and external flush wall
frame, in satin silver aluminum compa-
tible with masonry or plasterboard walls.
The frame can be mounted by pulling
or pushing.
Example:
Right to pull = Left to push

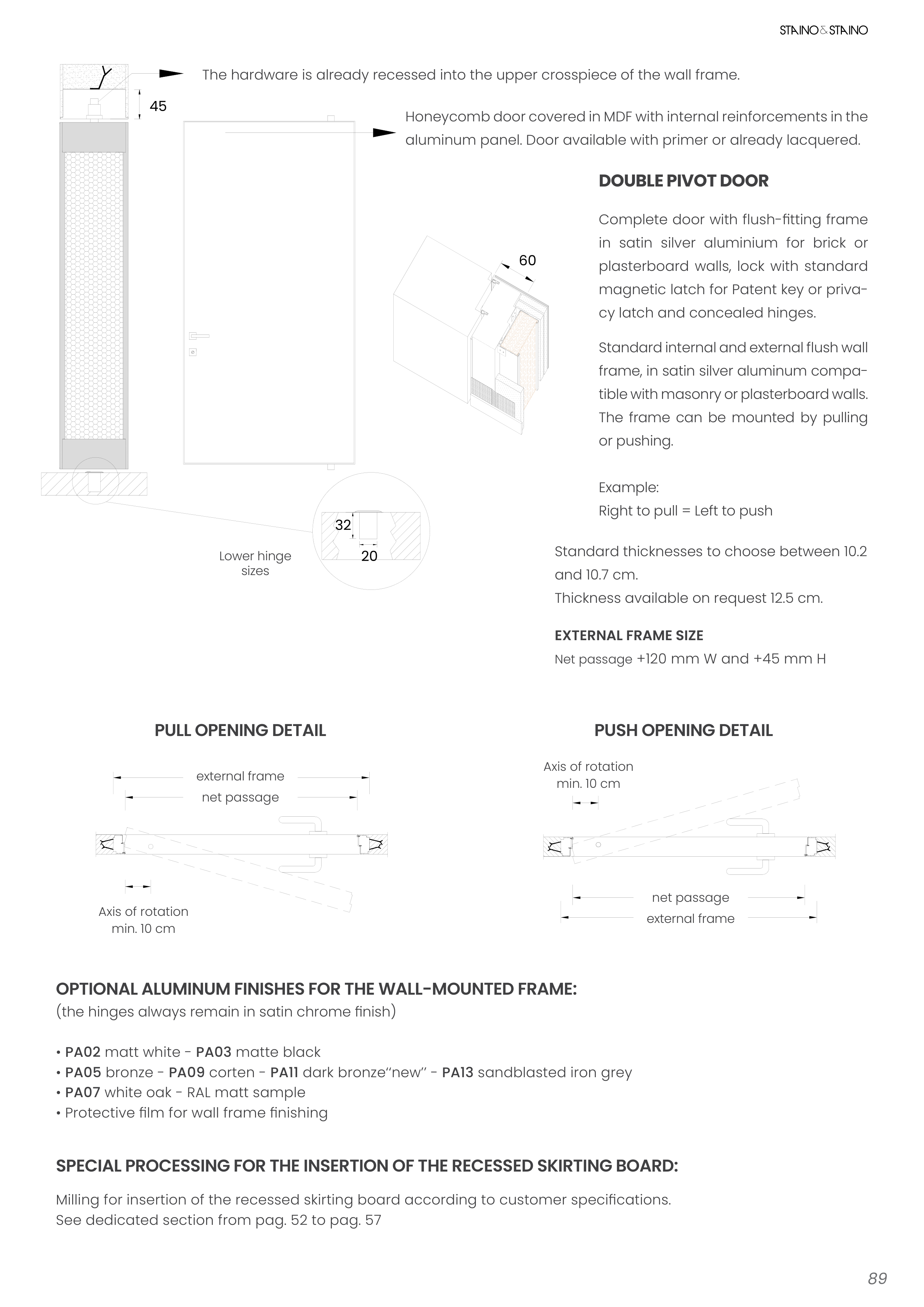

Complete door with flush-fitting frame
in satin silver aluminium for brick or
plasterboard walls, lock with standard
magnetic latch for Patent key or priva-
cy latch and concealed hinges.
DOUBLE PIVOT DOOR
external frame
net passage
external frame
net passage
Axis of rotation
min. 10 cm
Axis of rotation
min. 10 cm
