50
53
53 mm thick honeycomb door, covered in MDF.
For sizes greater than 220 cm in H, the inside of the door is stiffened by
aluminum reinforcements.

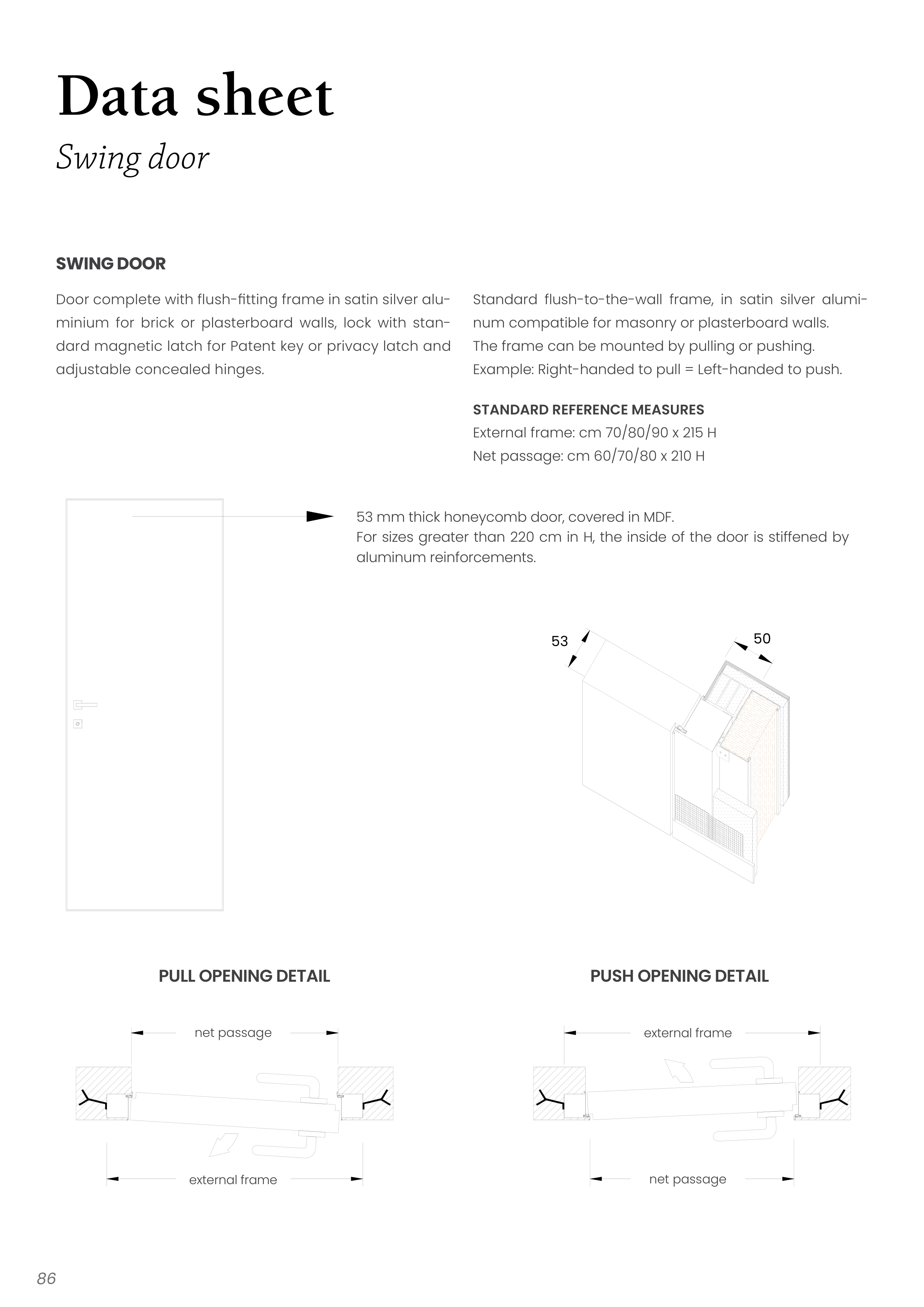

Data sheet
Swing door
Standard flush-to-the-wall frame, in satin silver alumi-
num compatible for masonry or plasterboard walls.
The frame can be mounted by pulling or pushing.
Example: Right-handed to pull = Left-handed to push.
Door complete with flush-fitting frame in satin silver alu-
minium for brick or plasterboard walls, lock with stan-
dard magnetic latch for Patent key or privacy latch and
adjustable concealed hinges.
SWING DOOR
STANDARD REFERENCE MEASURES
External frame: cm 70/80/90 x 215 H
Net passage: cm 60/70/80 x 210 H
PULL OPENING DETAIL
PUSH OPENING DETAIL
external frame
net passage
external frame
net passage
