4.
5.
2.
5.
6.
7.
3.
10.
6.
3.
2.
1.
4.
10.
8.
1.
9.
9.
4.
5.
1.
8.
4.
1.
3.
7.
9.
3.
2.
6.
3.
7.
5.
for frame extension

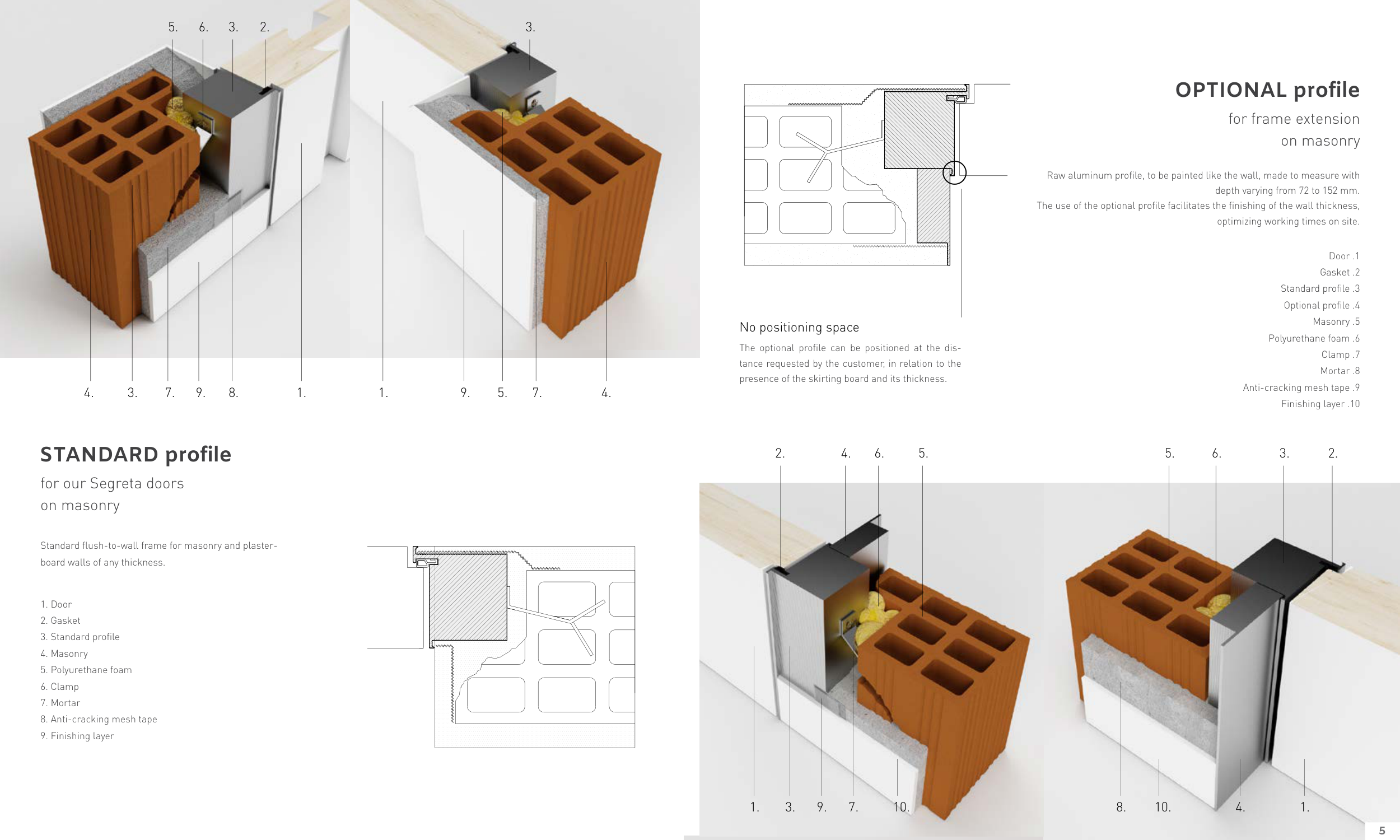

OPTIONAL profile
Raw aluminum profile, to be painted like the wall, made to measure with
depth varying from 72 to 152 mm.
The use of the optional profile facilitates the finishing of the wall thickness,
optimizing working times on site.
No positioning space
The optional profile can be positioned at the dis-
tance requested by the customer, in relation to the
presence of the skirting board and its thickness.
Door .1
Gasket .2
Standard profile .3
Optional profile .4
Masonry .5
Polyurethane foam .6
Clamp .7
Mortar .8
Anti-cracking mesh tape .9
Finishing layer .10
on masonry
for our Segreta doors
STANDARD profile
Standard flush-to-wall frame for masonry and plaster-
board walls of any thickness.
1. Door
2. Gasket
3. Standard profile
4. Masonry
5. Polyurethane foam
6. Clamp
7. Mortar
8. Anti-cracking mesh tape
9. Finishing layer
on masonry
5
