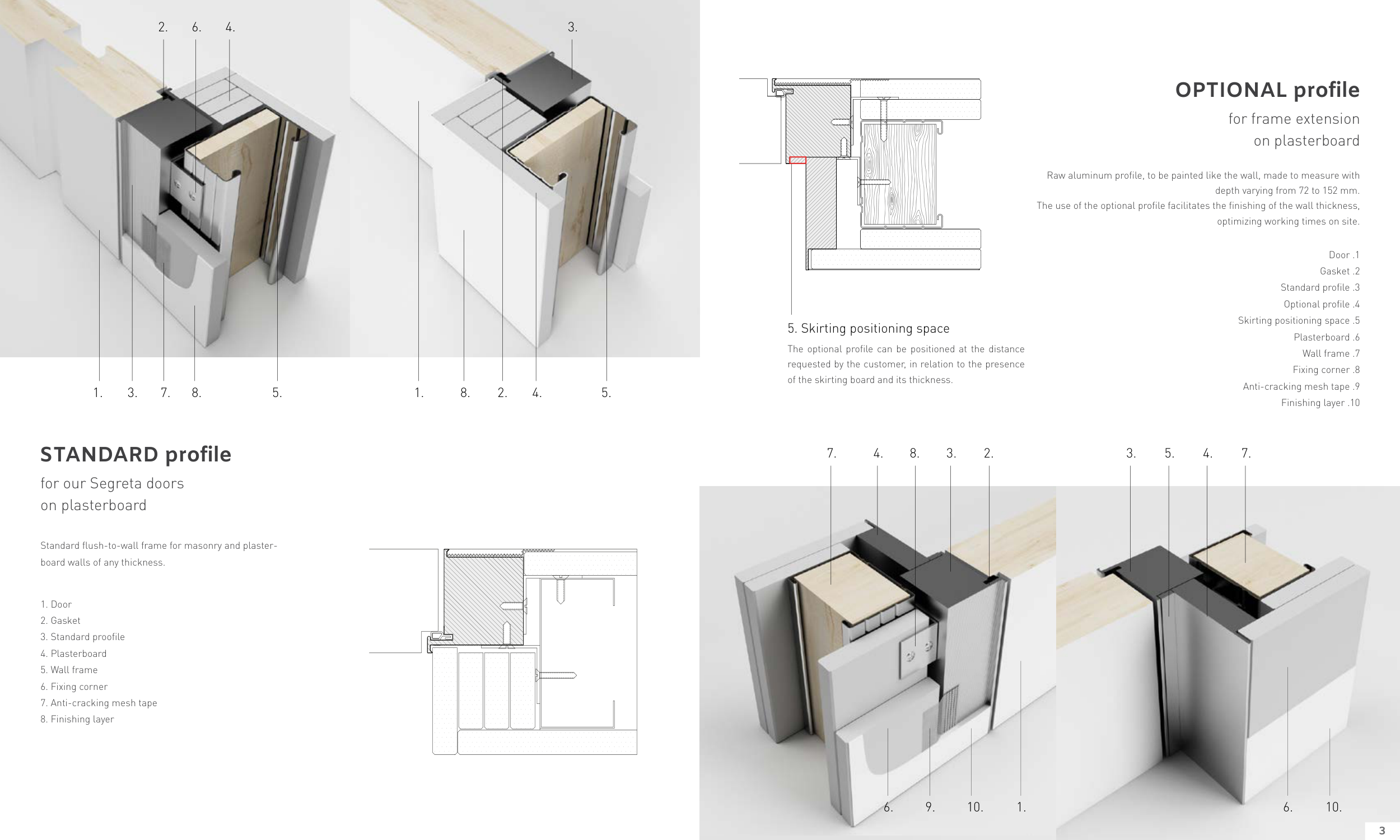

for frame extension
OPTIONAL profile
Raw aluminum profile, to be painted like the wall, made to measure with
depth varying from 72 to 152 mm.
The use of the optional profile facilitates the finishing of the wall thickness,
optimizing working times on site.
Door .1
Gasket .2
Standard profile .3
Optional profile .4
Skirting positioning space .5
Plasterboard .6
Wall frame .7
Fixing corner .8
Anti-cracking mesh tape .9
Finishing layer .10
on plasterboard
5. Skirting positioning space
The optional profile can be positioned at the distance
requested by the customer, in relation to the presence
of the skirting board and its thickness.
for our Segreta doors
STANDARD profile
Standard flush-to-wall frame for masonry and plaster-
board walls of any thickness.
1. Door
2. Gasket
3. Standard proofile
4. Plasterboard
5. Wall frame
6. Fixing corner
7. Anti-cracking mesh tape
8. Finishing layer
on plasterboard
