21
13
8
10
21
13
20
15

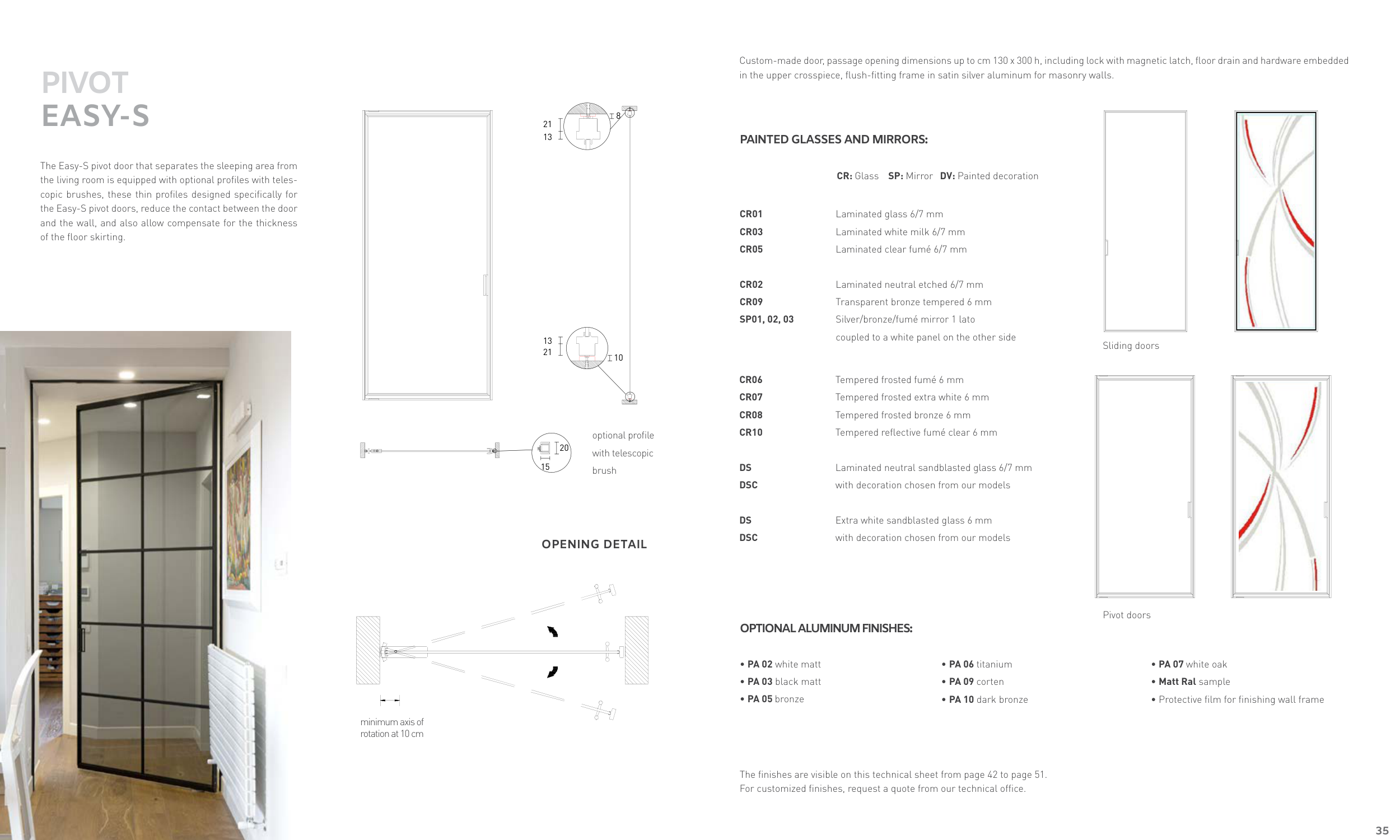

PIVOT
EASY-S
The Easy-S pivot door that separates the sleeping area from
the living room is equipped with optional profiles with teles-
copic brushes, these thin profiles designed specifically for
the Easy-S pivot doors, reduce the contact between the door
and the wall, and also allow compensate for the thickness
of the floor skirting.
minimum axis of
rotation at 10 cm
OPENING DETAIL
optional profile
with telescopic
brush
Custom-made door, passage opening dimensions up to cm 130 x 300 h, including lock with magnetic latch, floor drain and hardware embedded
in the upper crosspiece, flush-fitting frame in satin silver aluminum for masonry walls.
PAINTED GLASSES AND MIRRORS:
CR01
CR03
CR05
CR02
CR09
SP01, 02, 03
Laminated glass 6/7 mm
Laminated white milk 6/7 mm
Laminated clear fumé 6/7 mm
Laminated neutral etched 6/7 mm
Transparent bronze tempered 6 mm
Silver/bronze/fumé mirror 1 lato
coupled to a white panel on the other side
OPTIONAL ALUMINUM FINISHES:
• PA 02 white matt
• PA 03 black matt
• PA 05 bronze
• PA 06 titanium
• PA 09 corten
• PA 10 dark bronze
• PA 07 white oak
• Matt Ral sample
• Protective film for finishing wall frame
The finishes are visible on this technical sheet from page 42 to page 51.
For customized finishes, request a quote from our technical office.
CR06
CR07
CR08
CR10
DS
DSC
DS
DSC
Tempered frosted fumé 6 mm
Tempered frosted extra white 6 mm
Tempered frosted bronze 6 mm
Tempered reflective fumé clear 6 mm
Laminated neutral sandblasted glass 6/7 mm
with decoration chosen from our models
Extra white sandblasted glass 6 mm
with decoration chosen from our models
Sliding doors
Pivot doors
CR: Glass SP: Mirror DV: Painted decoration
35
