170
30
39
13
8
16,5
49
45
55
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
72
80
106
88
50
106
133
95
178
150
223
185
117
162
207
80
80
80
106
106

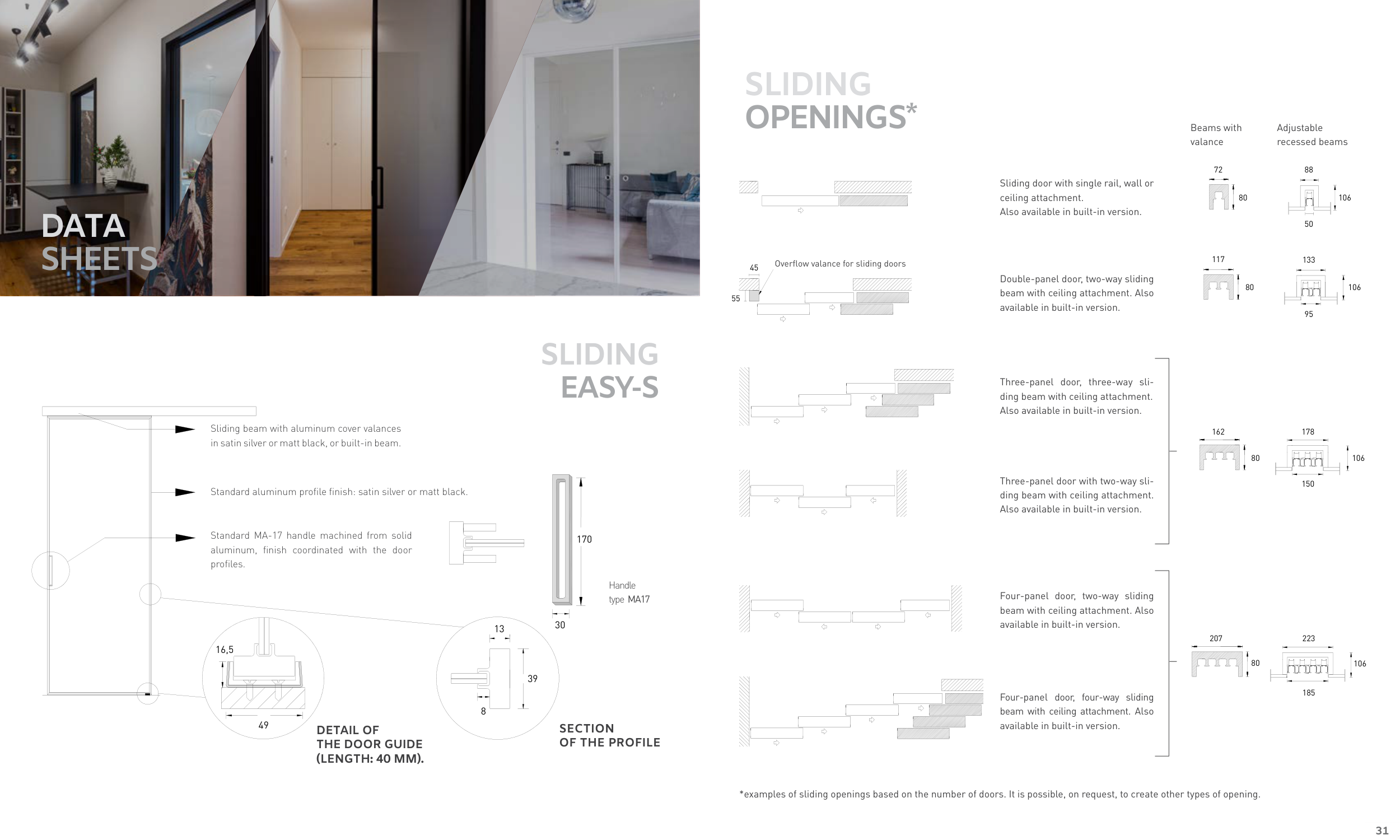

Sliding beam with aluminum cover valances
in satin silver or matt black, or built-in beam.
DATA
SHEETS
SLIDING
EASY-S
Standard aluminum profile finish: satin silver or matt black.
Standard MA-17 handle machined from solid
aluminum, finish coordinated with the door
profiles.
Handle
type MA17
DETAIL OF
THE DOOR GUIDE
(LENGTH: 40 MM).
SECTION
OF THE PROFILE
SLIDING
OPENINGS*
Overflow valance for sliding doors
Sliding door with single rail, wall or
ceiling attachment.
Also available in built-in version.
Double-panel door, two-way sliding
beam with ceiling attachment. Also
available in built-in version.
Three-panel door, three-way sli-
ding beam with ceiling attachment.
Also available in built-in version.
Three-panel door with two-way sli-
ding beam with ceiling attachment.
Also available in built-in version.
Four-panel door, two-way sliding
beam with ceiling attachment. Also
available in built-in version.
Four-panel door, four-way sliding
beam with ceiling attachment. Also
available in built-in version.
Beams with
valance
Adjustable
recessed beams
*examples of sliding openings based on the number of doors. It is possible, on request, to create other types of opening.
31
