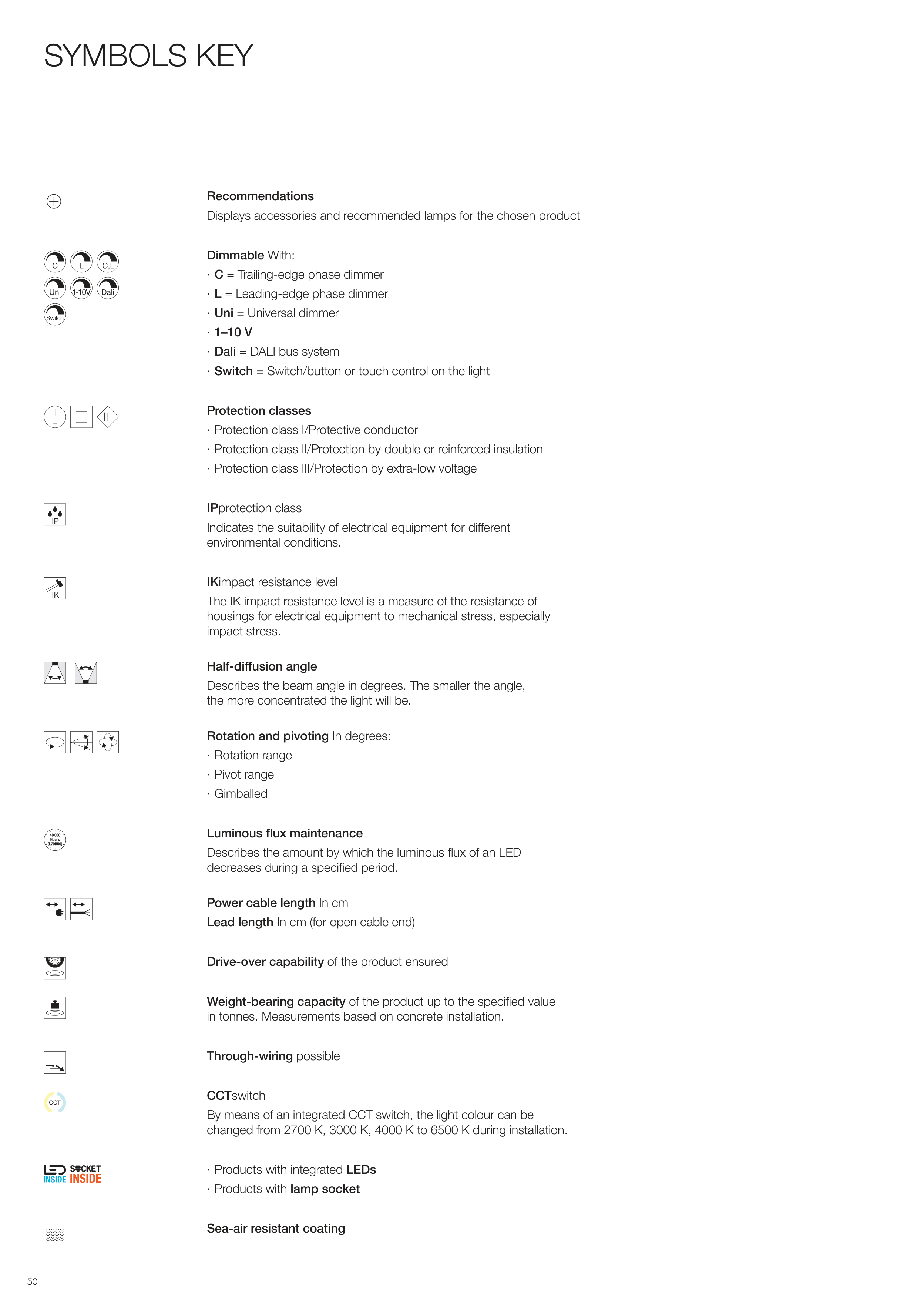

SYMBOLS KEY
Recommendations
Displays accessories and recommended lamps for the chosen product
Dimmable With:
· C = Trailing-edge phase dimmer
· L = Leading-edge phase dimmer
· Uni = Universal dimmer
· 1–10 V
· Dali = DALI bus system
· Switch = Switch/button or touch control on the light
Protection classes
· Protection class I/Protective conductor
· Protection class II/Protection by double or reinforced insulation
· Protection class III/Protection by extra-low voltage
IPprotection class
Indicates the suitability of electrical equipment for different
environmental conditions.
IKimpact resistance level
The IK impact resistance level is a measure of the resistance of
housings for electrical equipment to mechanical stress, especially
impact stress.
Half-diffusion angle
Describes the beam angle in degrees. The smaller the angle,
the more concentrated the light will be.
Rotation and pivoting In degrees:
· Rotation range
· Pivot range
· Gimballed
Luminous flux maintenance
Describes the amount by which the luminous flux of an LED
decreases during a specified period.
Power cable length In cm
Lead length In cm (for open cable end)
Drive-over capability of the product ensured
Weight-bearing capacity of the product up to the specified value
in tonnes. Measurements based on concrete installation.
Through-wiring possible
CCTswitch
By means of an integrated CCT switch, the light colour can be
changed from 2700 K, 3000 K, 4000 K to 6500 K during installation.
· Products with integrated LEDs
· Products with lamp socket
Sea-air resistant coating
