CRI
90
L80B10
IP20
CRI
90
L80B10
IP20

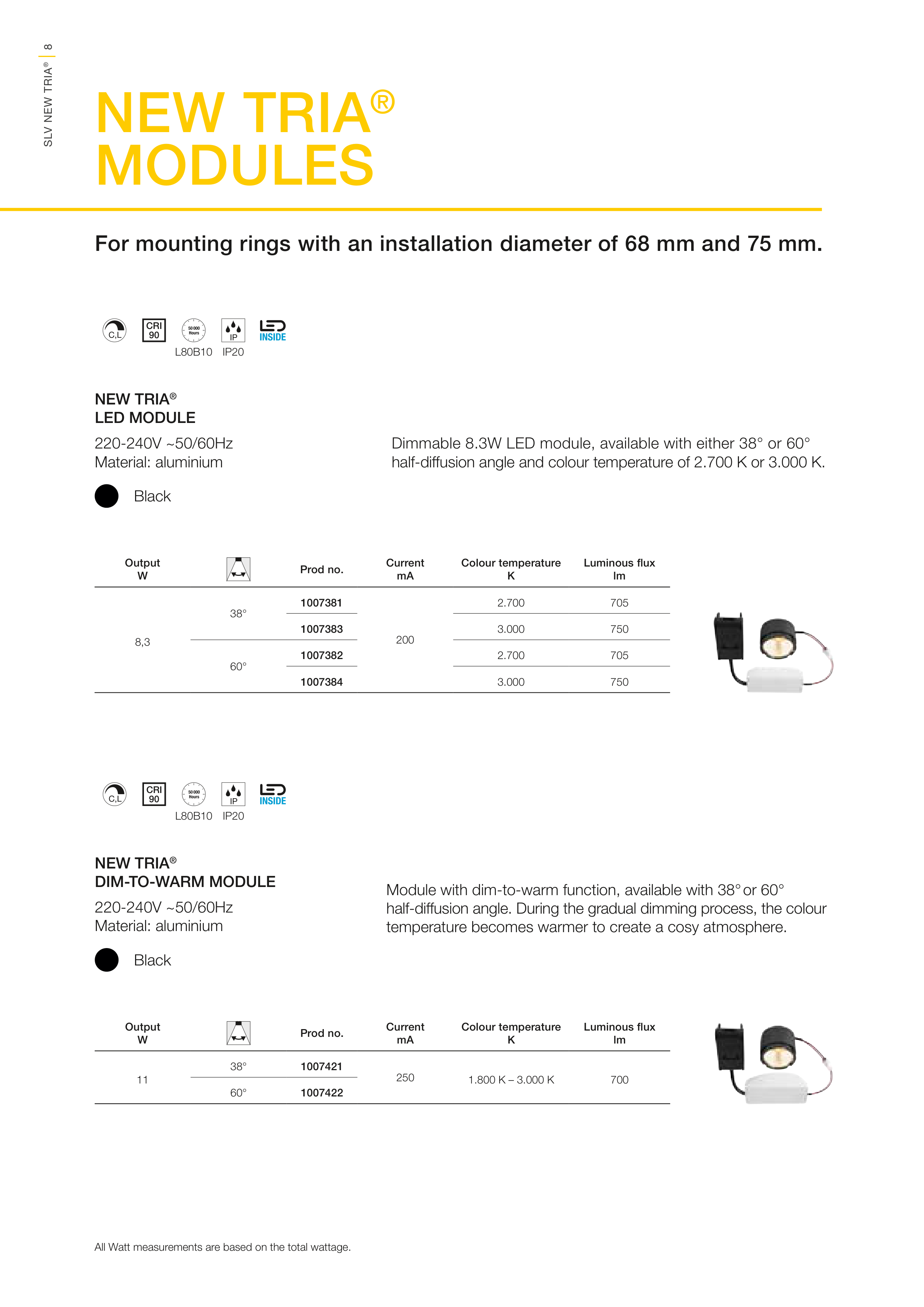

NEW TRIA®
MODULES
For mounting rings with an installation diameter of 68 mm and 75 mm.
Dimmable 8.3W LED module, available with either 38° or 60°
half-diffusion angle and colour temperature of 2.700 K or 3.000 K.
220-240V ~50/60Hz
Material: aluminium
NEW TRIA®
LED MODULE
Module with dim-to-warm function, available with 38° or 60°
half-diffusion angle. During the gradual dimming process, the colour
temperature becomes warmer to create a cosy atmosphere.
All Watt measurements are based on the total wattage.
220-240V ~50/60Hz
Material: aluminium
NEW TRIA®
DIM-TO-WARM MODULE
Output
W
Prod no.
Current
mA
Colour temperature
K
Luminous flux
lm
8,3
38°
1007381
200
2.700
705
1007383
3.000
750
60°
1007382
2.700
705
1007384
3.000
750
Output
W
Prod no.
Current
mA
Colour temperature
K
Luminous flux
lm
11
38°
1007421
250
1.800 K – 3.000 K
700
60°
1007422
Black
Black
SLV NEW TRIA® | 8
