INDOOR | PROFILES AND LED STRIPS

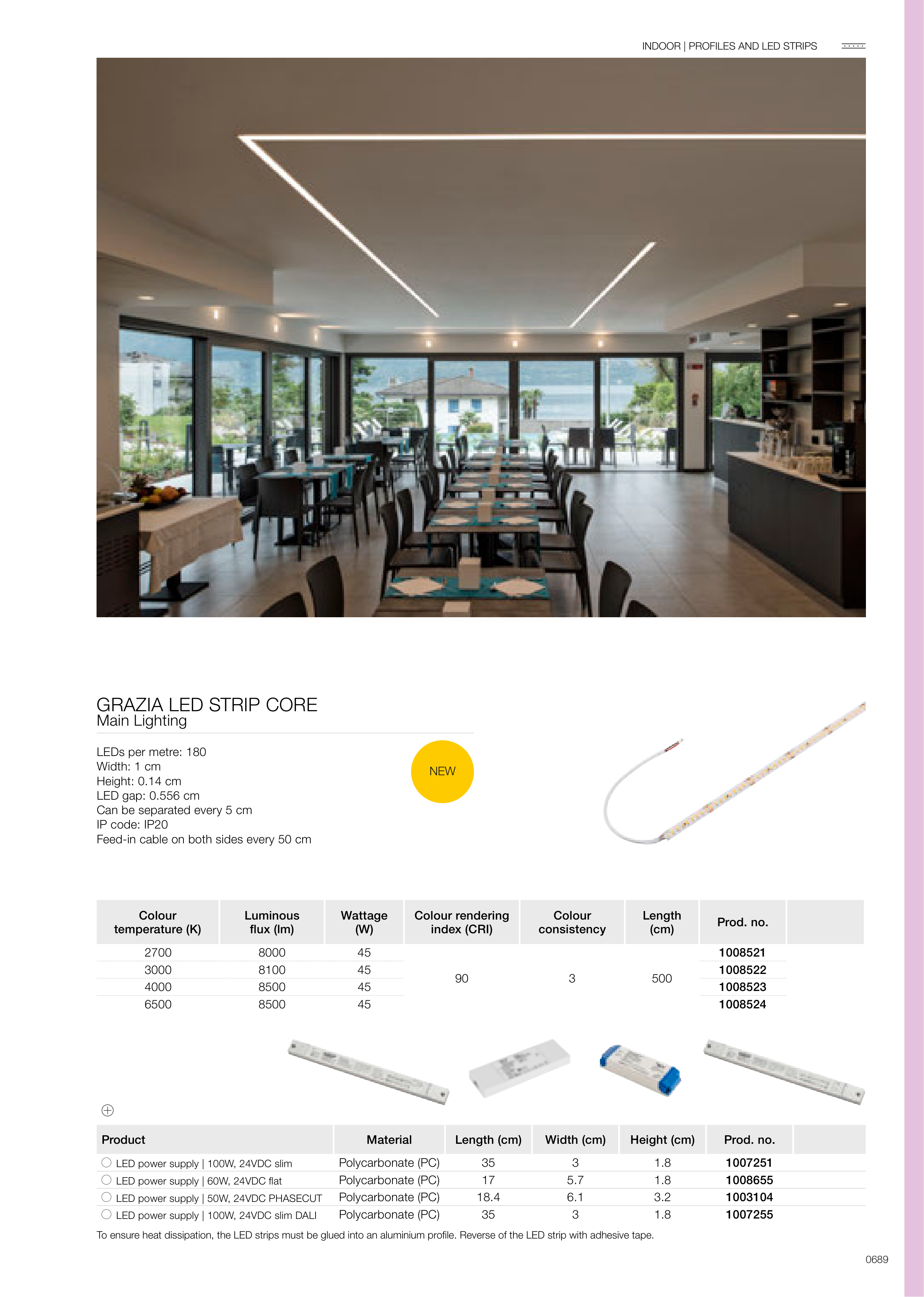

GRAZIA LED STRIP CORE
Main Lighting
LEDs per metre: 180
Width: 1 cm
Height: 0.14 cm
LED gap: 0.556 cm
Can be separated every 5 cm
IP code: IP20
Feed-in cable on both sides every 50 cm
Colour
temperature (K)
Luminous
flux (lm)
Wattage
(W)
Colour rendering
index (CRI)
Colour
consistency
Length
(cm)
Prod. no.
2700
8000
45
90
3
500
1008521
3000
8100
45
1008522
4000
8500
45
1008523
6500
8500
45
1008524
To ensure heat dissipation, the LED strips must be glued into an aluminium profile. Reverse of the LED strip with adhesive tape.
Product
Material
Length (cm)
Width (cm)
Height (cm)
Prod. no.
LED power supply | 100W, 24VDC slim
Polycarbonate (PC)
35
3
1.8
1007251
LED power supply | 60W, 24VDC flat
Polycarbonate (PC)
17
5.7
1.8
1008655
LED power supply | 50W, 24VDC PHASECUT
Polycarbonate (PC)
18.4
6.1
3.2
1003104
LED power supply | 100W, 24VDC slim DALI
Polycarbonate (PC)
35
3
1.8
1007255
