0371
0370
2,25 m
0
0
1
1
2
3
4
5
6
2
3
4
5
6
7
8
Z1
Z1
Z2
Z2
Z2
Z3
Z1
Z2
Z3

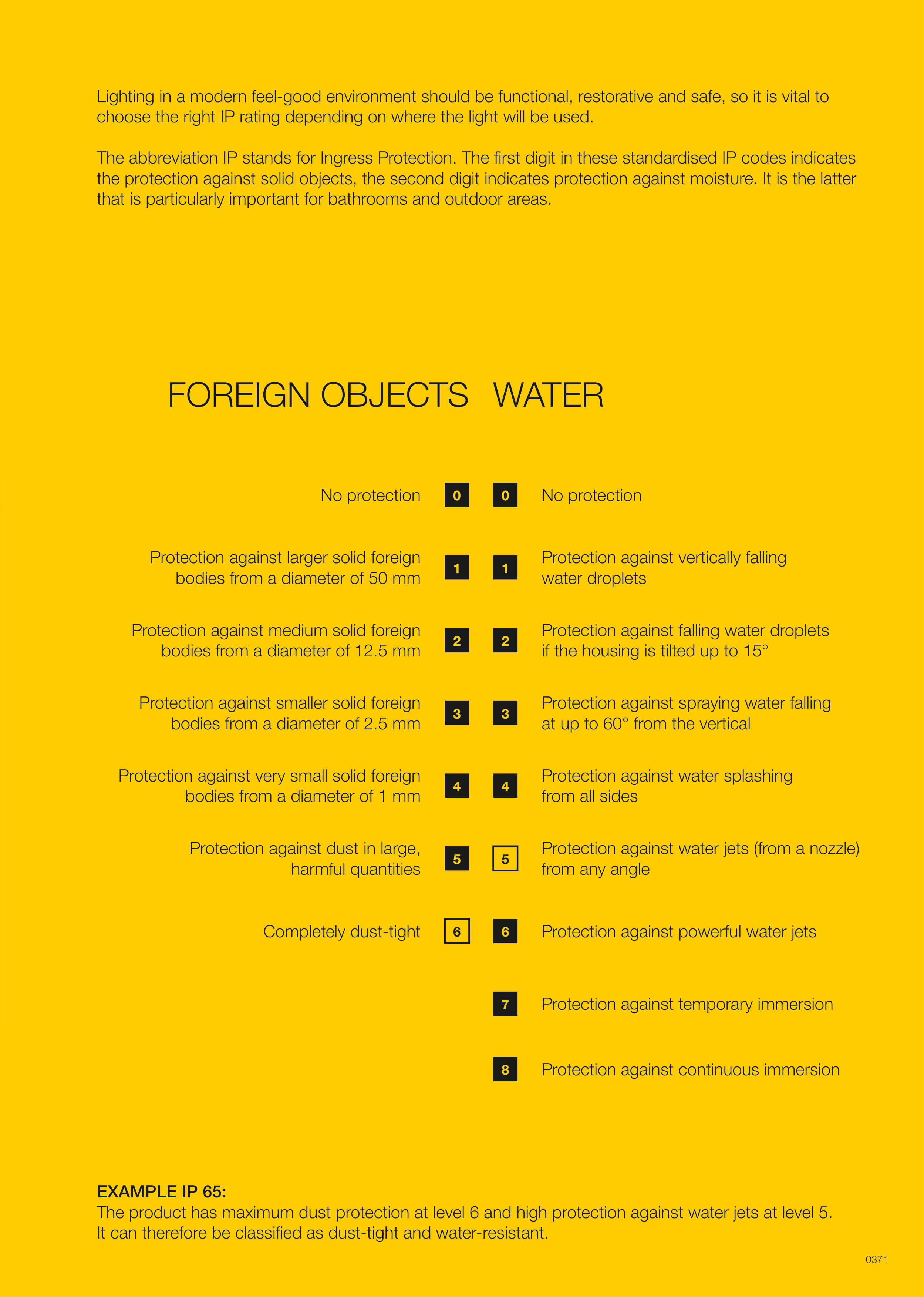

Lighting in a modern feel-good environment should be functional, restorative and safe, so it is vital to
choose the right IP rating depending on where the light will be used.
The abbreviation IP stands for Ingress Protection. The first digit in these standardised IP codes indicates
the protection against solid objects, the second digit indicates protection against moisture. It is the latter
that is particularly important for bathrooms and outdoor areas.
EXAMPLE IP 65:
The product has maximum dust protection at level 6 and high protection against water jets at level 5.
It can therefore be classified as dust-tight and water-resistant.
FOREIGN OBJECTS WATER
No protection
Protection against vertically falling
water droplets
Protection against falling water droplets
if the housing is tilted up to 15°
No protection
Protection against larger solid foreign
bodies from a diameter of 50 mm
Protection against medium solid foreign
bodies from a diameter of 12.5 mm
Protection against smaller solid foreign
bodies from a diameter of 2.5 mm
Protection against very small solid foreign
bodies from a diameter of 1 mm
Protection against dust in large,
harmful quantities
Completely dust-tight
Protection against spraying water falling
at up to 60° from the vertical
Protection against water splashing
from all sides
Protection against water jets (from a nozzle)
from any angle
Protection against powerful water jets
Protection against temporary immersion
Protection against continuous immersion
