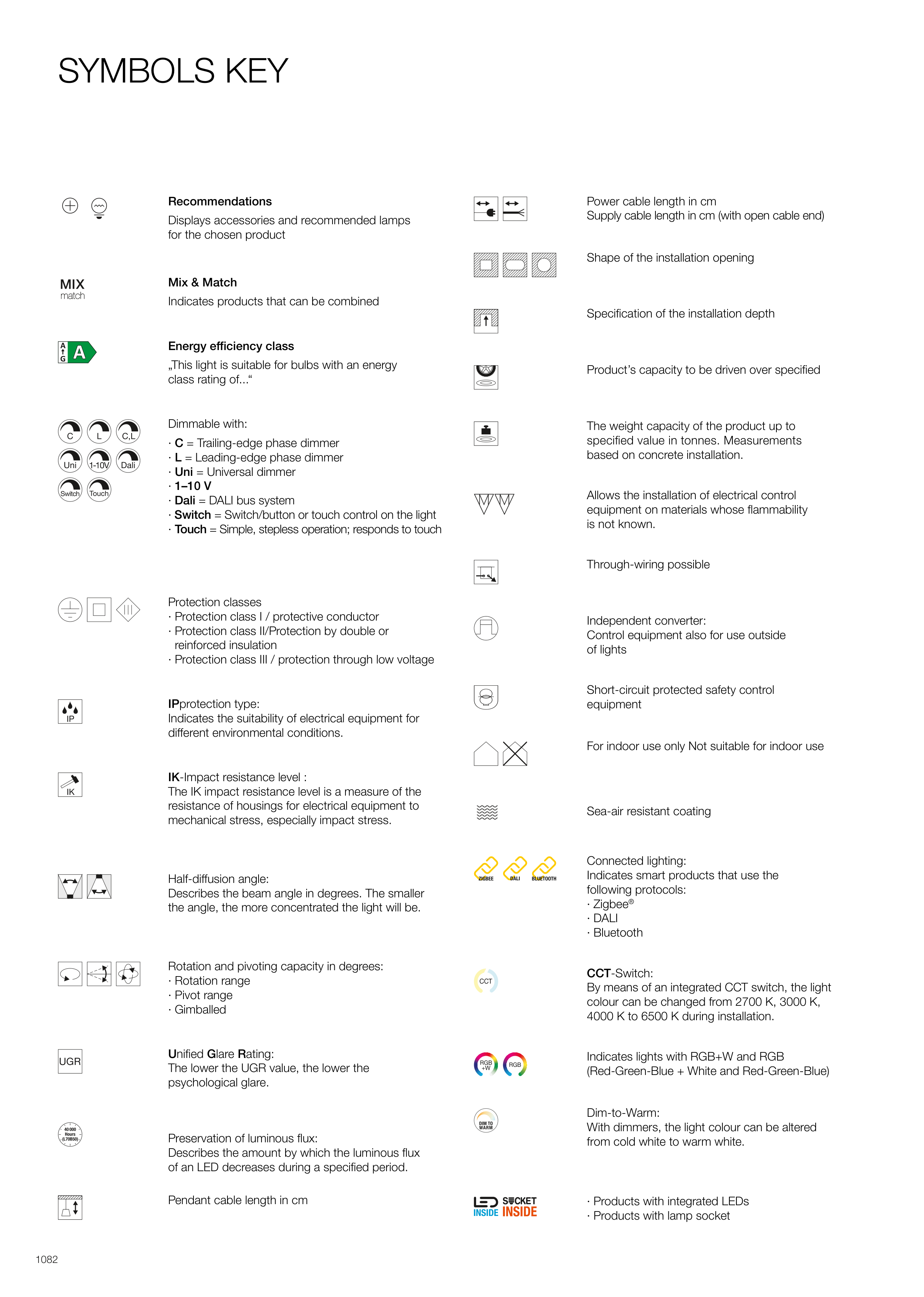

SYMBOLS KEY
Preservation of luminous flux:
Describes the amount by which the luminous flux
of an LED decreases during a specified period.
Pendant cable length in cm
Half-diffusion angle:
Describes the beam angle in degrees. The smaller
the angle, the more concentrated the light will be.
Rotation and pivoting capacity in degrees:
· Rotation range
· Pivot range
· Gimballed
Dimmable with:
· C = Trailing-edge phase dimmer
· L = Leading-edge phase dimmer
· Uni = Universal dimmer
· 1–10 V
· Dali = DALI bus system
· Switch = Switch/button or touch control on the light
· Touch = Simple, stepless operation; responds to touch
IPprotection type:
Indicates the suitability of electrical equipment for
different environmental conditions.
IK-Impact resistance level :
The IK impact resistance level is a measure of the
resistance of housings for electrical equipment to
mechanical stress, especially impact stress.
Protection classes
· Protection class I / protective conductor
· Protection class II/Protection by double or
reinforced insulation
· Protection class III / protection through low voltage
Unified Glare Rating:
The lower the UGR value, the lower the
psychological glare.
Mix & Match
Indicates products that can be combined
Energy efficiency class
„This light is suitable for bulbs with an energy
class rating of...“
Recommendations
Displays accessories and recommended lamps
for the chosen product
Power cable length in cm
Supply cable length in cm (with open cable end)
The weight capacity of the product up to
specified value in tonnes. Measurements
based on concrete installation.
Product’s capacity to be driven over specified
Specification of the installation depth
Shape of the installation opening
Independent converter:
Control equipment also for use outside
of lights
Through-wiring possible
Short-circuit protected safety control
equipment
For indoor use only Not suitable for indoor use
Allows the installation of electrical control
equipment on materials whose flammability
is not known.
CCT-Switch:
By means of an integrated CCT switch, the light
colour can be changed from 2700 K, 3000 K,
4000 K to 6500 K during installation.
Indicates lights with RGB+W and RGB
(Red-Green-Blue + White and Red-Green-Blue)
Dim-to-Warm:
With dimmers, the light colour can be altered
from cold white to warm white.
Connected lighting:
Indicates smart products that use the
following protocols:
· Zigbee®
· DALI
· Bluetooth
· Products with integrated LEDs
· Products with lamp socket
Sea-air resistant coating
