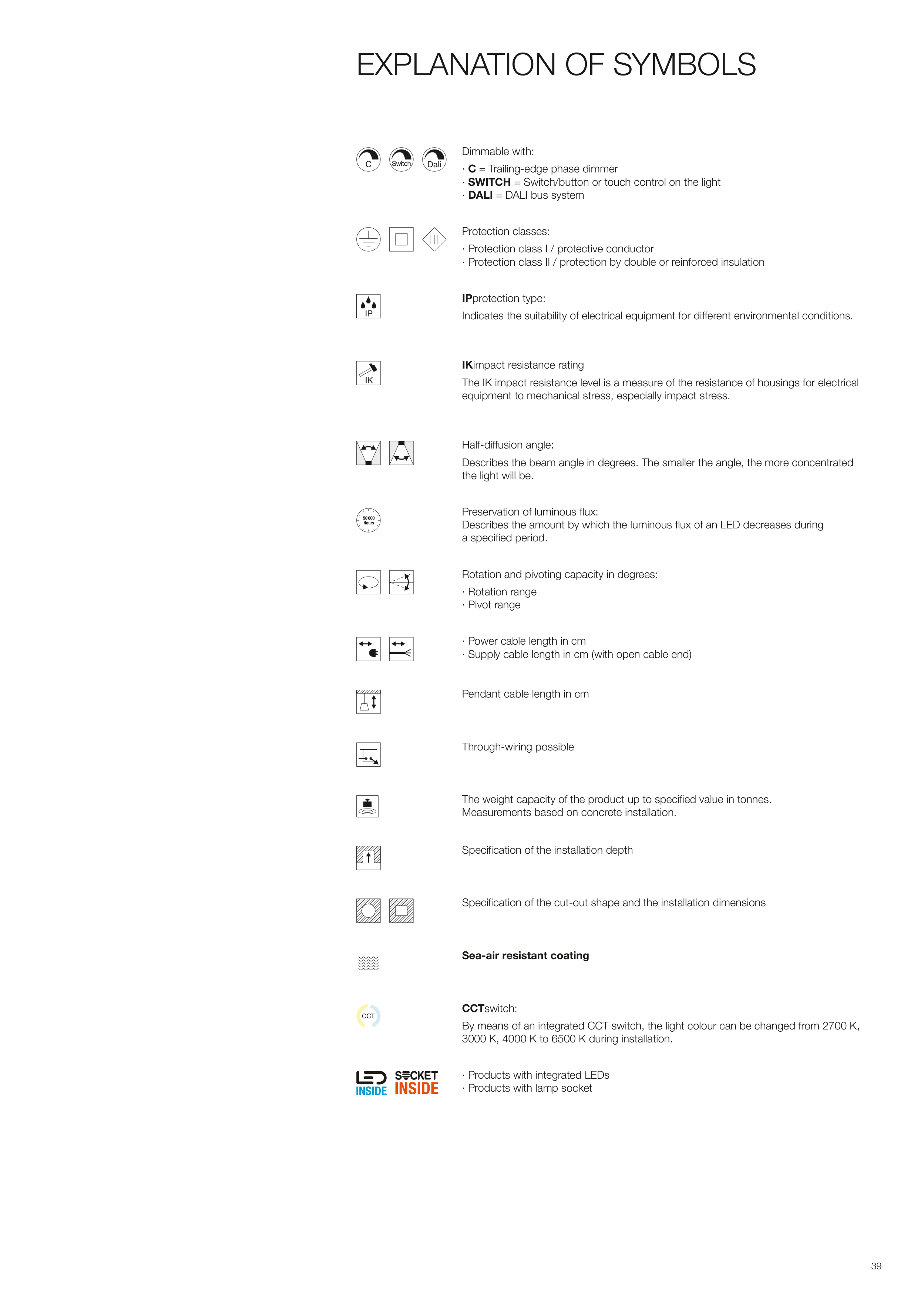

EXPLANATION OF SYMBOLS
Preservation of luminous flux:
Describes the amount by which the luminous flux of an LED decreases during
a specified period.
The weight capacity of the product up to specified value in tonnes.
Measurements based on concrete installation.
IPprotection type:
Indicates the suitability of electrical equipment for different environmental conditions.
IKimpact resistance rating
The IK impact resistance level is a measure of the resistance of housings for electrical
equipment to mechanical stress, especially impact stress.
· Power cable length in cm
· Supply cable length in cm (with open cable end)
Half-diffusion angle:
Describes the beam angle in degrees. The smaller the angle, the more concentrated
the light will be.
Rotation and pivoting capacity in degrees:
· Rotation range
· Pivot range
Dimmable with:
· C = Trailing-edge phase dimmer
· SWITCH = Switch/button or touch control on the light
· DALI = DALI bus system
Protection classes:
· Protection class I / protective conductor
· Protection class II / protection by double or reinforced insulation
Specification of the installation depth
CCTswitch:
By means of an integrated CCT switch, the light colour can be changed from 2700 K,
3000 K, 4000 K to 6500 K during installation.
· Products with integrated LEDs
· Products with lamp socket
Through-wiring possible
Pendant cable length in cm
Specification of the cut-out shape and the installation dimensions
Sea-air resistant coating
