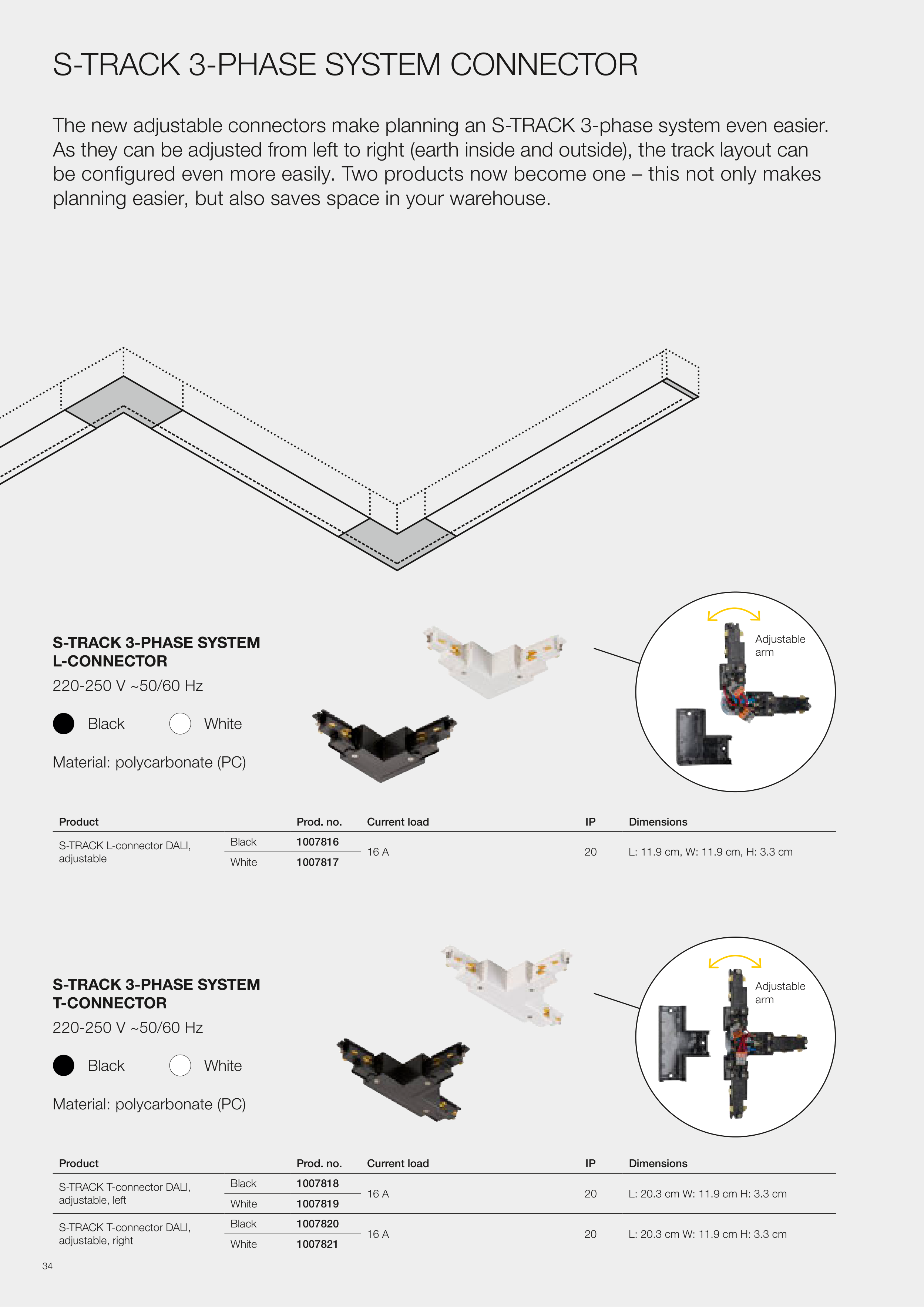

S-TRACK 3-PHASE SYSTEM CONNECTOR
The new adjustable connectors make planning an S-TRACK 3-phase system even easier.
As they can be adjusted from left to right (earth inside and outside), the track layout can
be configured even more easily. Two products now become one – this not only makes
planning easier, but also saves space in your warehouse.
S-TRACK 3-PHASE SYSTEM
L-CONNECTOR
Material: polycarbonate (PC)
Product
Prod. no.
Current load
IP
Dimensions
S-TRACK L-connector DALI,
adjustable
Black
1007816
16 A
20
L: 11.9 cm, W: 11.9 cm, H: 3.3 cm
White
1007817
Black
White
220-250 V ~50/60 Hz
S-TRACK 3-PHASE SYSTEM
T-CONNECTOR
Material: polycarbonate (PC)
220-250 V ~50/60 Hz
Product
Prod. no.
Current load
IP
Dimensions
S-TRACK T-connector DALI,
adjustable, left
Black
1007818
16 A
20
L: 20.3 cm W: 11.9 cm H: 3.3 cm
White
1007819
S-TRACK T-connector DALI,
adjustable, right
Black
1007820
16 A
20
L: 20.3 cm W: 11.9 cm H: 3.3 cm
White
1007821
Black
White
Adjustable
arm
Adjustable
arm
