TECHNICAL DETAILS
TECHNICAL DETAILS

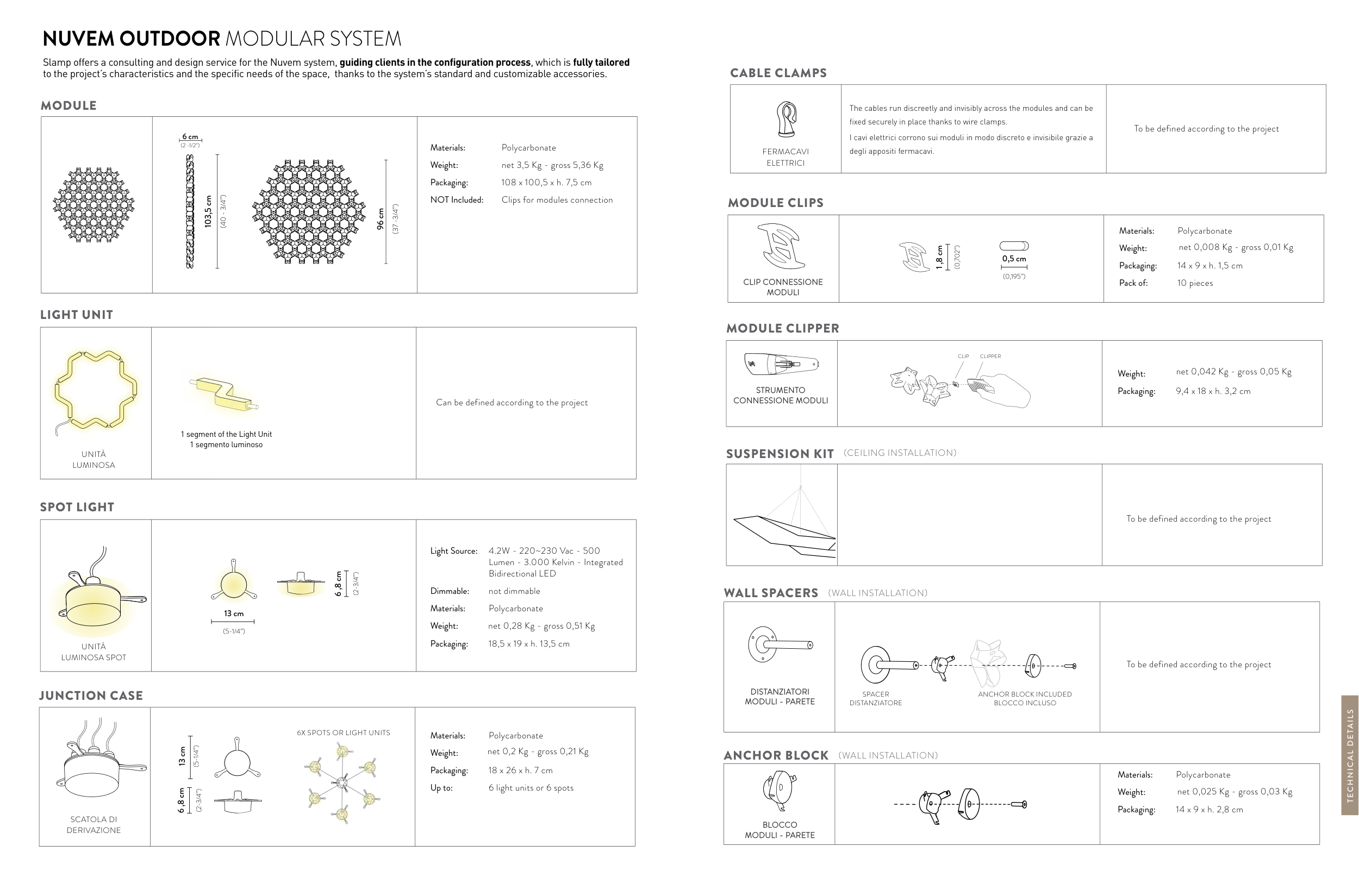

NUVEM OUTDOOR MODULAR SYSTEM
6 ,8 cm
(2-3/4”)
13 cm
(5-1/4”)
Light Source:
4.2W - 220~230 Vac - 500
Lumen - 3.000 Kelvin - Integrated
Bidirectional LED
Dimmable:
not dimmable
Materials:
Polycarbonate
Weight:
Packaging:
18,5 x 19 x h. 13,5 cm
103,5 cm
(40 - 3/4”)
6 cm
(2 -1/2”)
96 cm
(37 -3/4”)
Materials:
Polycarbonate
Weight:
Packaging:
108 x 100,5 x h. 7,5 cm
NOT Included:
Clips for modules connection
MODULE
SPOT LIGHT
6 ,8 cm
(2-3/4”)
13 cm
(5-1/4”)
Materials:
Polycarbonate
Weight:
Packaging:
18 x 26 x h. 7 cm
Up to:
6 light units or 6 spots
JUNCTION CASE
SCATOLA DI
DERIVAZIONE
UNITÀ
LUMINOSA SPOT
MODULE CLIPPER
CLIP CONNESSIONE
MODULI
MODULE CLIPS
Materials:
Polycarbonate
Weight:
Packaging:
14 x 9 x h. 1,5 cm
Pack of:
10 pieces
CLIPPER
CLIP
1 ,8 cm
(0,702”)
0,5 cm
(0,195”)
STRUMENTO
CONNESSIONE MODULI
WALL SPACERS (WALL INSTALLATION)
DISTANZIATORI
MODULI - PARETE
ANCHOR BLOCK (WALL INSTALLATION)
BLOCCO
MODULI - PARETE
SPACER
DISTANZIATORE
ANCHOR BLOCK INCLUDED
BLOCCO INCLUSO
Materials:
Polycarbonate
Weight:
Packaging:
14 x 9 x h. 2,8 cm
net 3,5 Kg - gross 5,36 Kg
net 0,28 Kg - gross 0,51 Kg
net 0,2 Kg - gross 0,21 Kg
FERMACAVI
ELETTRICI
CABLE CLAMPS
The cables run discreetly and invisibly across the modules and can be
fixed securely in place thanks to wire clamps.
I cavi elettrici corrono sui moduli in modo discreto e invisibile grazie a
degli appositi fermacavi.
net 0,008 Kg - gross 0,01 Kg
Weight:
Packaging:
9,4 x 18 x h. 3,2 cm
net 0,042 Kg - gross 0,05 Kg
SUSPENSION KIT (CEILING INSTALLATION)
net 0,025 Kg - gross 0,03 Kg
LIGHT UNIT
UNITÀ
LUMINOSA
6X SPOTS OR LIGHT UNITS
To be defined according to the project
To be defined according to the project
Can be defined according to the project
To be defined according to the project
Slamp offers a consulting and design service for the Nuvem system, guiding clients in the configuration process, which is fully tailored
to the project’s characteristics and the specific needs of the space, thanks to the system’s standard and customizable accessories.
1 segment of the Light Unit
1 segmento luminoso
