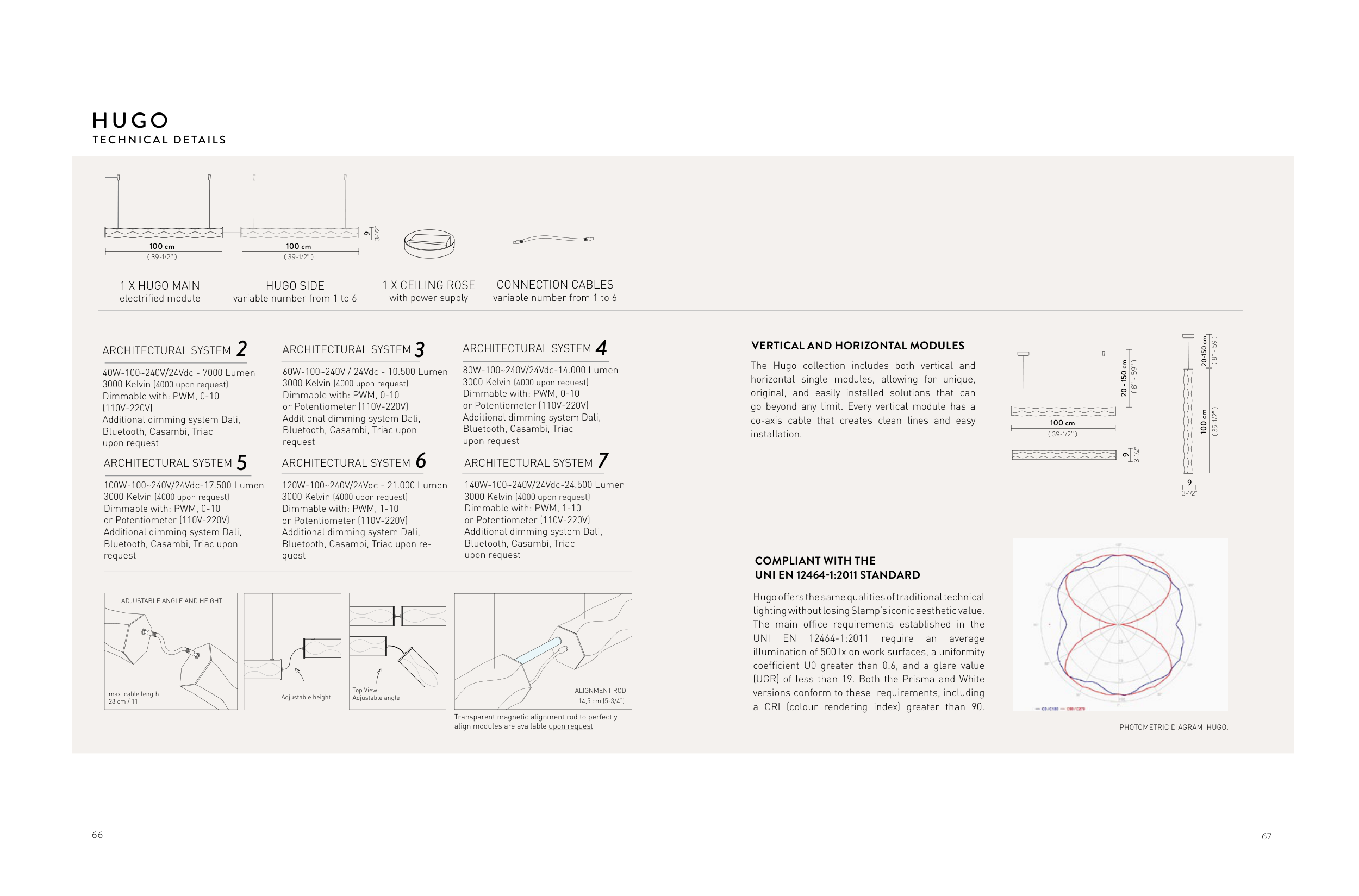

TECHNICAL DETAILS
HUGO
1 X HUGO MAIN
electrified module
HUGO SIDE
variable number from 1 to 6
1 X CEILING ROSE
with power supply
CONNECTION CABLES
variable number from 1 to 6
100 cm
( 39-1/2” )
100 cm
( 39-1/2” )
ARCHITECTURAL SYSTEM
40W-100~240V/24Vdc - 7000 Lumen
3000 Kelvin (4000 upon request)
Dimmable with: PWM, 0-10
(110V-220V)
Additional dimming system Dali,
Bluetooth, Casambi, Triac
upon request
2
ARCHITECTURAL SYSTEM
60W-100~240V / 24Vdc - 10.500 Lumen
3000 Kelvin (4000 upon request)
Dimmable with: PWM, 0-10
or Potentiometer (110V-220V)
Additional dimming system Dali,
Bluetooth, Casambi, Triac upon
request
3
ARCHITECTURAL SYSTEM
80W-100~240V/24Vdc-14.000 Lumen
3000 Kelvin (4000 upon request)
Dimmable with: PWM, 0-10
or Potentiometer (110V-220V)
Additional dimming system Dali,
Bluetooth, Casambi, Triac
upon request
4
ARCHITECTURAL SYSTEM
100W-100~240V/24Vdc-17.500 Lumen
3000 Kelvin (4000 upon request)
Dimmable with: PWM, 0-10
or Potentiometer (110V-220V)
Additional dimming system Dali,
Bluetooth, Casambi, Triac upon
request
5
ARCHITECTURAL SYSTEM
140W-100~240V/24Vdc-24.500 Lumen
3000 Kelvin (4000 upon request)
Dimmable with: PWM, 1-10
or Potentiometer (110V-220V)
Additional dimming system Dali,
Bluetooth, Casambi, Triac
upon request
7
ARCHITECTURAL SYSTEM
120W-100~240V/24Vdc - 21.000 Lumen
3000 Kelvin (4000 upon request)
Dimmable with: PWM, 1-10
or Potentiometer (110V-220V)
Additional dimming system Dali,
Bluetooth, Casambi, Triac upon re-
quest
6
max. cable length
28 cm / 11”
Adjustable height
Top View:
Adjustable angle
ALIGNMENT ROD
Transparent magnetic alignment rod to perfectly
align modules are available upon request
ADJUSTABLE ANGLE AND HEIGHT
14,5 cm (5-3/4”)
9
3-1/2”
The Hugo collection includes both vertical and
horizontal single modules, allowing for unique,
original, and easily installed solutions that can
go beyond any limit. Every vertical module has a
co-axis cable that creates clean lines and easy
installation.
VERTICAL AND HORIZONTAL MODULES
100 cm
( 39-1/2” )
9
3-1/2”
20-150 cm
( 8” - 59 )
9
3-1/2”
100 cm
( 39-1/2” )
20 - 150 cm
( 8” - 59” )
Hugo offers the same qualities of traditional technical
lighting without losing Slamp’s iconic aesthetic value.
The main office requirements established in the
UNI
EN
12464-1:2011
require
an
average
illumination of 500 lx on work surfaces, a uniformity
coefficient U0 greater than 0.6, and a glare value
(UGR) of less than 19. Both the Prisma and White
versions conform to these requirements, including
a CRI (colour rendering index) greater than 90.
PHOTOMETRIC DIAGRAM, HUGO.
COMPLIANT WITH THE
UNI EN 12464-1:2011 STANDARD
