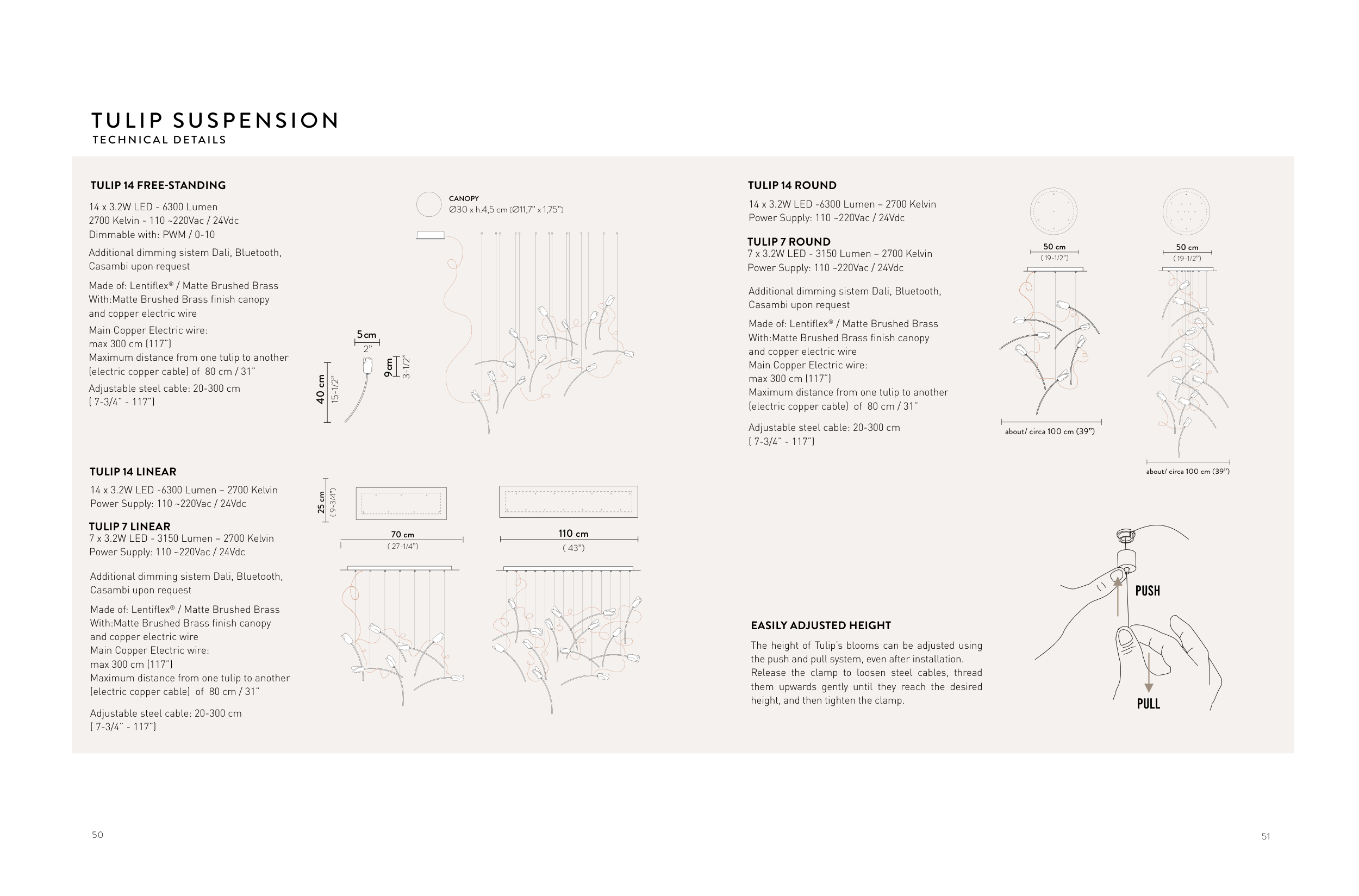

TECHNICAL DETAILS
TULIP SUSPENSION
TULIP 14 FREE-STANDING
40 cm
15-1/2”
5 cm
2”
9 cm
3-1/2”
Ø30 x h.4,5 cm (Ø11,7” x 1,75”)
CANOPY
14 x 3.2W LED - 6300 Lumen
2700 Kelvin - 110 ~220Vac / 24Vdc
Dimmable with: PWM / 0-10
Additional dimming sistem Dali, Bluetooth,
Casambi upon request
Made of: Lentiflex® / Matte Brushed Brass
With:Matte Brushed Brass finish canopy
and copper electric wire
Main Copper Electric wire:
max 300 cm (117”)
Maximum distance from one tulip to another
(electric copper cable) of 80 cm / 31”
Adjustable steel cable: 20-300 cm
( 7-3/4” - 117”)
TULIP 14 LINEAR
14 x 3.2W LED -6300 Lumen – 2700 Kelvin
Power Supply: 110 ~220Vac / 24Vdc
Additional dimming sistem Dali, Bluetooth,
Casambi upon request
Made of: Lentiflex® / Matte Brushed Brass
With:Matte Brushed Brass finish canopy
and copper electric wire
Main Copper Electric wire:
max 300 cm (117”)
Maximum distance from one tulip to another
(electric copper cable) of 80 cm / 31”
Adjustable steel cable: 20-300 cm
( 7-3/4” - 117”)
7 x 3.2W LED - 3150 Lumen – 2700 Kelvin
Power Supply: 110 ~220Vac / 24Vdc
TULIP 7 LINEAR
70 cm
( 27-1/4”)
25 cm
( 9-3/4”)
110 cm
( 43”)
TULIP 14 ROUND
14 x 3.2W LED -6300 Lumen – 2700 Kelvin
Power Supply: 110 ~220Vac / 24Vdc
Additional dimming sistem Dali, Bluetooth,
Casambi upon request
Made of: Lentiflex® / Matte Brushed Brass
With:Matte Brushed Brass finish canopy
and copper electric wire
Main Copper Electric wire:
max 300 cm (117”)
Maximum distance from one tulip to another
(electric copper cable) of 80 cm / 31”
Adjustable steel cable: 20-300 cm
( 7-3/4” - 117”)
7 x 3.2W LED - 3150 Lumen – 2700 Kelvin
Power Supply: 110 ~220Vac / 24Vdc
TULIP 7 ROUND
50 cm
( 19-1/2”)
about/ circa 100 cm (39”)
about/ circa 100 cm (39”)
50 cm
( 19-1/2”)
PUSH
PULL
The height of Tulip’s blooms can be adjusted using
the push and pull system, even after installation.
Release the clamp to loosen steel cables, thread
them upwards gently until they reach the desired
height, and then tighten the clamp.
EASILY ADJUSTED HEIGHT
