38
LA LOLLO AND ODEON’S DIAMETER AND NUMBER OF RINGS CAN BE PERSONALIZED.
TECHNICAL LIGHTING DETAILS WILL BE ADAPTED TO THE SPECIFIC PROJECT.

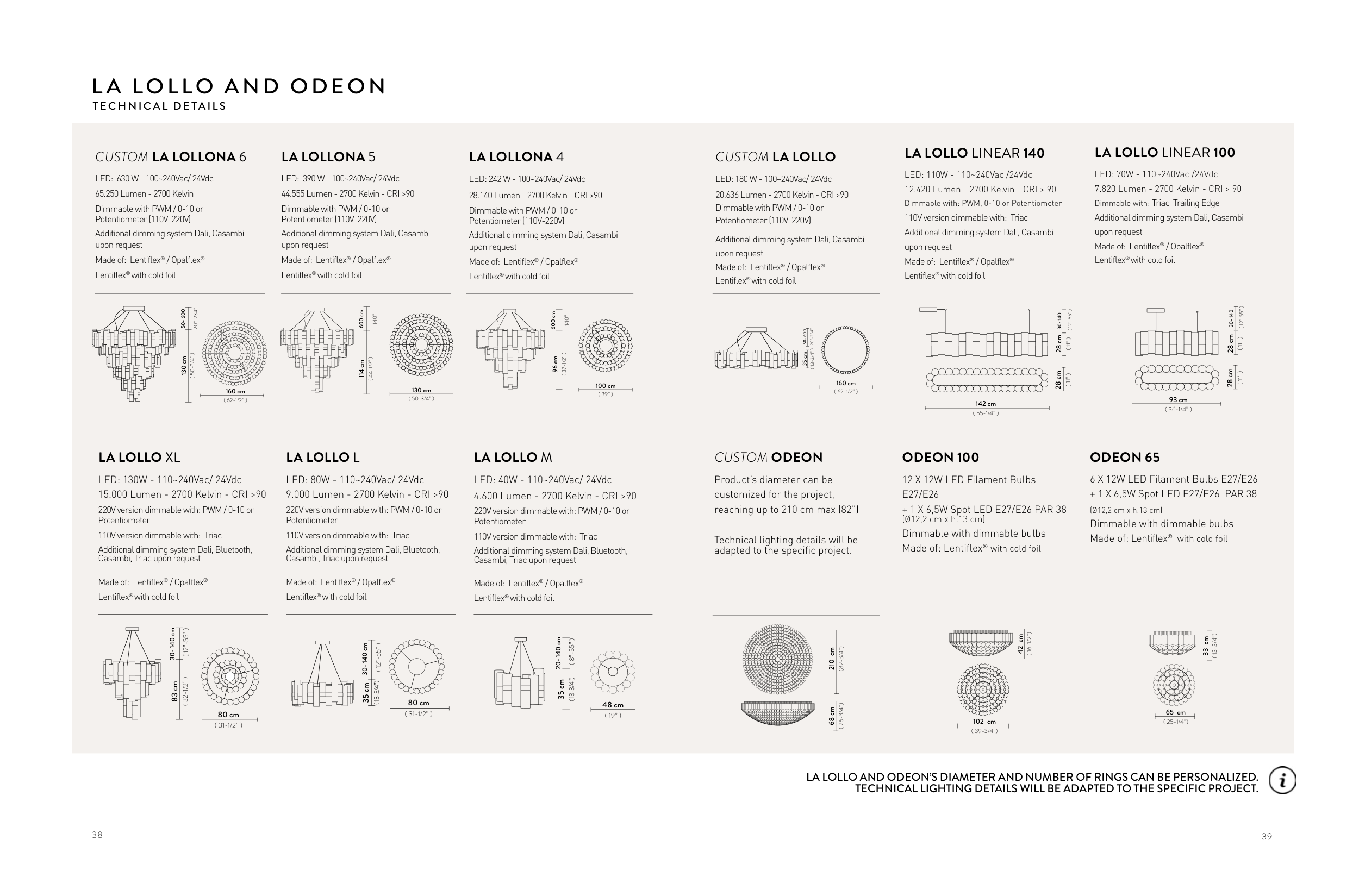

TECHNICAL DETAILS
L A LOLLO AND ODEON
130 cm
( 50-3/4” )
114 cm
( 44-1/2” )
LA LOLLONA 5
LED: 390 W - 100~240Vac/ 24Vdc
44.555 Lumen - 2700 Kelvin - CRI >90
Dimmable with PWM / 0-10 or
Potentiometer (110V-220V)
Additional dimming system Dali, Casambi
upon request
Made of: Lentiflex® / Opalflex®
Lentiflex® with cold foil
LA LOLLONA 4
LED: 242 W - 100~240Vac/ 24Vdc
28.140 Lumen - 2700 Kelvin - CRI >90
Dimmable with PWM / 0-10 or
Potentiometer (110V-220V)
Additional dimming system Dali, Casambi
upon request
Made of: Lentiflex® / Opalflex®
Lentiflex® with cold foil
100 cm
( 39” )
96 cm
( 37-1/2” )
600 cm
140”
600 cm
140”
30- 140 cm
( 12”-55” )
80 cm
( 31-1/2” )
83 cm
( 32-1/2” )
LA LOLLO XL
LED: 130W - 110~240Vac/ 24Vdc
15.000 Lumen - 2700 Kelvin - CRI >90
220V version dimmable with: PWM / 0-10 or
Potentiometer
110V version dimmable with: Triac
Additional dimming system Dali, Bluetooth,
Casambi, Triac upon request
Made of: Lentiflex® / Opalflex®
Lentiflex® with cold foil
LA LOLLO L
LED: 80W - 110~240Vac/ 24Vdc
9.000 Lumen - 2700 Kelvin - CRI >90
220V version dimmable with: PWM / 0-10 or
Potentiometer
110V version dimmable with: Triac
Additional dimming system Dali, Bluetooth,
Casambi, Triac upon request
Made of: Lentiflex® / Opalflex®
Lentiflex® with cold foil
35 cm
( 13-3/4”)
80 cm
( 31-1/2” )
LA LOLLO M
LED: 40W - 110~240Vac/ 24Vdc
4.600 Lumen - 2700 Kelvin - CRI >90
220V version dimmable with: PWM / 0-10 or
Potentiometer
110V version dimmable with: Triac
Additional dimming system Dali, Bluetooth,
Casambi, Triac upon request
Made of: Lentiflex® / Opalflex®
Lentiflex® with cold foil
35 cm
( 13-3/4”)
48 cm
( 19” )
30- 140 cm
( 12”-55” )
20- 140 cm
( 8”-55” )
LA LOLLO LINEAR 140
LED: 110W - 110~240Vac /24Vdc
12.420 Lumen - 2700 Kelvin - CRI > 90
Dimmable with: PWM, 0-10 or Potentiometer
110V version dimmable with: Triac
Additional dimming system Dali, Casambi
upon request
Made of: Lentiflex® / Opalflex®
Lentiflex® with cold foil
LA LOLLO LINEAR 100
LED: 70W - 110~240Vac /24Vdc
7.820 Lumen - 2700 Kelvin - CRI > 90
Dimmable with: Triac Trailing Edge
Additional dimming system Dali, Casambi
upon request
Made of: Lentiflex® / Opalflex®
Lentiflex® with cold foil
142 cm
28 cm
( 11” )
30- 140
( 12”-55” )
93 cm
( 36-1/4” )
28 cm
( 11” )
30- 140
( 12”-55” )
28 cm
( 11” )
28 cm
( 11” )
CUSTOM LA LOLLO
LED: 180 W - 100~240Vac/ 24Vdc
20.636 Lumen - 2700 Kelvin - CRI >90
Dimmable with PWM / 0-10 or
Potentiometer (110V-220V)
Additional dimming system Dali, Casambi
upon request
Made of: Lentiflex® / Opalflex®
Lentiflex® with cold foil
CUSTOM LA LOLLONA 6
LED: 630 W - 100~240Vac/ 24Vdc
65.250 Lumen - 2700 Kelvin
Dimmable with PWM / 0-10 or
Potentiometer (110V-220V)
Additional dimming system Dali, Casambi
upon request
Made of: Lentiflex® / Opalflex®
Lentiflex® with cold foil
130 cm
( 50-3/4” )
50- 600
20”-234”
160 cm
( 62-1/2” )
160 cm
( 62-1/2” )
35 cm
( 13-3/4” )
50- 600
20”-234”
210 cm
(82-3/4”)
68 cm
( 26-3/4”)
42 cm
( 16-1/2”)
102 cm
( 39-3/4”)
65 cm
( 25-1/4”)
33 cm
( 13-3/4”)
CUSTOM ODEON
Product’s diameter can be
customized for the project,
reaching up to 210 cm max (82”)
Technical lighting details will be
adapted to the specific project.
( 55-1/4” )
ODEON 100
12 X 12W LED Filament Bulbs
E27/E26
+ 1 X 6,5W Spot LED E27/E26 PAR 38
(Ø12,2 cm x h.13 cm)
Dimmable with dimmable bulbs
Made of: Lentiflex® with cold foil
ODEON 65
6 X 12W LED Filament Bulbs E27/E26
+ 1 X 6,5W Spot LED E27/E26 PAR 38
(Ø12,2 cm x h.13 cm)
Dimmable with dimmable bulbs
Made of: Lentiflex® with cold foil
39
