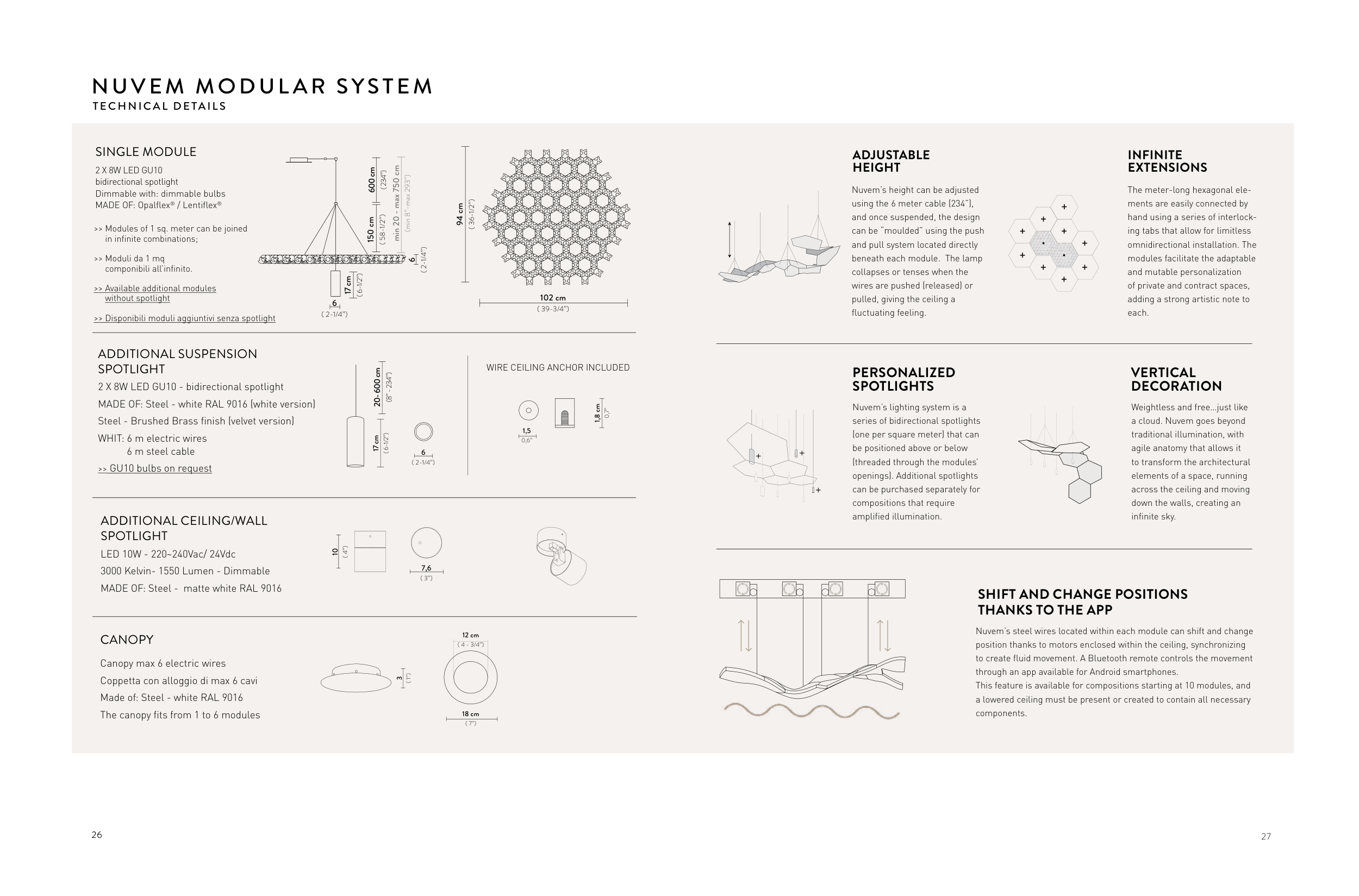

TECHNICAL DETAILS
NUVEM MODUL AR SYSTEM
SINGLE MODULE
2 X 8W LED GU10
bidirectional spotlight
Dimmable with: dimmable bulbs
MADE OF: Opalflex® / Lentiflex®
ADDITIONAL SUSPENSION
SPOTLIGHT
2 X 8W LED GU10 - bidirectional spotlight
MADE OF: Steel - white RAL 9016 (white version)
Steel - Brushed Brass finish (velvet version)
WHIT: 6 m electric wires
6 m steel cable
>> GU10 bulbs on request
CANOPY
Canopy max 6 electric wires
Coppetta con alloggio di max 6 cavi
Made of: Steel - white RAL 9016
The canopy fits from 1 to 6 modules
>> Modules of 1 sq. meter can be joined
in infinite combinations;
>> Moduli da 1 mq
componibili all’infinito.
>> Available additional modules
without spotlight
>> Disponibili moduli aggiuntivi senza spotlight
102 cm
( 39-3/4”)
94 cm
( 36-1/2”)
WIRE CEILING ANCHOR INCLUDED
6
( 2-1/4”)
17 cm
( 6-1/2”)
ADDITIONAL CEILING/WALL
SPOTLIGHT
LED 10W - 220~240Vac/ 24Vdc
3000 Kelvin- 1550 Lumen - Dimmable
MADE OF: Steel - matte white RAL 9016
3
( 1”)
18 cm
( 7”)
12 cm
( 4 - 3/4”)
20- 600 cm
(8” - 234”)
1,5
0,6”
1,8 cm
0,7”
7,6
( 3”)
10
( 4”)
6
( 2-1/4”)
17 cm
( 6-1/2”)
6
( 2-1/4”)
150 cm
( 58-1/2”)
600 cm
( 234”)
min 20 - max 750 cm
(min 8”-max 293”)
ADJUSTABLE
HEIGHT
Nuvem’s height can be adjusted
using the 6 meter cable (234”),
and once suspended, the design
can be “moulded” using the push
and pull system located directly
beneath each module. The lamp
collapses or tenses when the
wires are pushed (released) or
pulled, giving the ceiling a
fluctuating feeling.
The meter-long hexagonal ele-
ments are easily connected by
hand using a series of interlock-
ing tabs that allow for limitless
omnidirectional installation. The
modules facilitate the adaptable
and mutable personalization
of private and contract spaces,
adding a strong artistic note to
each.
INFINITE
EXTENSIONS
PERSONALIZED
SPOTLIGHTS
Nuvem’s lighting system is a
series of bidirectional spotlights
(one per square meter) that can
be positioned above or below
(threaded through the modules’
openings). Additional spotlights
can be purchased separately for
compositions that require
amplified illumination.
VERTICAL
DECORATION
Weightless and free…just like
a cloud. Nuvem goes beyond
traditional illumination, with
agile anatomy that allows it
to transform the architectural
elements of a space, running
across the ceiling and moving
down the walls, creating an
infinite sky.
SHIFT AND CHANGE POSITIONS
THANKS TO THE APP
Nuvem’s steel wires located within each module can shift and change
position thanks to motors enclosed within the ceiling, synchronizing
to create fluid movement. A Bluetooth remote controls the movement
through an app available for Android smartphones.
This feature is available for compositions starting at 10 modules, and
a lowered ceiling must be present or created to contain all necessary
components.
