280 x 280
280 x 280
280 x 280
280 x 280
245
245
245
245
86°
33°
12°
C0 6°+6° C90 54°
= 5°
h(m)
E(lx) 4000K
5
0.0
86°
4
0.0
3
0.5
2
1.5
1
13.0
0.1 m
0(m)
h(m)
E(lx) 4000K
10.0
6.5
12°
8.0
12.0
6.0
28.0
4.0
88.0
2.0
350.0
0.1 m
0(m)
h(m)
E(lx) 4000K
10.0
1.0
ASY
8.0
2.0
6.0
5.0
4.0
21.0
2.0
170.0
0.1 m
0(m)
h(m)
E(lx) 4000K
10.0
1.5
33°
8.0
3.0
6.0
7.0
4.0
26.0
2.0
200.0
0.1 m
0(m)
23
Transparent glass
Transparent glass
Transparent glass

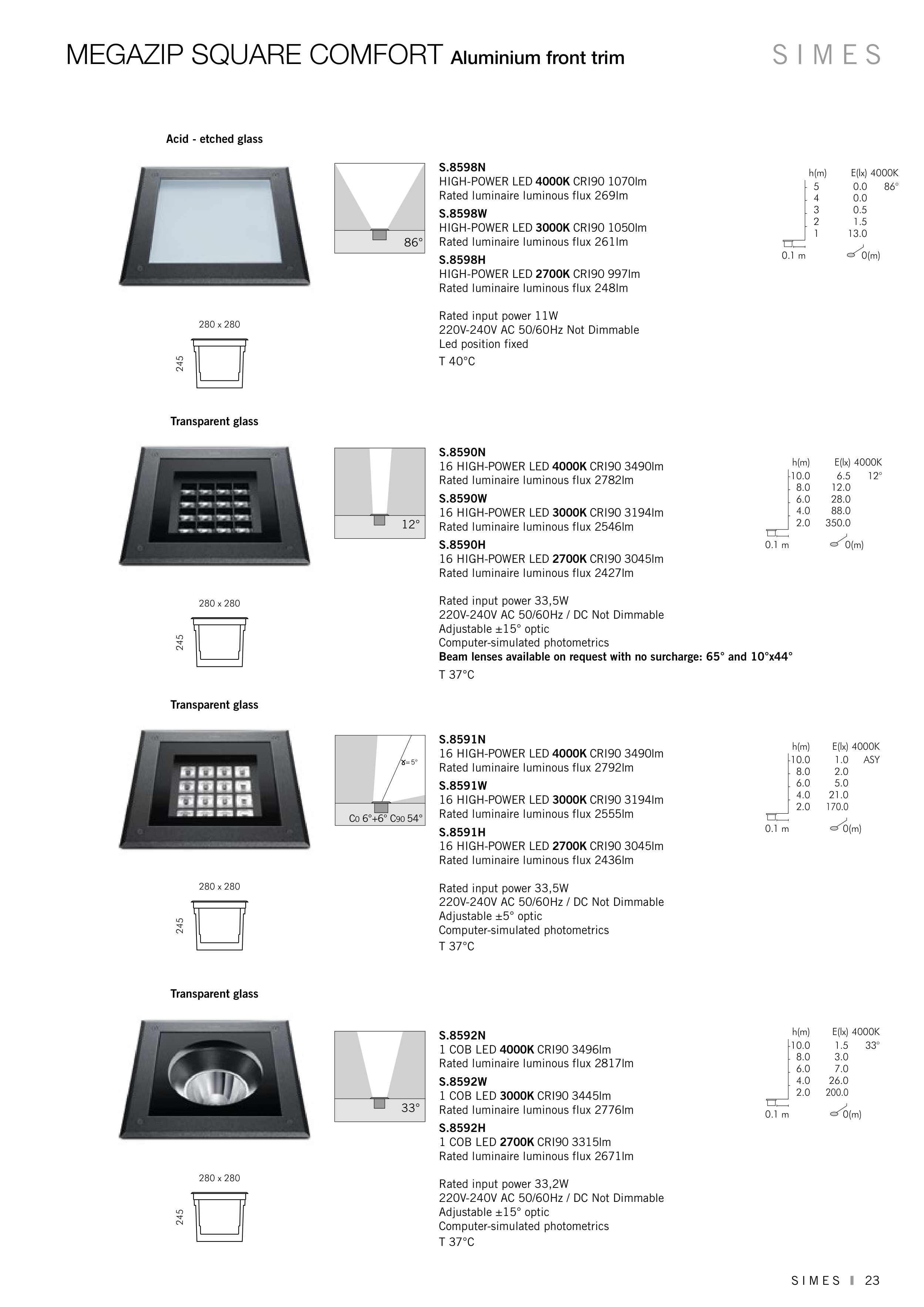

MEGAZIP SQUARE COMFORT Aluminium front trim
Acid - etched glass
HIGH-POWER LED 4000K CRI90 1070lm
Rated luminaire luminous flux 269lm
HIGH-POWER LED 3000K CRI90 1050lm
Rated luminaire luminous flux 261lm
HIGH-POWER LED 2700K CRI90 997lm
Rated luminaire luminous flux 248lm
Rated input power 11W
220V-240V AC 50/60Hz Not Dimmable
Led position fixed
16 HIGH-POWER LED 4000K CRI90 3490lm
Rated luminaire luminous flux 2782lm
16 HIGH-POWER LED 3000K CRI90 3194lm
Rated luminaire luminous flux 2546lm
16 HIGH-POWER LED 2700K CRI90 3045lm
Rated luminaire luminous flux 2427lm
Rated input power 33,5W
220V-240V AC 50/60Hz / DC Not Dimmable
Adjustable ±15° optic
Computer-simulated photometrics
Beam lenses available on request with no surcharge: 65° and 10°x44°
16 HIGH-POWER LED 4000K CRI90 3490lm
Rated luminaire luminous flux 2792lm
16 HIGH-POWER LED 3000K CRI90 3194lm
Rated luminaire luminous flux 2555lm
16 HIGH-POWER LED 2700K CRI90 3045lm
Rated luminaire luminous flux 2436lm
Rated input power 33,5W
220V-240V AC 50/60Hz / DC Not Dimmable
Adjustable ±5° optic
Computer-simulated photometrics
1 COB LED 4000K CRI90 3496lm
Rated luminaire luminous flux 2817lm
1 COB LED 3000K CRI90 3445lm
Rated luminaire luminous flux 2776lm
1 COB LED 2700K CRI90 3315lm
Rated luminaire luminous flux 2671lm
Rated input power 33,2W
220V-240V AC 50/60Hz / DC Not Dimmable
Adjustable ±15° optic
Computer-simulated photometrics
T 40°C
S.8598N
S.8598W
S.8598H
T 37°C
T 37°C
T 37°C
S.8590N
S.8590W
S.8590H
S.8592N
S.8592W
S.8592H
S.8591N
S.8591W
S.8591H
