h(m)
E(lx) 4000K
5.0
0.0
90°
4.0
0.0
3.0
0.0
2.0
0.0
1.0
1.5
0.1 m
0(m)
90°
130 x 130
130 x 130
130 x 130
130 x 130
135
135
135
135
165 x 165
165 x 165
165 x 165
165 x 165
h(m)
E(lx) 4000K
5.0
4.5
12°
4.0
7.5
3.0
18.0
2.0
52.0
1.0
210.0
0.1 m
0(m)
h(m)
E(lx) 4000K
5.0
1.0
ASY
4.0
1.5
3.0
4.0
2.0
14.0
1.0
85.0
0.1 m
0(m)
33°
12°
C0 6°+6° C90 54°
=5°
h(m)
E(lx) 4000K
5.0
1.0
33°
4.0
1.5
3.0
3.5
2.0
12.0
1.0
80.0
0.1 m
0(m)
18

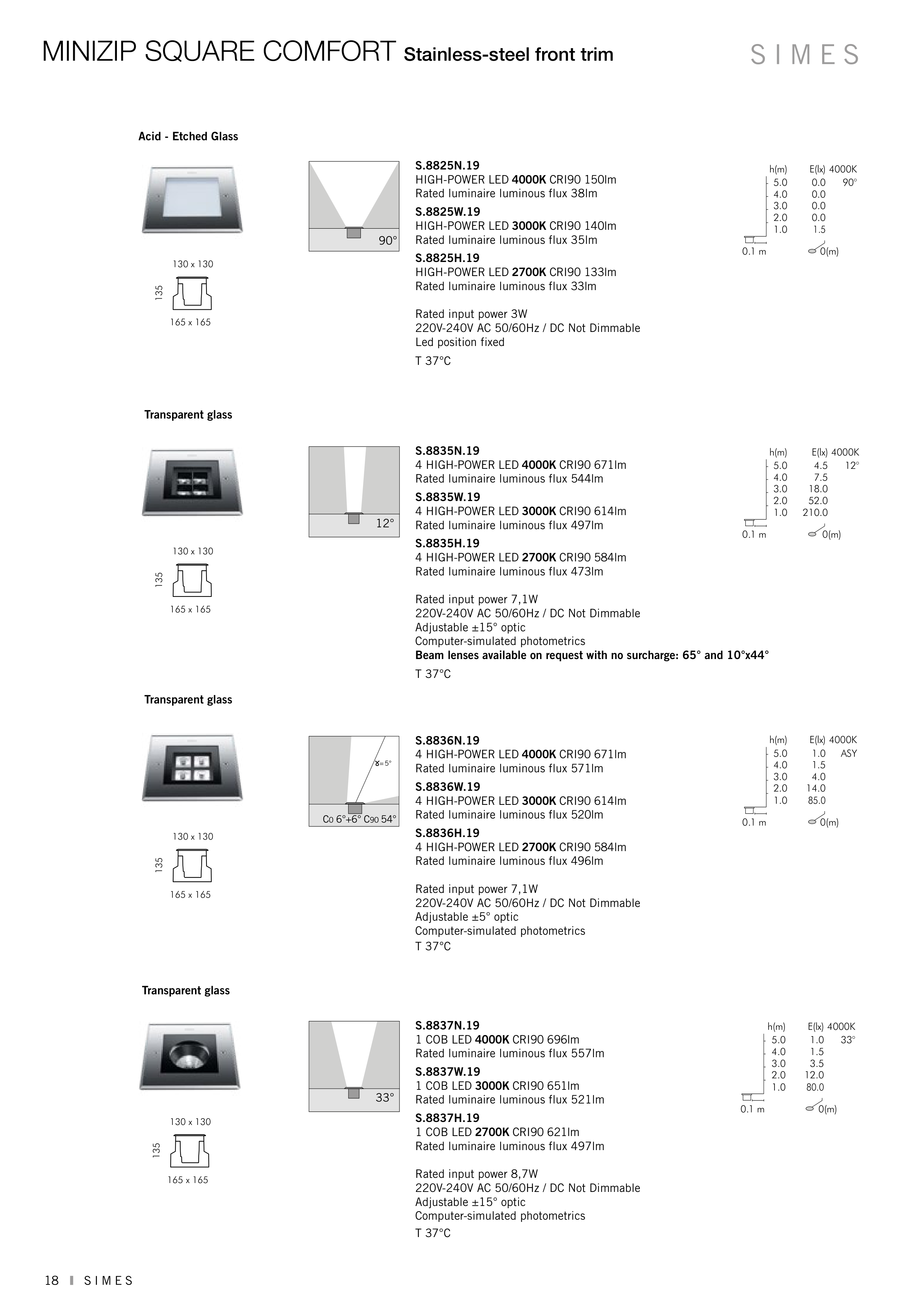

MINIZIP SQUARE COMFORT Stainless-steel front trim
Transparent glass
Transparent glass
Transparent glass
Acid - Etched Glass
4 HIGH-POWER LED 4000K CRI90 671lm
Rated luminaire luminous flux 544lm
4 HIGH-POWER LED 3000K CRI90 614lm
Rated luminaire luminous flux 497lm
4 HIGH-POWER LED 2700K CRI90 584lm
Rated luminaire luminous flux 473lm
Rated input power 7,1W
220V-240V AC 50/60Hz / DC Not Dimmable
Adjustable ±15° optic
Computer-simulated photometrics
Beam lenses available on request with no surcharge: 65° and 10°x44°
4 HIGH-POWER LED 4000K CRI90 671lm
Rated luminaire luminous flux 571lm
4 HIGH-POWER LED 3000K CRI90 614lm
Rated luminaire luminous flux 520lm
4 HIGH-POWER LED 2700K CRI90 584lm
Rated luminaire luminous flux 496lm
Rated input power 7,1W
220V-240V AC 50/60Hz / DC Not Dimmable
Adjustable ±5° optic
Computer-simulated photometrics
HIGH-POWER LED 4000K CRI90 150lm
Rated luminaire luminous flux 38lm
HIGH-POWER LED 3000K CRI90 140lm
Rated luminaire luminous flux 35lm
HIGH-POWER LED 2700K CRI90 133lm
Rated luminaire luminous flux 33lm
Rated input power 3W
220V-240V AC 50/60Hz / DC Not Dimmable
Led position fixed
1 COB LED 4000K CRI90 696lm
Rated luminaire luminous flux 557lm
1 COB LED 3000K CRI90 651lm
Rated luminaire luminous flux 521lm
1 COB LED 2700K CRI90 621lm
Rated luminaire luminous flux 497lm
Rated input power 8,7W
220V-240V AC 50/60Hz / DC Not Dimmable
Adjustable ±15° optic
Computer-simulated photometrics
T 37°C
T 37°C
T 37°C
S.8825N.19
S.8825W.19
S.8825H.19
T 37°C
S.8835N.19
S.8835W.19
S.8835H.19
S.8837N.19
S.8837W.19
S.8837H.19
S.8836N.19
S.8836W.19
S.8836H.19
