Ø 200
800
Ø 200
Ø 250
900
Ø 250
13
FLANGE FOR TONIGHT Ø 200mm
Flange to be fixed in concrete with
stainless steel screws for fixing in the
ground.
MID-POWER LED 3000K CRI90 1648lm
Rated luminaire luminous flux 300lm
Rated input power 12W
220V-240V AC 50/60Hz / DC
Not Dimmable
MID-POWER LED 2700K CRI90 1648lm
Rated luminaire luminous flux 300lm
Rated input power 12W
220V-240V AC 50/60Hz / DC
Not Dimmable

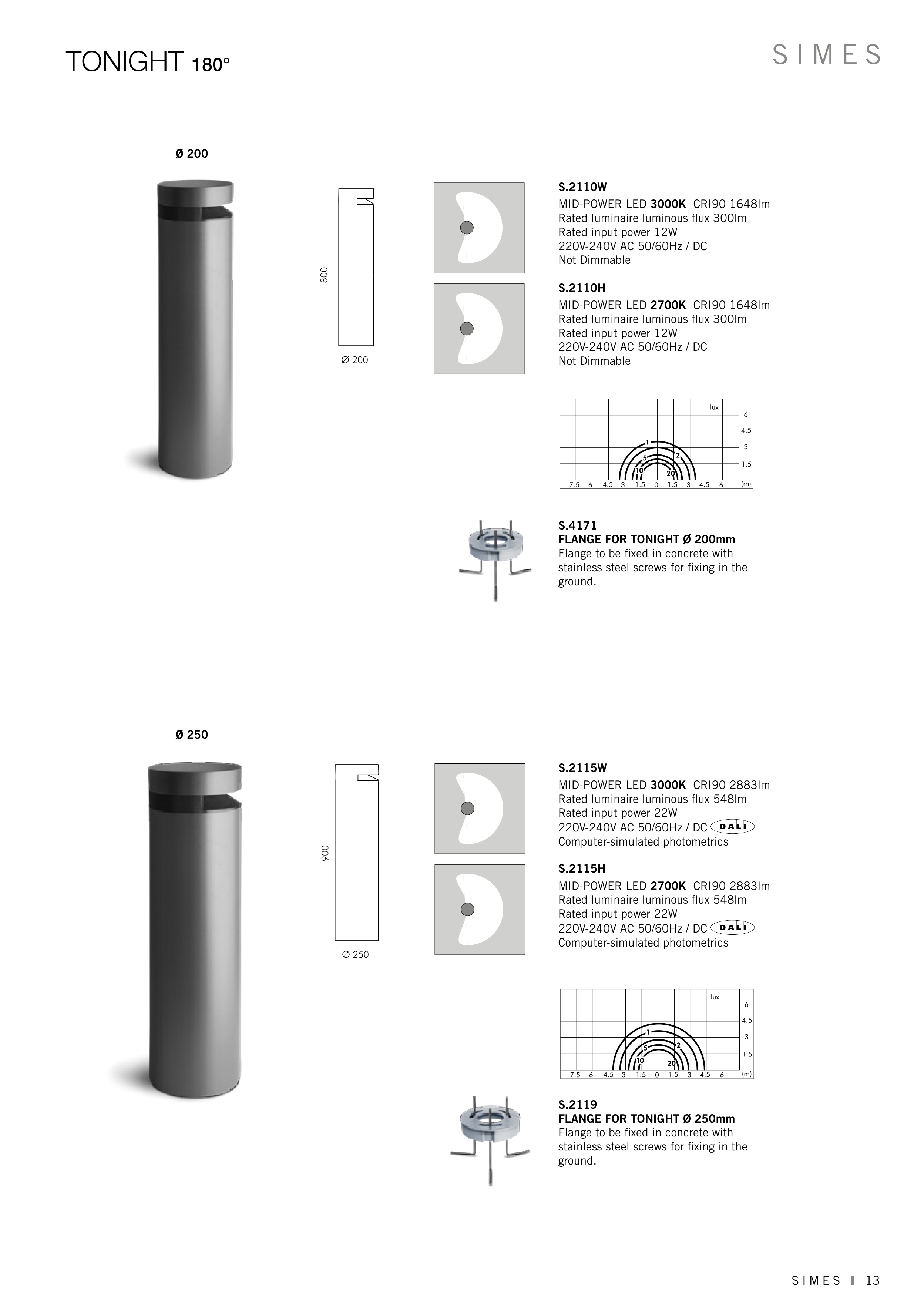

TONIGHT 180°
FLANGE FOR TONIGHT Ø 250mm
Flange to be fixed in concrete with
stainless steel screws for fixing in the
ground.
MID-POWER LED 3000K CRI90 2883lm
Rated luminaire luminous flux 548lm
Rated input power 22W
220V-240V AC 50/60Hz / DC
Computer-simulated photometrics
MID-POWER LED 2700K CRI90 2883lm
Rated luminaire luminous flux 548lm
Rated input power 22W
220V-240V AC 50/60Hz / DC
Computer-simulated photometrics
S.4171
S.2110W
S.2110H
S.2119
S.2115W
S.2115H
