Ø 150
500
1200x1200 H1000
500
12
4 way connector for through wiring
(in/out)
FLANGE FOR SAFETY BOLLARD
Suitable for TONIGHT 200.
Resistant to vehicle impact of 3500Kg up to max
speed of 50km/h. Steel flange h 500mm to be
cemented in ground. Rooted 500mm into reinforced
concrete plinth 1200x1200x1000mm (the flange
must be welded to the plinth’s rebar).

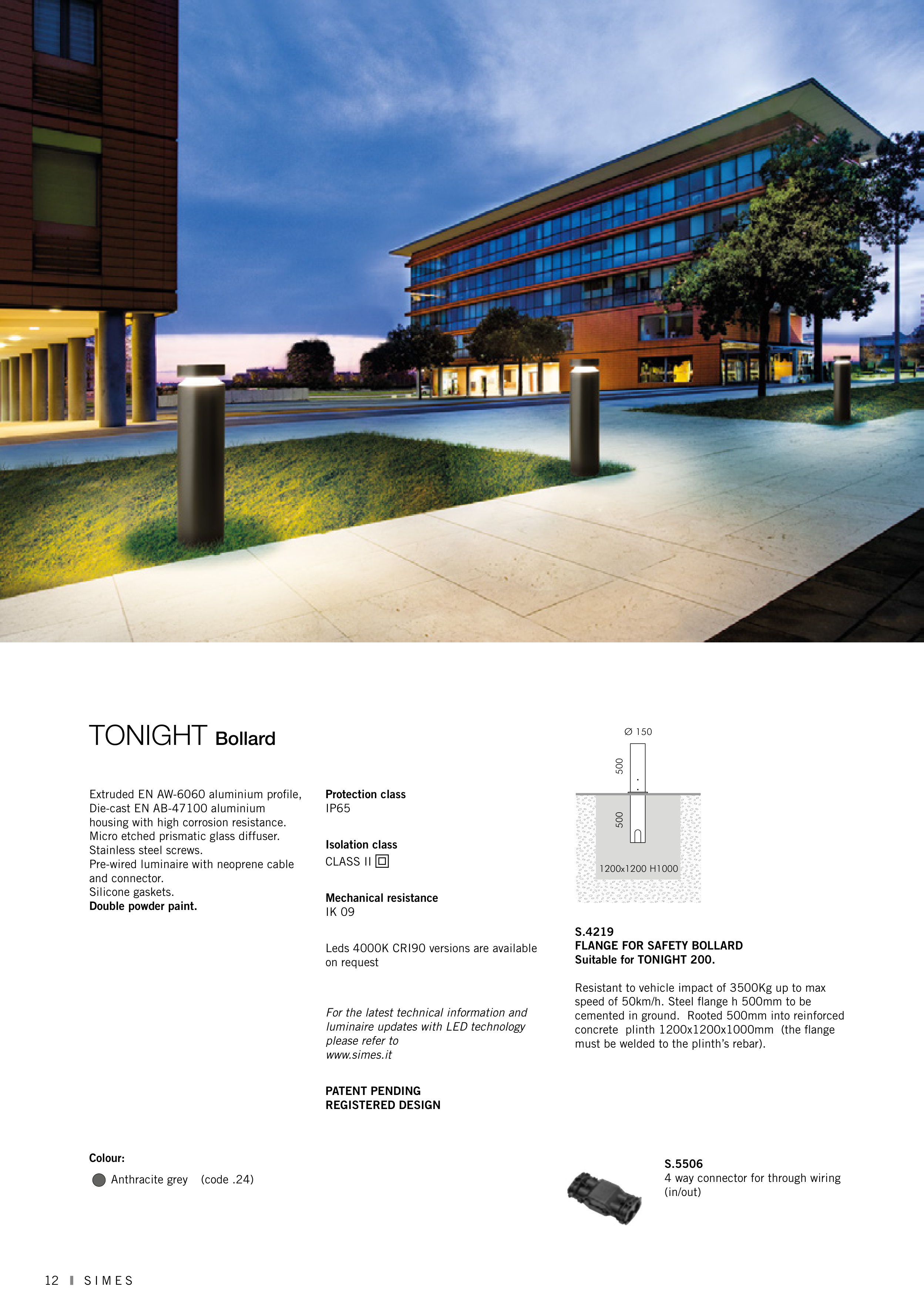

TONIGHT Bollard
Extruded EN AW-6060 aluminium profile,
Die-cast EN AB-47100 aluminium
housing with high corrosion resistance.
Micro etched prismatic glass diffuser.
Stainless steel screws.
Pre-wired luminaire with neoprene cable
and connector.
Silicone gaskets.
Double powder paint.
Protection class
IP65
Isolation class
CLASS II q
Mechanical resistance
IK 09
Leds 4000K CRI90 versions are available
on request
For the latest technical information and
luminaire updates with LED technology
please refer to
www.simes.it
PATENT PENDING
REGISTERED DESIGN
Colour:
Anthracite grey
(code .24)
S.5506
S.4219
