CONFIGURATION WITH 3 SUPPORT POLES
Suspension system
with 2 x Flower Zoom 60 Comfort 24Vdc 8,3W
with 3 support poles
(Require remote power supply, see page 8)
Suspension system
with 4 x Flower Zoom 60 Comfort 24Vdc 8,3W
with 3 support poles
(Require remote power supply, see page 8)
The electrical cables are connected to a pole wired to the power line, while the support ropes
are anchored to the other two non-electrified poles.

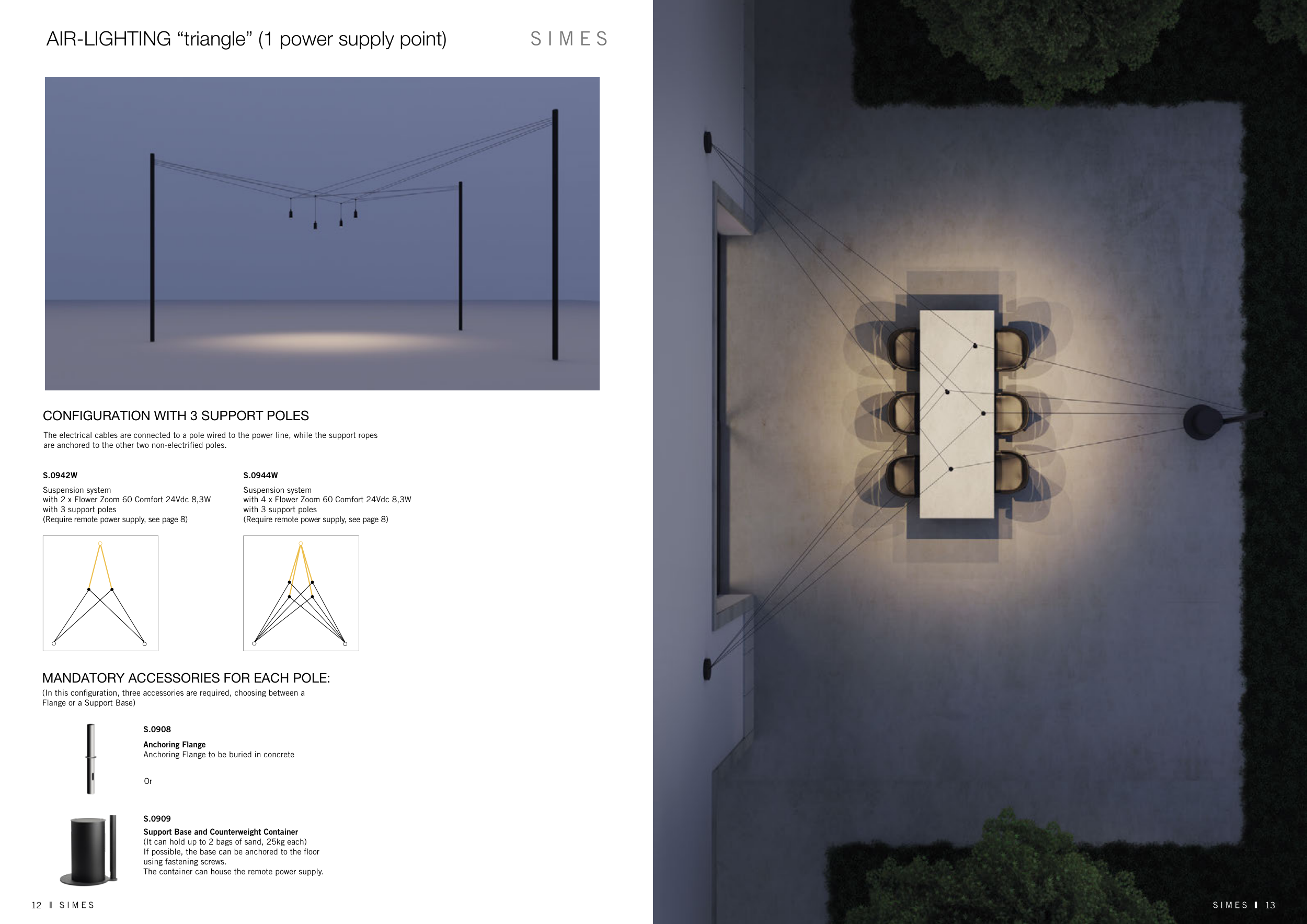

AIR-LIGHTING “triangle” (1 power supply point)
Anchoring Flange
Anchoring Flange to be buried in concrete
Support Base and Counterweight Container
(It can hold up to 2 bags of sand, 25kg each)
If possible, the base can be anchored to the floor
using fastening screws.
The container can house the remote power supply.
Or
MANDATORY ACCESSORIES FOR EACH POLE:
(In this configuration, three accessories are required, choosing between a
Flange or a Support Base)
S.0942W
S.0944W
S.0908
S.0909
