10
11

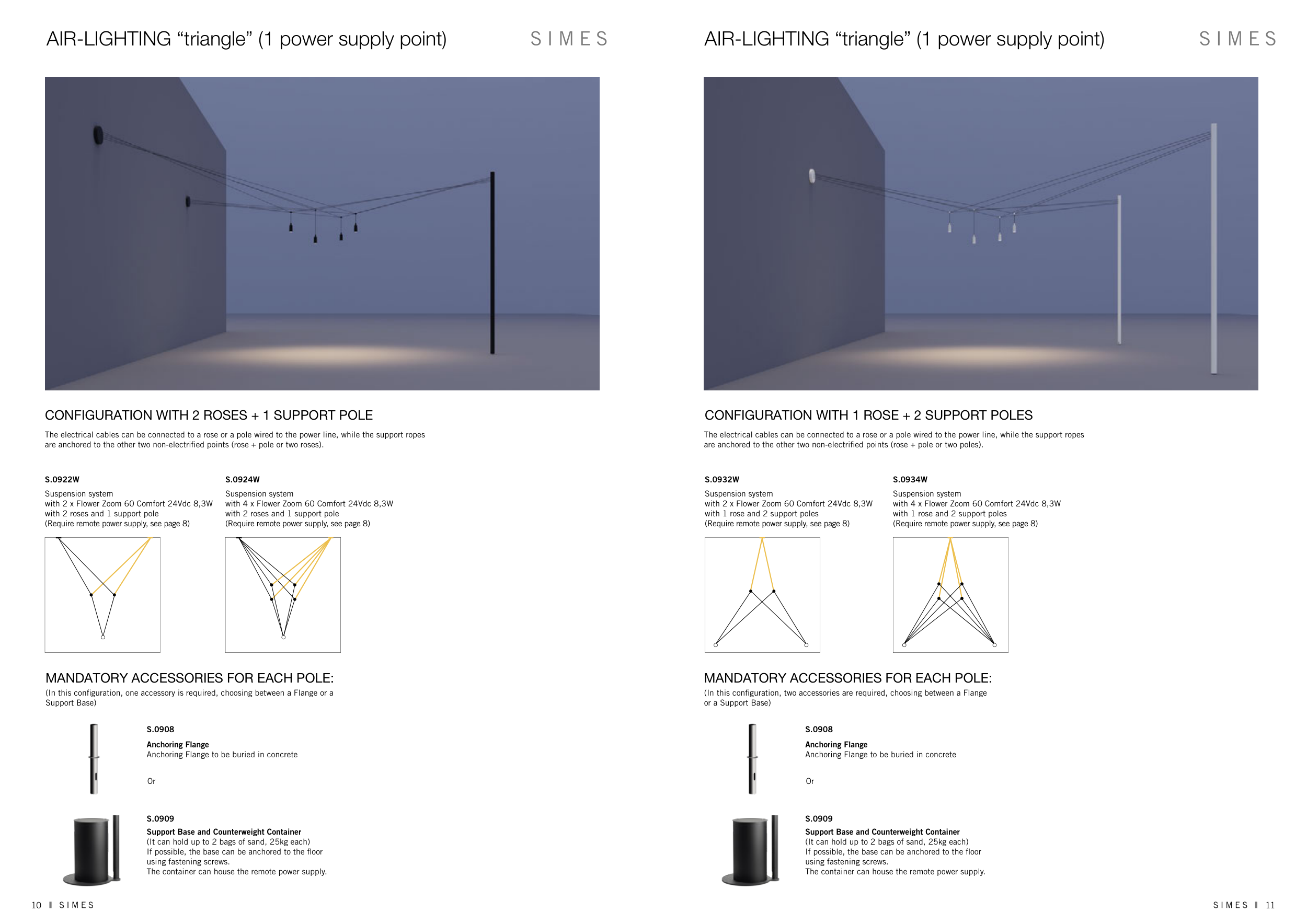

CONFIGURATION WITH 2 ROSES + 1 SUPPORT POLE
Suspension system
with 2 x Flower Zoom 60 Comfort 24Vdc 8,3W
with 2 roses and 1 support pole
(Require remote power supply, see page 8)
Suspension system
with 4 x Flower Zoom 60 Comfort 24Vdc 8,3W
with 2 roses and 1 support pole
(Require remote power supply, see page 8)
The electrical cables can be connected to a rose or a pole wired to the power line, while the support ropes
are anchored to the other two non-electrified points (rose + pole or two roses).
The electrical cables can be connected to a rose or a pole wired to the power line, while the support ropes
are anchored to the other two non-electrified points (rose + pole or two poles).
CONFIGURATION WITH 1 ROSE + 2 SUPPORT POLES
Suspension system
with 2 x Flower Zoom 60 Comfort 24Vdc 8,3W
with 1 rose and 2 support poles
(Require remote power supply, see page 8)
Suspension system
with 4 x Flower Zoom 60 Comfort 24Vdc 8,3W
with 1 rose and 2 support poles
(Require remote power supply, see page 8)
Anchoring Flange
Anchoring Flange to be buried in concrete
Anchoring Flange
Anchoring Flange to be buried in concrete
Support Base and Counterweight Container
(It can hold up to 2 bags of sand, 25kg each)
If possible, the base can be anchored to the floor
using fastening screws.
The container can house the remote power supply.
Support Base and Counterweight Container
(It can hold up to 2 bags of sand, 25kg each)
If possible, the base can be anchored to the floor
using fastening screws.
The container can house the remote power supply.
Or
Or
MANDATORY ACCESSORIES FOR EACH POLE:
(In this configuration, one accessory is required, choosing between a Flange or a
Support Base)
MANDATORY ACCESSORIES FOR EACH POLE:
(In this configuration, two accessories are required, choosing between a Flange
or a Support Base)
AIR-LIGHTING “triangle” (1 power supply point)
AIR-LIGHTING “triangle” (1 power supply point)
S.0922W
S.0924W
S.0932W
S.0934W
S.0908
S.0908
S.0909
S.0909
