Electrification Rose
Support Rose

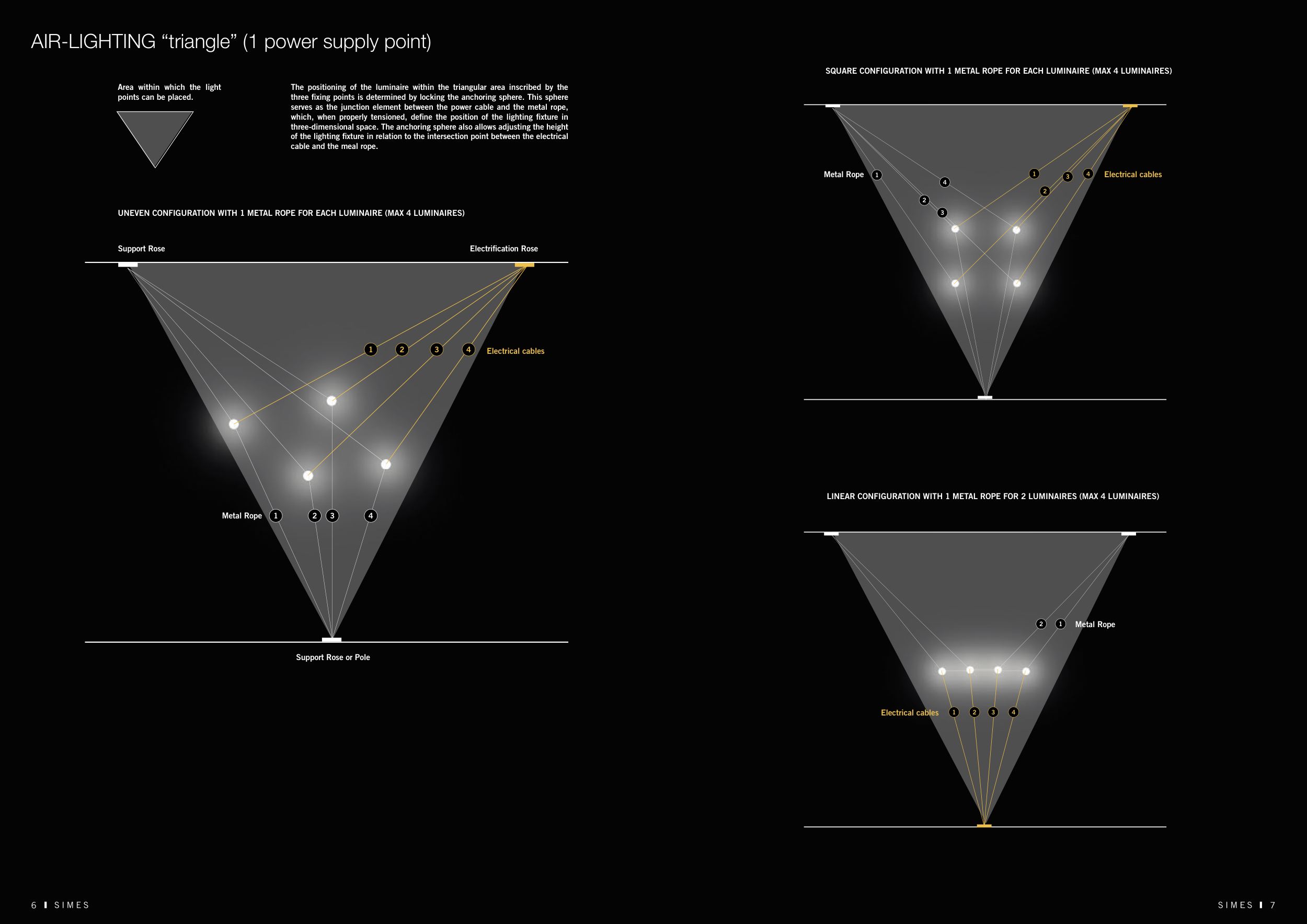

AIR-LIGHTING “triangle” (1 power supply point)
Support Rose or Pole
Electrical cables
Metal Rope
UNEVEN CONFIGURATION WITH 1 METAL ROPE FOR EACH LUMINAIRE (MAX 4 LUMINAIRES)
Area within which the light
points can be placed.
Electrical cables
Metal Rope
Electrical cables
Metal Rope
The positioning of the luminaire within the triangular area inscribed by the
three fixing points is determined by locking the anchoring sphere. This sphere
serves as the junction element between the power cable and the metal rope,
which, when properly tensioned, define the position of the lighting fixture in
three-dimensional space. The anchoring sphere also allows adjusting the height
of the lighting fixture in relation to the intersection point between the electrical
cable and the meal rope.
SQUARE CONFIGURATION WITH 1 METAL ROPE FOR EACH LUMINAIRE (MAX 4 LUMINAIRES)
LINEAR CONFIGURATION WITH 1 METAL ROPE FOR 2 LUMINAIRES (MAX 4 LUMINAIRES)
