103
130
53
170°x6°
170°x6°
71
87
37
150
90
40
170°x6°
78
79

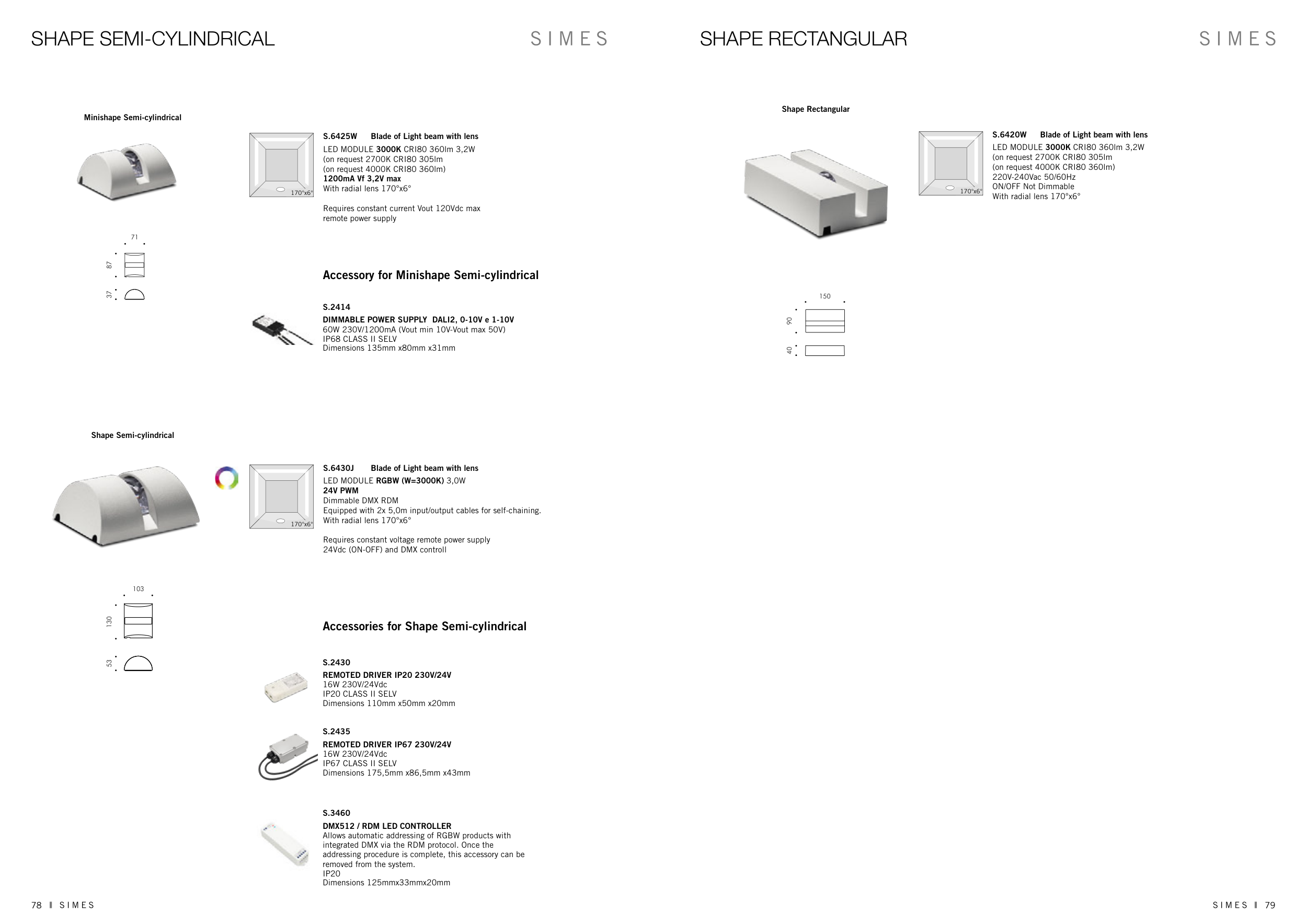

SHAPE SEMI-CYLINDRICAL
Accessories for Shape Semi-cylindrical
Accessory for Minishape Semi-cylindrical
Shape Semi-cylindrical
LED MODULE RGBW (W=3000K) 3,0W
24V PWM
Dimmable DMX RDM
Equipped with 2x 5,0m input/output cables for self-chaining.
With radial lens 170°x6°
Requires constant voltage remote power supply
24Vdc (ON-OFF) and DMX controll
Blade of Light beam with lens
DMX512 / RDM LED CONTROLLER
Allows automatic addressing of RGBW products with
integrated DMX via the RDM protocol. Once the
addressing procedure is complete, this accessory can be
removed from the system.
IP20
Dimensions 125mmx33mmx20mm
Minishape Semi-cylindrical
Shape Rectangular
SHAPE RECTANGULAR
LED MODULE 3000K CRI80 360lm 3,2W
(on request 2700K CRI80 305lm
(on request 4000K CRI80 360lm)
220V-240Vac 50/60Hz
ON/OFF Not Dimmable
With radial lens 170°x6°
LED MODULE 3000K CRI80 360lm 3,2W
(on request 2700K CRI80 305lm
(on request 4000K CRI80 360lm)
1200mA Vf 3,2V max
With radial lens 170°x6°
Requires constant current Vout 120Vdc max
remote power supply
Blade of Light beam with lens
Blade of Light beam with lens
DIMMABLE POWER SUPPLY DALI2, 0-10V e 1-10V
60W 230V/1200mA (Vout min 10V-Vout max 50V)
IP68 CLASS II SELV
Dimensions 135mm x80mm x31mm
REMOTED DRIVER IP20 230V/24V
16W 230V/24Vdc
IP20 CLASS II SELV
Dimensions 110mm x50mm x20mm
REMOTED DRIVER IP67 230V/24V
16W 230V/24Vdc
IP67 CLASS II SELV
Dimensions 175,5mm x86,5mm x43mm
S.3460
S.6425W
S.6420W
S.2414
S.6430J
S.2430
S.2435
