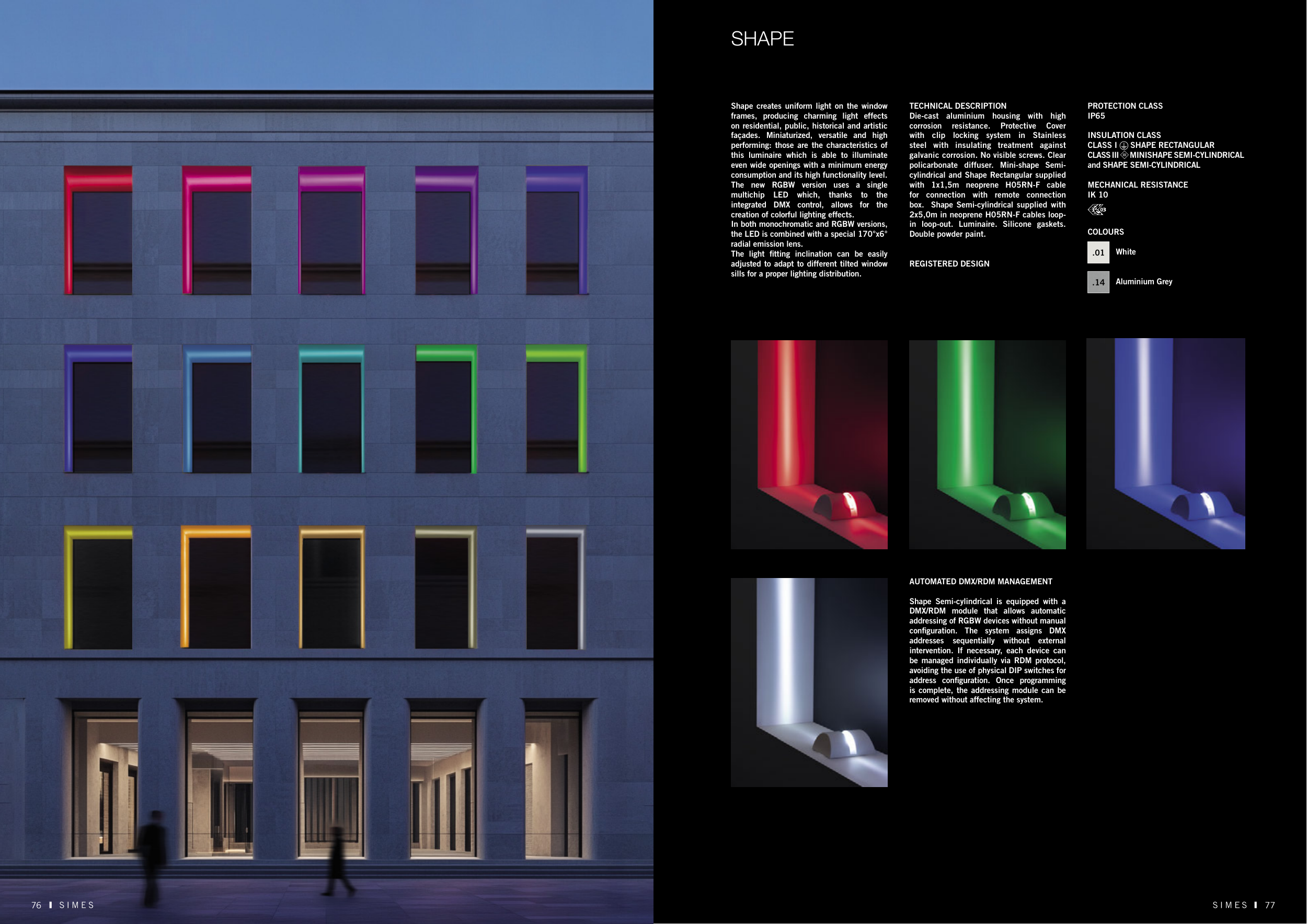

SHAPE
Shape creates uniform light on the window
frames, producing charming light effects
on residential, public, historical and artistic
façades. Miniaturized, versatile and high
performing: those are the characteristics of
this luminaire which is able to illuminate
even wide openings with a minimum energy
consumption and its high functionality level.
The new RGBW version uses a single
multichip LED which, thanks to the
integrated DMX control, allows for the
creation of colorful lighting effects.
In both monochromatic and RGBW versions,
the LED is combined with a special 170°x6°
radial emission lens.
The light fitting inclination can be easily
adjusted to adapt to different tilted window
sills for a proper lighting distribution.
TECHNICAL DESCRIPTION
Die-cast aluminium housing with high
corrosion
resistance.
Protective
Cover
with clip locking system in Stainless
steel with insulating treatment against
galvanic corrosion. No visible screws. Clear
policarbonate diffuser. Mini-shape Semi-
cylindrical and Shape Rectangular supplied
with 1x1,5m neoprene H05RN-F cable
for connection with remote connection
box. Shape Semi-cylindrical supplied with
2x5,0m in neoprene H05RN-F cables loop-
in loop-out. Luminaire. Silicone gaskets.
Double powder paint.
REGISTERED DESIGN
PROTECTION CLASS
IP65
INSULATION CLASS
CLASS I y SHAPE RECTANGULAR
CLASS III K MINISHAPE SEMI-CYLINDRICAL
and SHAPE SEMI-CYLINDRICAL
MECHANICAL RESISTANCE
IK 10
COLOURS
White
Aluminium Grey
AUTOMATED DMX/RDM MANAGEMENT
Shape Semi-cylindrical is equipped with a
DMX/RDM module that allows automatic
addressing of RGBW devices without manual
configuration. The system assigns DMX
addresses sequentially without external
intervention. If necessary, each device can
be managed individually via RDM protocol,
avoiding the use of physical DIP switches for
address configuration. Once programming
is complete, the addressing module can be
removed without affecting the system.
