315
Ø 102
45°
45°
355°
635÷950
3285
950÷1265
3600
1265÷1580
3915
39
38

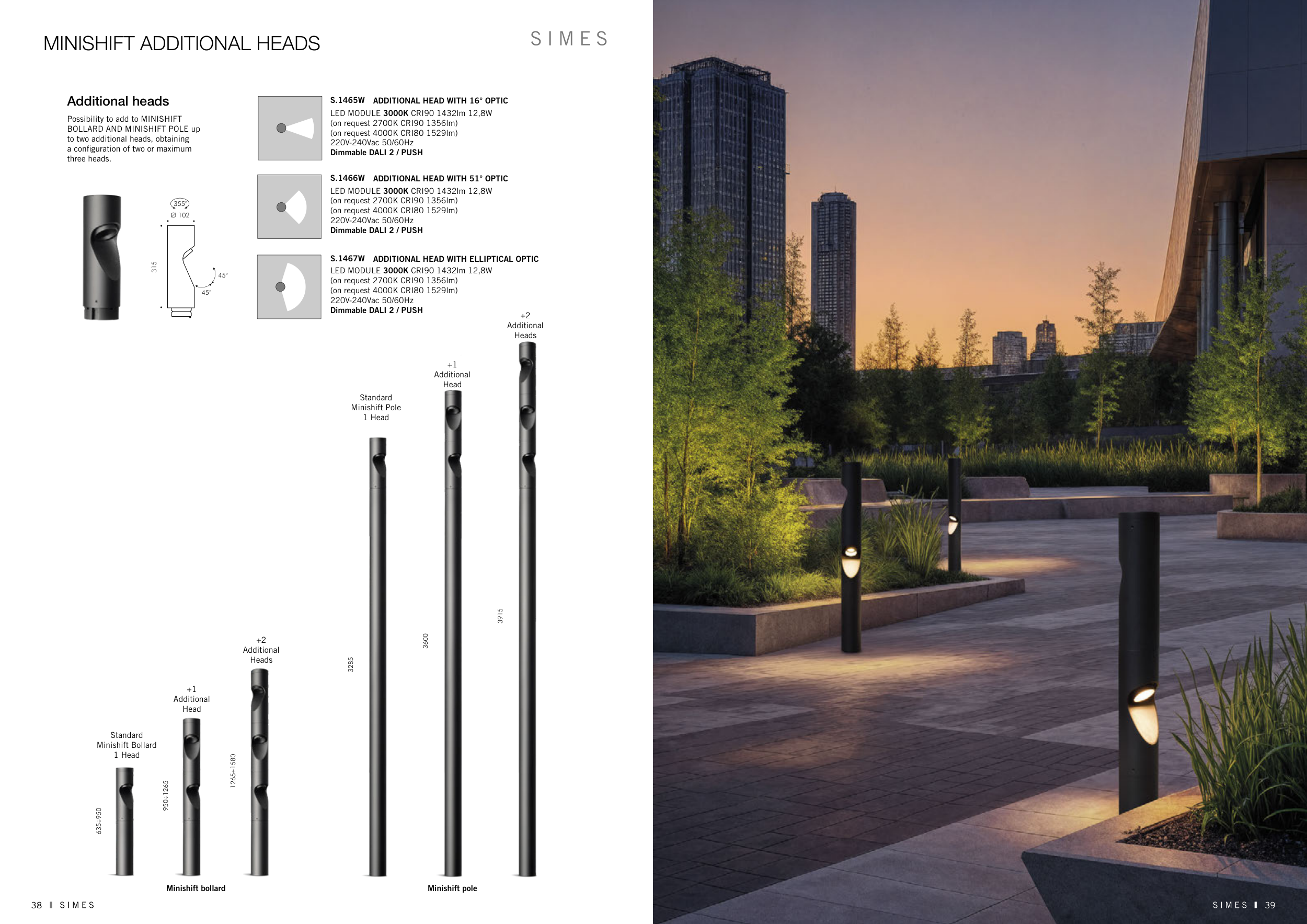

MINISHIFT ADDITIONAL HEADS
Additional heads
Possibility to add to MINISHIFT
BOLLARD AND MINISHIFT POLE up
to two additional heads, obtaining
a configuration of two or maximum
three heads.
ADDITIONAL HEAD WITH 51° OPTIC
ADDITIONAL HEAD WITH 16° OPTIC
ADDITIONAL HEAD WITH ELLIPTICAL OPTIC
LED MODULE 3000K CRI90 1432lm 12,8W
(on request 2700K CRI90 1356lm)
(on request 4000K CRI80 1529lm)
220V-240Vac 50/60Hz
Dimmable DALI 2 / PUSH
LED MODULE 3000K CRI90 1432lm 12,8W
(on request 2700K CRI90 1356lm)
(on request 4000K CRI80 1529lm)
220V-240Vac 50/60Hz
Dimmable DALI 2 / PUSH
LED MODULE 3000K CRI90 1432lm 12,8W
(on request 2700K CRI90 1356lm)
(on request 4000K CRI80 1529lm)
220V-240Vac 50/60Hz
Dimmable DALI 2 / PUSH
+1
Additional
Head
+1
Additional
Head
+2
Additional
Heads
+2
Additional
Heads
Standard
Minishift Bollard
1 Head
Minishift bollard
Minishift pole
Standard
Minishift Pole
1 Head
S.1466W
S.1465W
S.1467W
