DMX 512
24V PWM
S.3411
S.2485
Ø 255
50
Ø 355
60
28
29

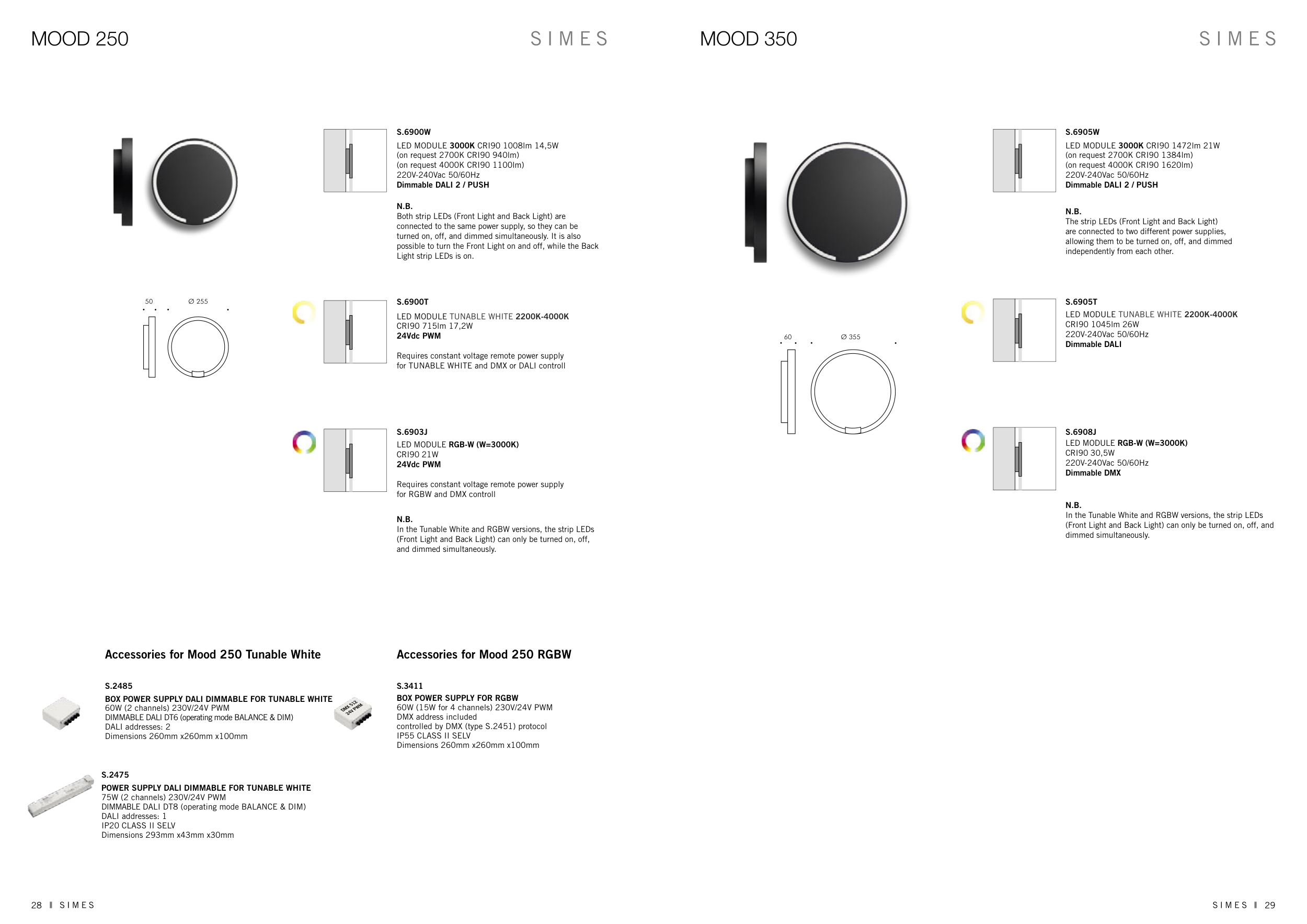

MOOD 250
MOOD 350
LED MODULE 3000K CRI90 1008lm 14,5W
(on request 2700K CRI90 940lm)
(on request 4000K CRI90 1100lm)
220V-240Vac 50/60Hz
Dimmable DALI 2 / PUSH
LED MODULE 3000K CRI90 1472lm 21W
(on request 2700K CRI90 1384lm)
(on request 4000K CRI90 1620lm)
220V-240Vac 50/60Hz
Dimmable DALI 2 / PUSH
LED MODULE TUNABLE WHITE 2200K-4000K
CRI90 715lm 17,2W
24Vdc PWM
Requires constant voltage remote power supply
for TUNABLE WHITE and DMX or DALI controll
LED MODULE TUNABLE WHITE 2200K-4000K
CRI90 1045lm 26W
220V-240Vac 50/60Hz
Dimmable DALI
LED MODULE RGB-W (W=3000K)
CRI90 21W
24Vdc PWM
Requires constant voltage remote power supply
for RGBW and DMX controll
LED MODULE RGB-W (W=3000K)
CRI90 30,5W
220V-240Vac 50/60Hz
Dimmable DMX
Accessories for Mood 250 Tunable White
Accessories for Mood 250 RGBW
BOX POWER SUPPLY FOR RGBW
60W (15W for 4 channels) 230V/24V PWM
DMX address included
controlled by DMX (type S.2451) protocol
IP55 CLASS II SELV
Dimensions 260mm x260mm x100mm
BOX POWER SUPPLY DALI DIMMABLE FOR TUNABLE WHITE
60W (2 channels) 230V/24V PWM
DIMMABLE DALI DT6 (operating mode BALANCE & DIM)
DALI addresses: 2
Dimensions 260mm x260mm x100mm
N.B.
Both strip LEDs (Front Light and Back Light) are
connected to the same power supply, so they can be
turned on, off, and dimmed simultaneously. It is also
possible to turn the Front Light on and off, while the Back
Light strip LEDs is on.
N.B.
The strip LEDs (Front Light and Back Light)
are connected to two different power supplies,
allowing them to be turned on, off, and dimmed
independently from each other.
N.B.
In the Tunable White and RGBW versions, the strip LEDs
(Front Light and Back Light) can only be turned on, off,
and dimmed simultaneously.
N.B.
In the Tunable White and RGBW versions, the strip LEDs
(Front Light and Back Light) can only be turned on, off, and
dimmed simultaneously.
POWER SUPPLY DALI DIMMABLE FOR TUNABLE WHITE
75W (2 channels) 230V/24V PWM
DIMMABLE DALI DT8 (operating mode BALANCE & DIM)
DALI addresses: 1
IP20 CLASS II SELV
Dimensions 293mm x43mm x30mm
S.6900W
S.6905W
S.6900T
S.6905T
S.6903J
S.6908J
S.2475
