CONFIGURATION WITH 4 ROSES
Suspension system
with 4 x Flower Zoom 60 Comfort 24Vdc 8,3W
with 4 roses
(Require remote power supply, see page 18)
Suspension system
with 8 x Flower Zoom 60 Comfort 24Vdc 8,3W
with 4 roses
(Require remote power supply, see page 18)
Suspension system
with 6 x Flower Zoom 60 Comfort 24Vdc 8,3W
with 4 roses
(Require remote power supply, see page 18)

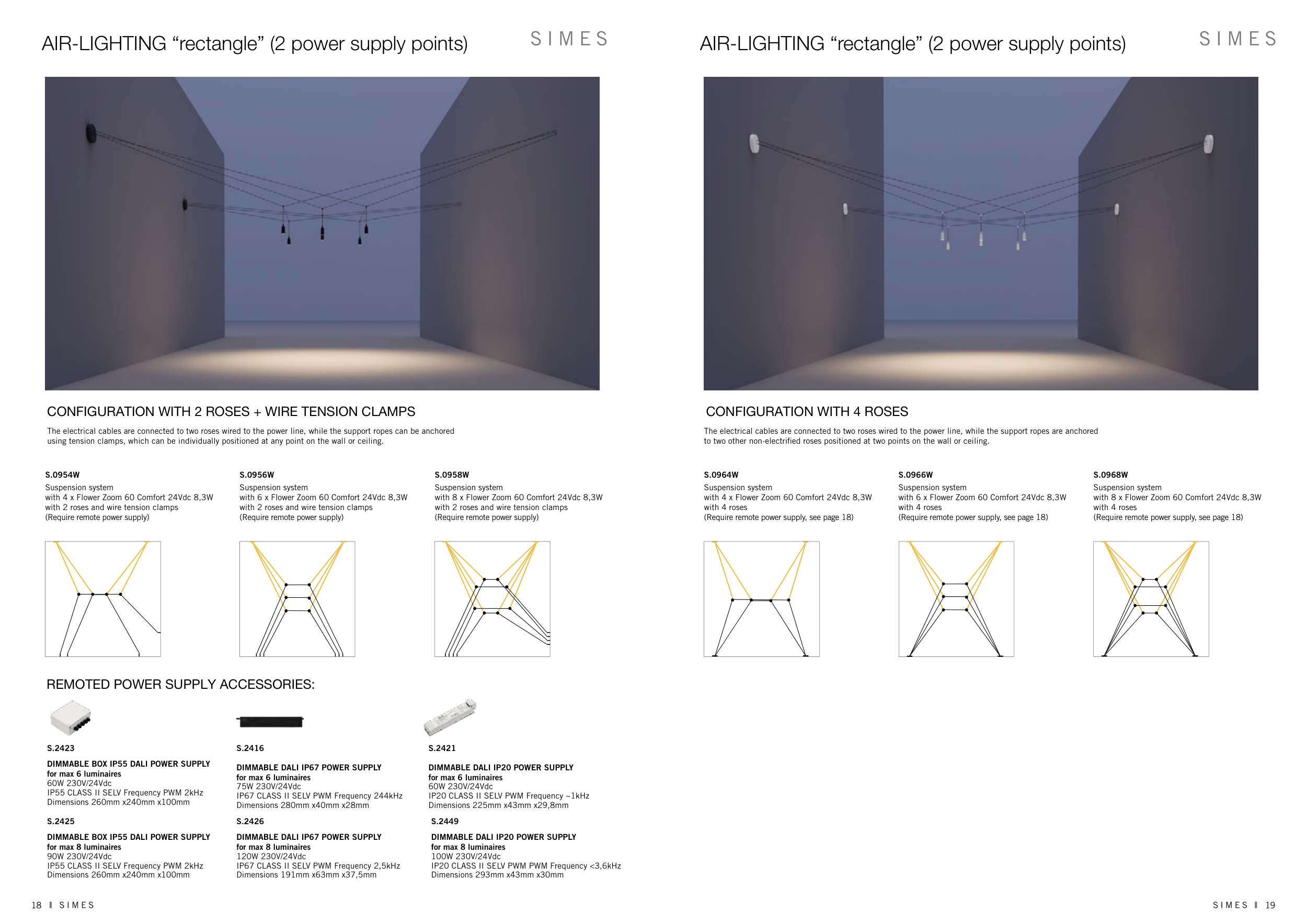

AIR-LIGHTING “rectangle” (2 power supply points)
CONFIGURATION WITH 2 ROSES + WIRE TENSION CLAMPS
Suspension system
with 4 x Flower Zoom 60 Comfort 24Vdc 8,3W
with 2 roses and wire tension clamps
(Require remote power supply)
Suspension system
with 8 x Flower Zoom 60 Comfort 24Vdc 8,3W
with 2 roses and wire tension clamps
(Require remote power supply)
Suspension system
with 6 x Flower Zoom 60 Comfort 24Vdc 8,3W
with 2 roses and wire tension clamps
(Require remote power supply)
AIR-LIGHTING “rectangle” (2 power supply points)
The electrical cables are connected to two roses wired to the power line, while the support ropes can be anchored
using tension clamps, which can be individually positioned at any point on the wall or ceiling.
The electrical cables are connected to two roses wired to the power line, while the support ropes are anchored
to two other non-electrified roses positioned at two points on the wall or ceiling.
DIMMABLE BOX IP55 DALI POWER SUPPLY
for max 6 luminaires
60W 230V/24Vdc
IP55 CLASS II SELV Frequency PWM 2kHz
Dimensions 260mm x240mm x100mm
DIMMABLE BOX IP55 DALI POWER SUPPLY
for max 8 luminaires
90W 230V/24Vdc
IP55 CLASS II SELV Frequency PWM 2kHz
Dimensions 260mm x240mm x100mm
DIMMABLE DALI IP67 POWER SUPPLY
for max 6 luminaires
75W 230V/24Vdc
IP67 CLASS II SELV PWM Frequency 244kHz
Dimensions 280mm x40mm x28mm
DIMMABLE DALI IP20 POWER SUPPLY
for max 6 luminaires
60W 230V/24Vdc
IP20 CLASS II SELV PWM Frequency ~1kHz
Dimensions 225mm x43mm x29,8mm
DIMMABLE DALI IP20 POWER SUPPLY
for max 8 luminaires
100W 230V/24Vdc
IP20 CLASS II SELV PWM PWM Frequency <3,6kHz
Dimensions 293mm x43mm x30mm
DIMMABLE DALI IP67 POWER SUPPLY
for max 8 luminaires
120W 230V/24Vdc
IP67 CLASS II SELV PWM Frequency 2,5kHz
Dimensions 191mm x63mm x37,5mm
REMOTED POWER SUPPLY ACCESSORIES:
S.0964W
S.0968W
S.0966W
S.0954W
S.0958W
S.0956W
S.2423
S.2425
S.2416
S.2421
S.2449
S.2426
