Electrification Rose

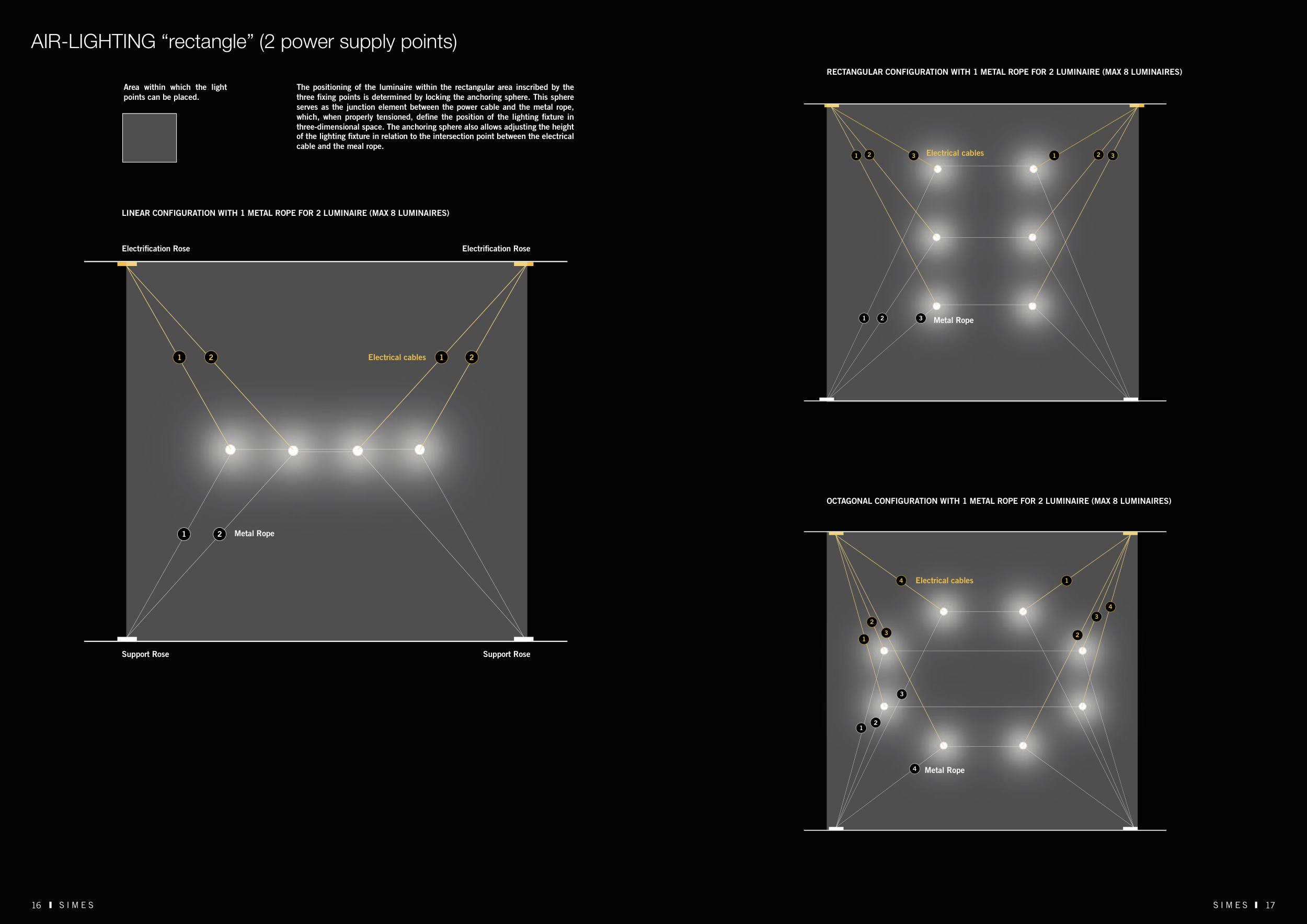

AIR-LIGHTING “rectangle” (2 power supply points)
Electrification Rose
Metal Rope
Support Rose
Support Rose
Electrical cables
RECTANGULAR CONFIGURATION WITH 1 METAL ROPE FOR 2 LUMINAIRE (MAX 8 LUMINAIRES)
Metal Rope
Electrical cables
Metal Rope
Electrical cables
OCTAGONAL CONFIGURATION WITH 1 METAL ROPE FOR 2 LUMINAIRE (MAX 8 LUMINAIRES)
LINEAR CONFIGURATION WITH 1 METAL ROPE FOR 2 LUMINAIRE (MAX 8 LUMINAIRES)
Area within which the light
points can be placed.
The positioning of the luminaire within the rectangular area inscribed by the
three fixing points is determined by locking the anchoring sphere. This sphere
serves as the junction element between the power cable and the metal rope,
which, when properly tensioned, define the position of the lighting fixture in
three-dimensional space. The anchoring sphere also allows adjusting the height
of the lighting fixture in relation to the intersection point between the electrical
cable and the meal rope.
