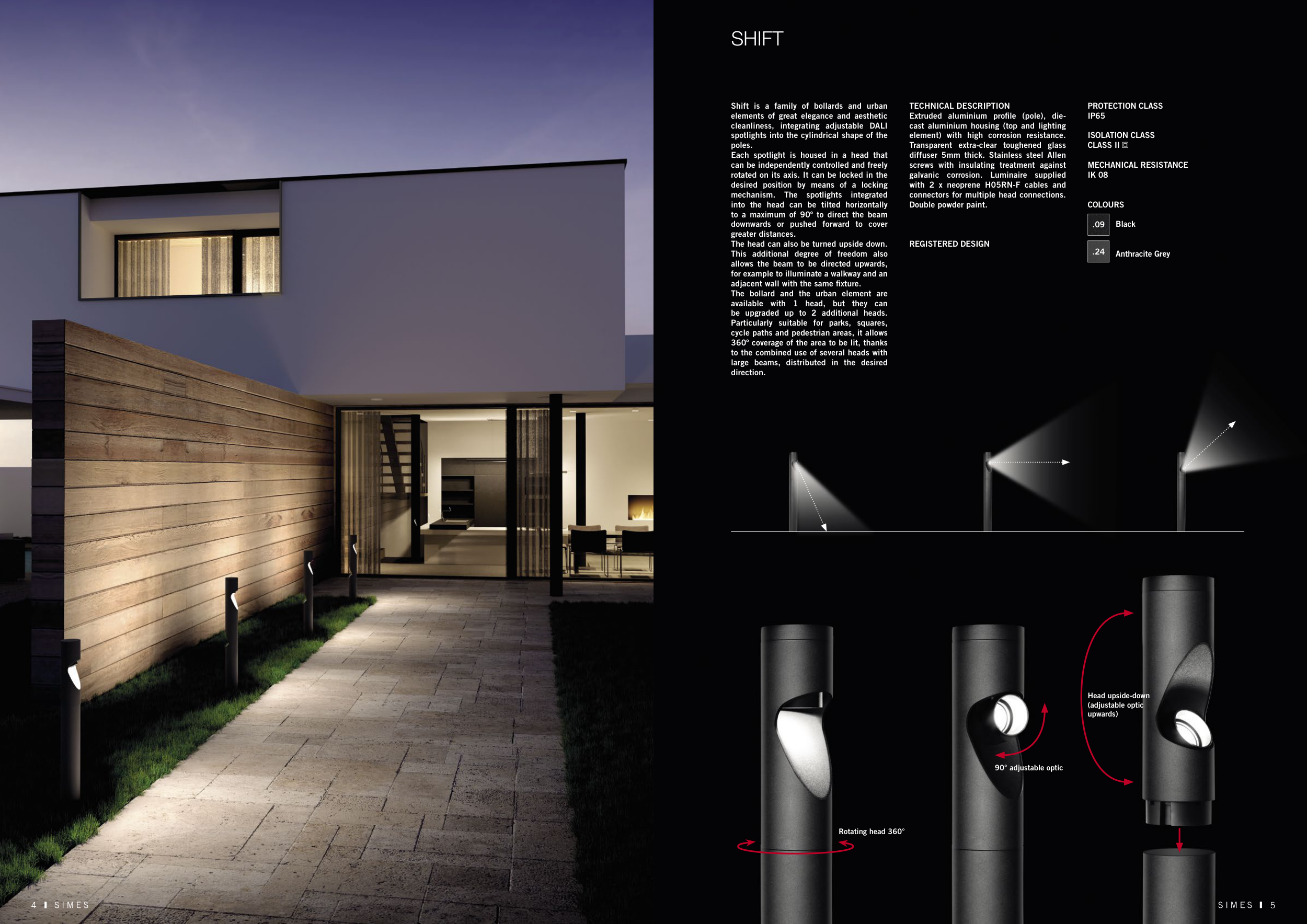

SHIFT
Shift is a family of bollards and urban
elements of great elegance and aesthetic
cleanliness, integrating adjustable DALI
spotlights into the cylindrical shape of the
poles.
Each spotlight is housed in a head that
can be independently controlled and freely
rotated on its axis. It can be locked in the
desired position by means of a locking
mechanism. The spotlights integrated
into the head can be tilted horizontally
to a maximum of 90º to direct the beam
downwards or pushed forward to cover
greater distances.
The head can also be turned upside down.
This additional degree of freedom also
allows the beam to be directed upwards,
for example to illuminate a walkway and an
adjacent wall with the same fixture.
The bollard and the urban element are
available with 1 head, but they can
be upgraded up to 2 additional heads.
Particularly suitable for parks, squares,
cycle paths and pedestrian areas, it allows
360º coverage of the area to be lit, thanks
to the combined use of several heads with
large beams, distributed in the desired
direction.
TECHNICAL DESCRIPTION
Extruded aluminium profile (pole), die-
cast aluminium housing (top and lighting
element) with high corrosion resistance.
Transparent extra-clear toughened glass
diffuser 5mm thick. Stainless steel Allen
screws with insulating treatment against
galvanic corrosion. Luminaire supplied
with 2 x neoprene H05RN-F cables and
connectors for multiple head connections.
Double powder paint.
REGISTERED DESIGN
PROTECTION CLASS
IP65
ISOLATION CLASS
CLASS II q
MECHANICAL RESISTANCE
IK 08
COLOURS
Black
Anthracite Grey
90° adjustable optic
Rotating head 360°
Head upside-down
(adjustable optic
upwards)
