24°
25°
53°
1070
85
150
20°
200°
35
110°
110°
200
50
29
28

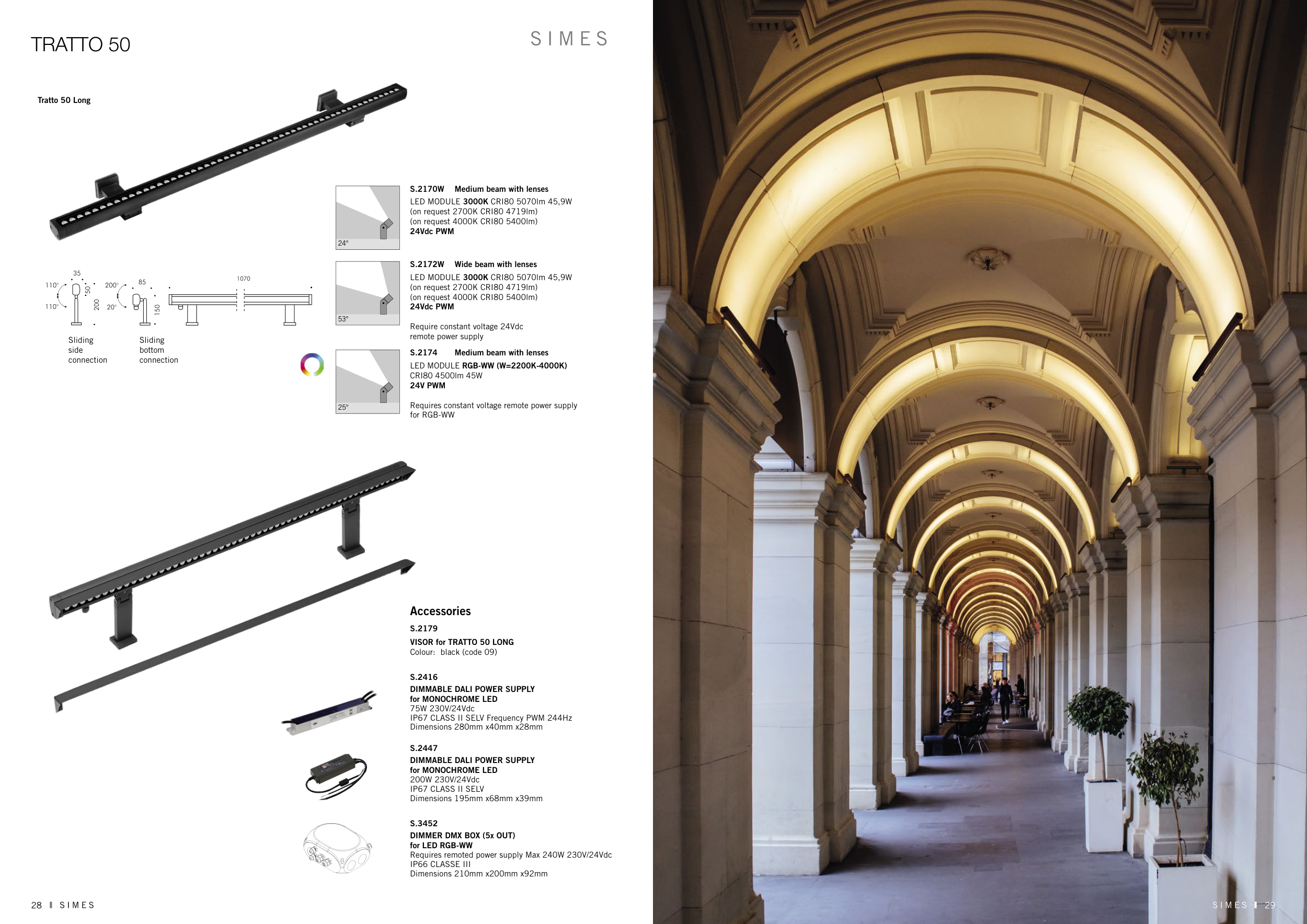

TRATTO 50
LED MODULE 3000K CRI80 5070lm 45,9W
(on request 2700K CRI80 4719lm)
(on request 4000K CRI80 5400lm)
24Vdc PWM
LED MODULE 3000K CRI80 5070lm 45,9W
(on request 2700K CRI80 4719lm)
(on request 4000K CRI80 5400lm)
24Vdc PWM
Require constant voltage 24Vdc
remote power supply
LED MODULE RGB-WW (W=2200K-4000K)
CRI80 4500lm 45W
24V PWM
Requires constant voltage remote power supply
for RGB-WW
Medium beam with lenses
Wide beam with lenses
Medium beam with lenses
Tratto 50 Long
VISOR for TRATTO 50 LONG
Colour: black (code 09)
Accessories
DIMMABLE DALI POWER SUPPLY
for MONOCHROME LED
75W 230V/24Vdc
IP67 CLASS II SELV Frequency PWM 244Hz
Dimensions 280mm x40mm x28mm
DIMMABLE DALI POWER SUPPLY
for MONOCHROME LED
200W 230V/24Vdc
IP67 CLASS II SELV
Dimensions 195mm x68mm x39mm
Sliding
bottom
connection
Sliding
side
connection
DIMMER DMX BOX (5x OUT)
for LED RGB-WW
Requires remoted power supply Max 240W 230V/24Vdc
IP66 CLASSE III
Dimensions 210mm x200mm x92mm
S.2170W
S.2172W
S.2174
S.2179
S.2416
S.2447
S.3452
