IP SYSTEM
HIGHLIGHTER (light rod)
Fixing base in black anodized extruded EN
AW-6060 aluminium housing with high
corrosion resistance 1, 2 or 3m length and
side covers in painted aluminium.
Luminaire hard wired with 5m single silicone
4-poles cable for two independent electrical
circuits: one for the supply of the light rod
and the other specifically dedicated to the
supply of the plug-in fixtures.
Continuous light source made of co-extruded
opal silicone.
AISI 301 painted end caps.
Double powder paint.
Require constant voltage 24V DC remote
power supply.
FLOWER plug-in (adjustable projector)
TRENDY plug-in (fixed downlight)
CEILING plug-in (fixed downlight)
Die-cast EN AB-47100 aluminium housing
with high corrosion resistance.
Clear toughened glass 4 mm thick.
Comfort optic: clear lenses with the retracted
position of the LED.
No visible stainless steel screws.
Fast clip-on fixtation system and pins for the
electrical connection.
Silicone gaskets.
Plug-in fixtures protected against the reverse
polarity.
Double powder paint.
Constant voltage 24V DC from the electrical
connection to the HIGHLIGHTER lighting
profile.
The overall consumption of the plug-in fixtures
on each HIGHLIGHTER Rod (regardless of its
length 1, 2 or 3m) must not exceed 50W.
Removal or replacement of the additional
fixtures must be carried out by a qualified
professional through the use of special tools.
IP rating
IP65
Isolation
CLASS III
Mechanical resistance
IK08 Highlighter
IK07 Plug-in fixtures
Remote power supply 24V DC not included.
PATENT PENDING
REGISTERED DESIGN
Colors:
HIGHLIGHTER
Light rod IP65
TRENDY plug-in
Fixed IP65 plug-in Downlight
MID-POWER LED 3000K CRI90 814lm / 1m
Rated luminaire luminous flux 814lm / 1m
Rated input power 14W / 1m 24V DC
Computer-simulated photometrics
Requires constant voltage remote
power supply 24V DC
3 HIGH-POWER LED 3000K CRI90 450lm
Rated luminaire luminous flux 355lm
Rated input power 5,0W 24V DC
Computer-simulated photometrics
3 HIGH-POWER LED 3000K CRI90 450lm
Rated luminaire luminous flux 355lm
Rated input power 5,0W 24V DC
Computer-simulated photometrics
Constant voltage 24V DC from the electrical
connection to the HIGHLIGHTER lighting profile.
Additional plug-in
fixture
Installation template for plug-in
fixtures included
Tool straightens pins included
Stabilizing clips included
(only for Flower family and Trendy)
View the installation, removal and
repositioning video instructions of
the plug-in fittings and fill-up the
assembly check-list leaflet.
White
Black
www.simes.it/en/tutorial/ipsystem
Primary profile
fixture

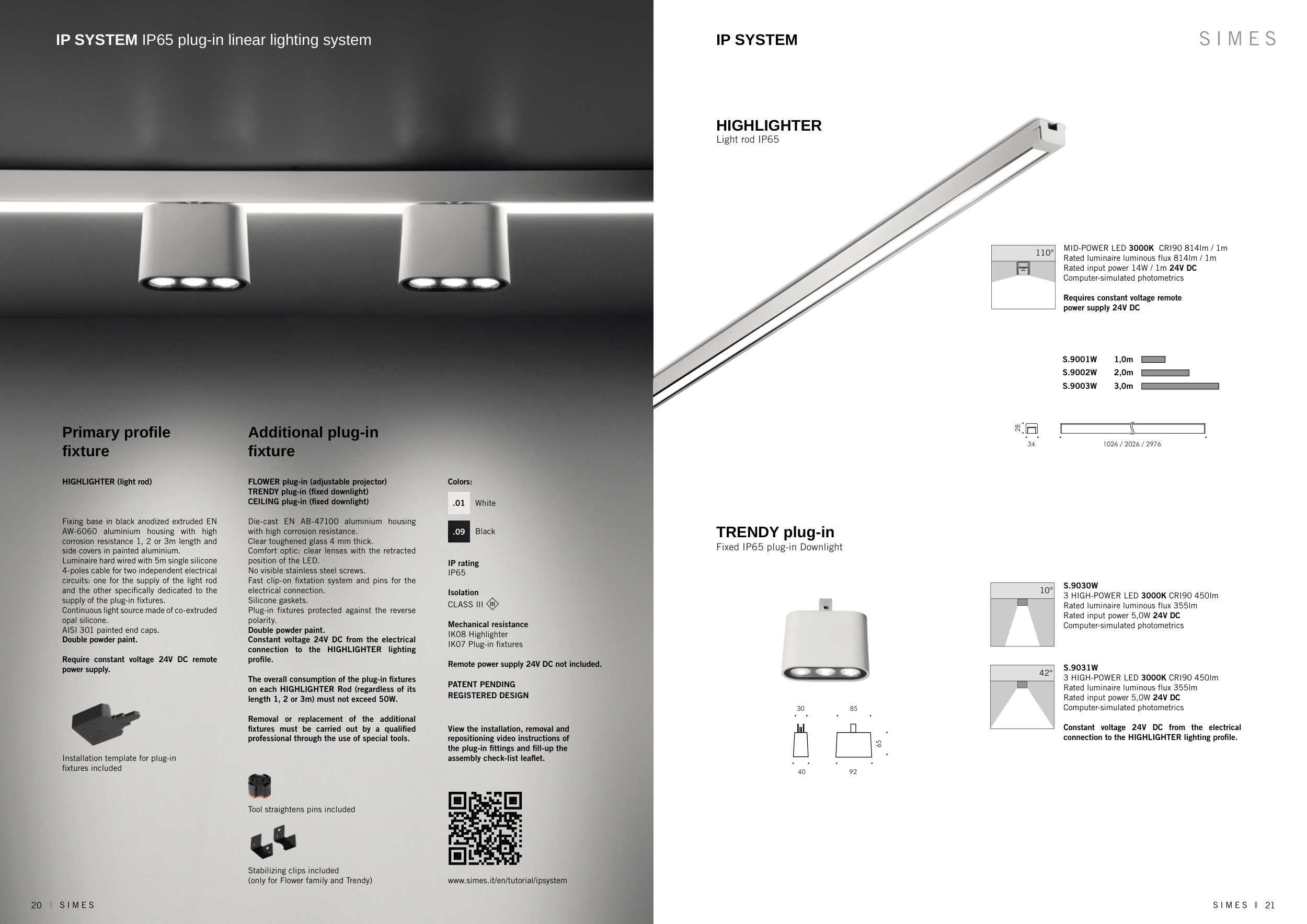

IP SYSTEM IP65 plug-in linear lighting system
