5

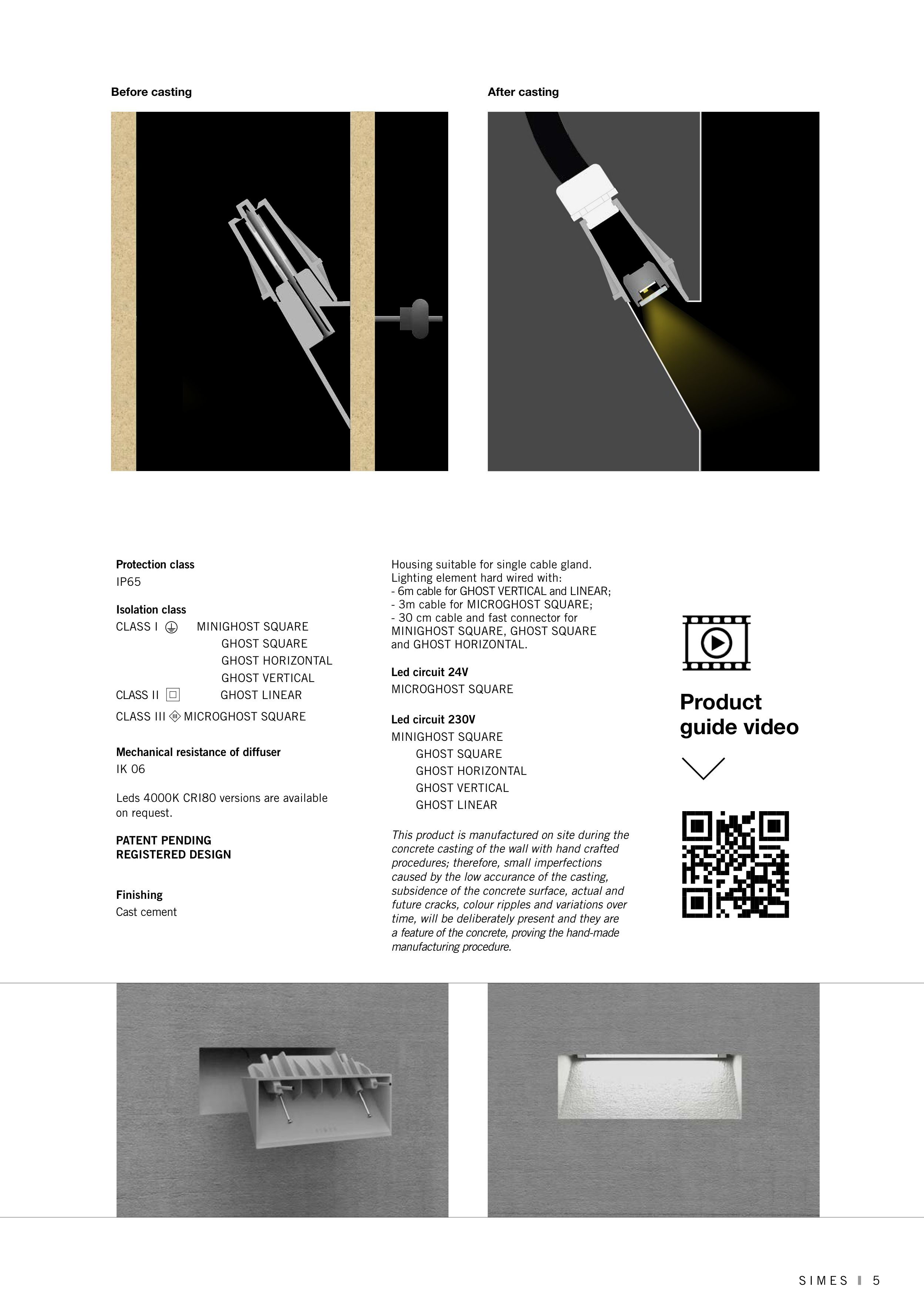

Before casting
After casting
Protection class
IP65
Isolation class
CLASS I y MINIGHOST SQUARE
GHOST SQUARE
GHOST HORIZONTAL
GHOST VERTICAL
CLASS II
GHOST LINEAR
CLASS III MICROGHOST SQUARE
Mechanical resistance of diffuser
IK 06
Leds 4000K CRI80 versions are available
on request.
PATENT PENDING
REGISTERED DESIGN
Led circuit 24V
MICROGHOST SQUARE
Led circuit 230V
MINIGHOST SQUARE
GHOST SQUARE
GHOST HORIZONTAL
GHOST VERTICAL
GHOST LINEAR
Finishing
Cast cement
This product is manufactured on site during the
concrete casting of the wall with hand crafted
procedures; therefore, small imperfections
caused by the low accurance of the casting,
subsidence of the concrete surface, actual and
future cracks, colour ripples and variations over
time, will be deliberately present and they are
a feature of the concrete, proving the hand-made
manufacturing procedure.
Housing suitable for single cable gland.
Lighting element hard wired with:
- 6m cable for GHOST VERTICAL and LINEAR;
- 3m cable for MICROGHOST SQUARE;
- 30 cm cable and fast connector for
MINIGHOST SQUARE, GHOST SQUARE
and GHOST HORIZONTAL.
Product
guide video
