200
240
Ø 210
7÷30
215
Ø 183
Beam angle 10°
Dimming 90%
Beam angle 45°
Dimming 90%
10°÷50°
10°÷50°
13
12
RECESSING box for installation in concrete ceilings.
Dimensions: Ø 190mm h 240mm
Recessed box in polypropylene.

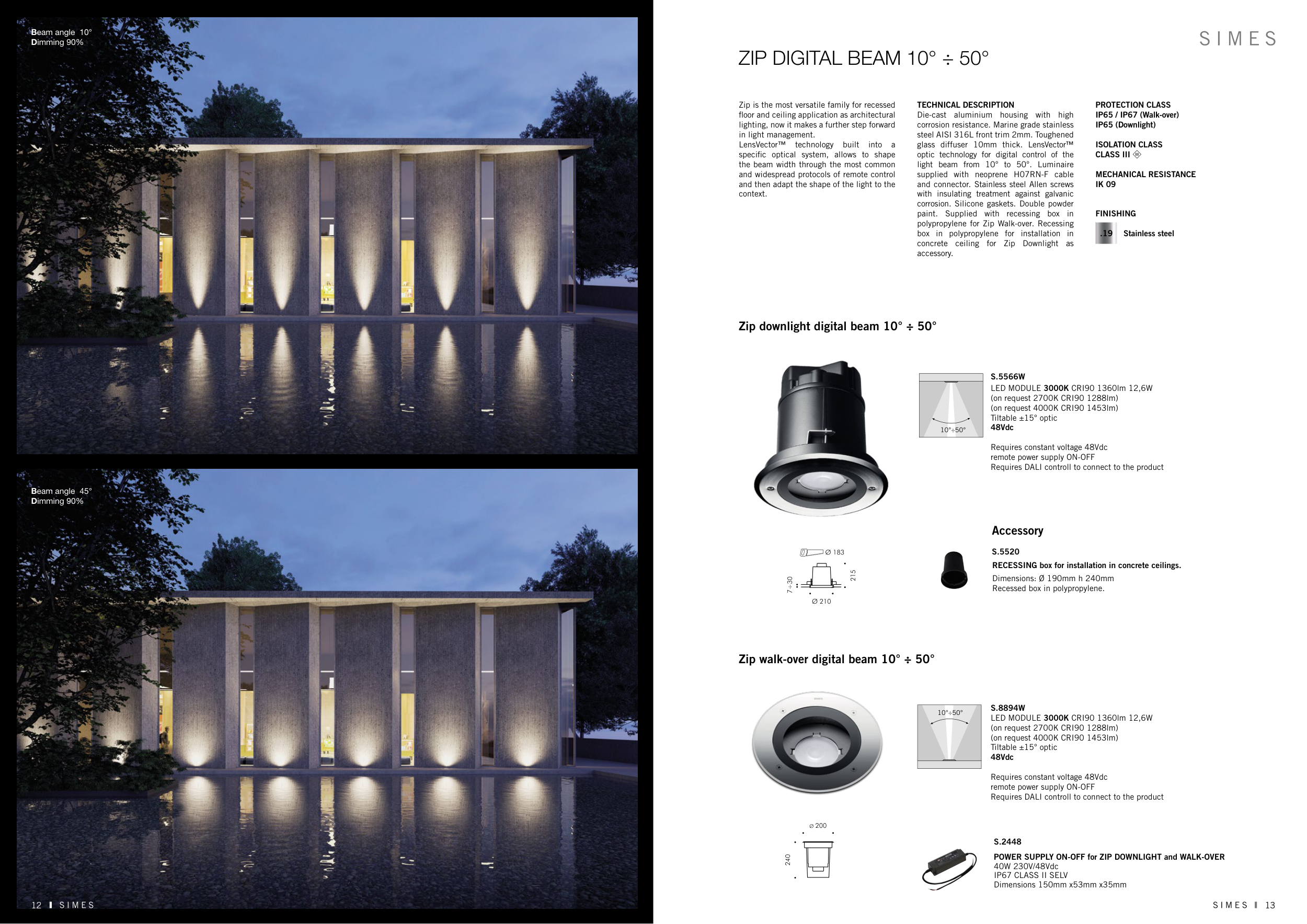

ZIP DIGITAL BEAM 10° ÷ 50°
LED MODULE 3000K CRI90 1360lm 12,6W
(on request 2700K CRI90 1288lm)
(on request 4000K CRI90 1453lm)
Tiltable ±15° optic
48Vdc
Requires constant voltage 48Vdc
remote power supply ON-OFF
Requires DALI controll to connect to the product
LED MODULE 3000K CRI90 1360lm 12,6W
(on request 2700K CRI90 1288lm)
(on request 4000K CRI90 1453lm)
Tiltable ±15° optic
48Vdc
Requires constant voltage 48Vdc
remote power supply ON-OFF
Requires DALI controll to connect to the product
Zip is the most versatile family for recessed
floor and ceiling application as architectural
lighting, now it makes a further step forward
in light management.
LensVector™
technology
built
into
a
specific optical system, allows to shape
the beam width through the most common
and widespread protocols of remote control
and then adapt the shape of the light to the
context.
TECHNICAL DESCRIPTION
Die-cast aluminium housing with high
corrosion resistance. Marine grade stainless
steel AISI 316L front trim 2mm. Toughened
glass diffuser 10mm thick. LensVector™
optic technology for digital control of the
light beam from 10° to 50°. Luminaire
supplied with neoprene H07RN-F cable
and connector. Stainless steel Allen screws
with insulating treatment against galvanic
corrosion. Silicone gaskets. Double powder
paint. Supplied with recessing box in
polypropylene for Zip Walk-over. Recessing
box in polypropylene for installation in
concrete ceiling for Zip Downlight as
accessory.
PROTECTION CLASS
IP65 / IP67 (Walk-over)
IP65 (Downlight)
ISOLATION CLASS
CLASS III
MECHANICAL RESISTANCE
IK 09
FINISHING
Stainless steel
Zip walk-over digital beam 10° ÷ 50°
Zip downlight digital beam 10° ÷ 50°
.19
Accessory
POWER SUPPLY ON-OFF for ZIP DOWNLIGHT and WALK-OVER
40W 230V/48Vdc
IP67 CLASS II SELV
Dimensions 150mm x53mm x35mm
S.5520
S.5566W
S.8894W
S.2448
