420
146
Ø 133
185
Ø 150
45°
90°
150
192
145
Beam angle
Dimming
Beam angle
Dimming
B 50°
D 80%
B 50°
D 80%
B 50°
D 80%
B 50°
D 80%
B 50°
D 80%
B 50°
D 80%
OFF
OFF
OFF
OFF
OFF
B 10°
D 80%
OFF
OFF
OFF
B 10°
D 60%
B 10°
D 60%
B 10°
D 60%
10°÷50°
11
10

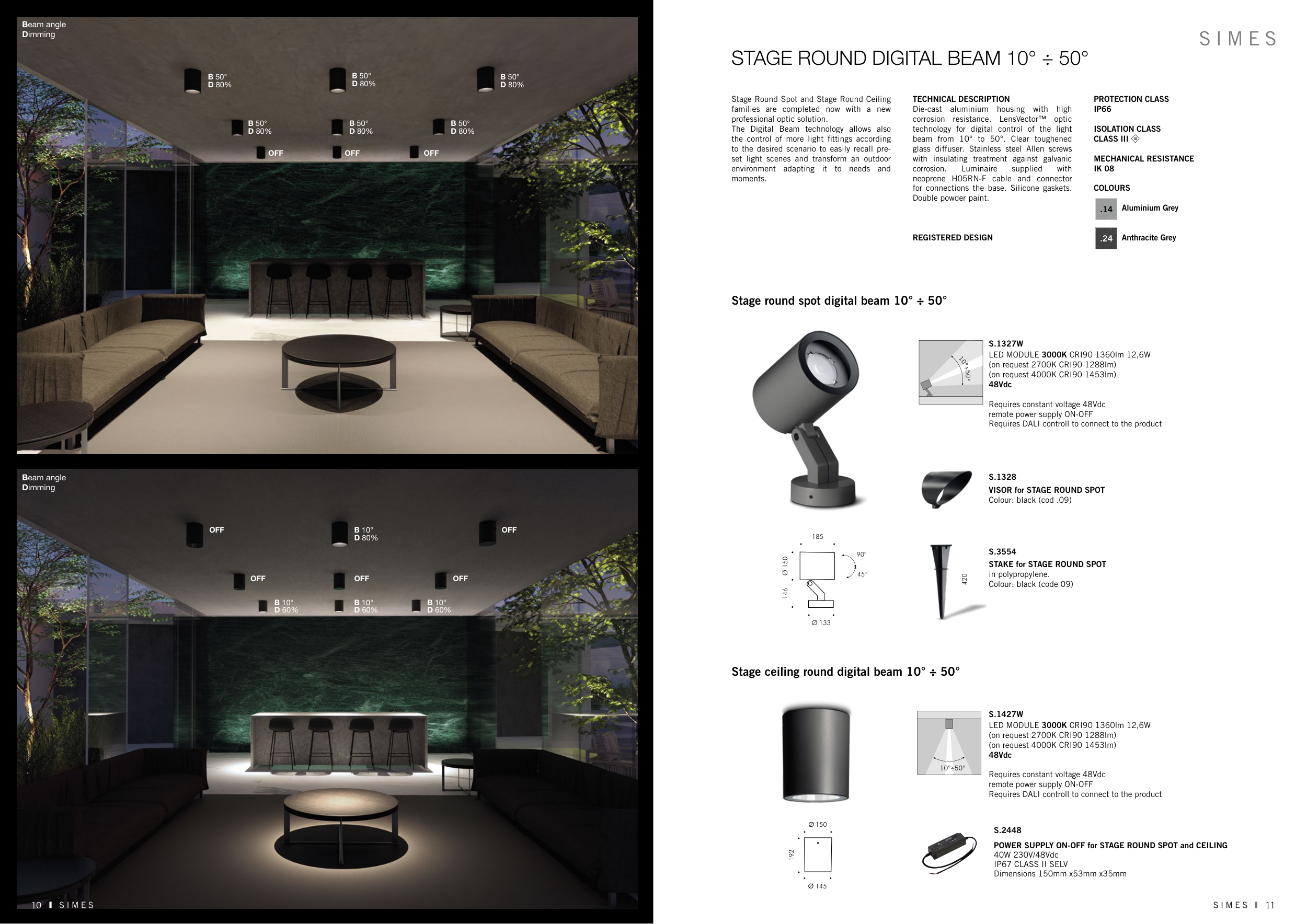

STAGE ROUND DIGITAL BEAM 10° ÷ 50°
LED MODULE 3000K CRI90 1360lm 12,6W
(on request 2700K CRI90 1288lm)
(on request 4000K CRI90 1453lm)
48Vdc
Requires constant voltage 48Vdc
remote power supply ON-OFF
Requires DALI controll to connect to the product
LED MODULE 3000K CRI90 1360lm 12,6W
(on request 2700K CRI90 1288lm)
(on request 4000K CRI90 1453lm)
48Vdc
Requires constant voltage 48Vdc
remote power supply ON-OFF
Requires DALI controll to connect to the product
Stage round spot digital beam 10° ÷ 50°
Stage ceiling round digital beam 10° ÷ 50°
STAKE for STAGE ROUND SPOT
in polypropylene.
Colour: black (code 09)
VISOR for STAGE ROUND SPOT
Colour: black (cod .09)
Stage Round Spot and Stage Round Ceiling
families are completed now with a new
professional optic solution.
The Digital Beam technology allows also
the control of more light fittings according
to the desired scenario to easily recall pre-
set light scenes and transform an outdoor
environment adapting it to needs and
moments.
TECHNICAL DESCRIPTION
Die-cast aluminium housing with high
corrosion resistance. LensVector™ optic
technology for digital control of the light
beam from 10° to 50°. Clear toughened
glass diffuser. Stainless steel Allen screws
with insulating treatment against galvanic
corrosion.
Luminaire
supplied
with
neoprene H05RN-F cable and connector
for connections the base. Silicone gaskets.
Double powder paint.
REGISTERED DESIGN
PROTECTION CLASS
IP66
ISOLATION CLASS
CLASS III
MECHANICAL RESISTANCE
IK 08
COLOURS
Aluminium Grey
Anthracite Grey
.24
.14
POWER SUPPLY ON-OFF for STAGE ROUND SPOT and CEILING
40W 230V/48Vdc
IP67 CLASS II SELV
Dimensions 150mm x53mm x35mm
S.3554
S.1328
S.1327W
S.1427W
S.2448
