5m
5m
h 6,8 m
1
2
5
10
15
20
30
lux
145
766
145
102
748
448
102
i 76
i 76
448
i 76
1598
102
800
102
500
76
5160
110
102
76
6440
110

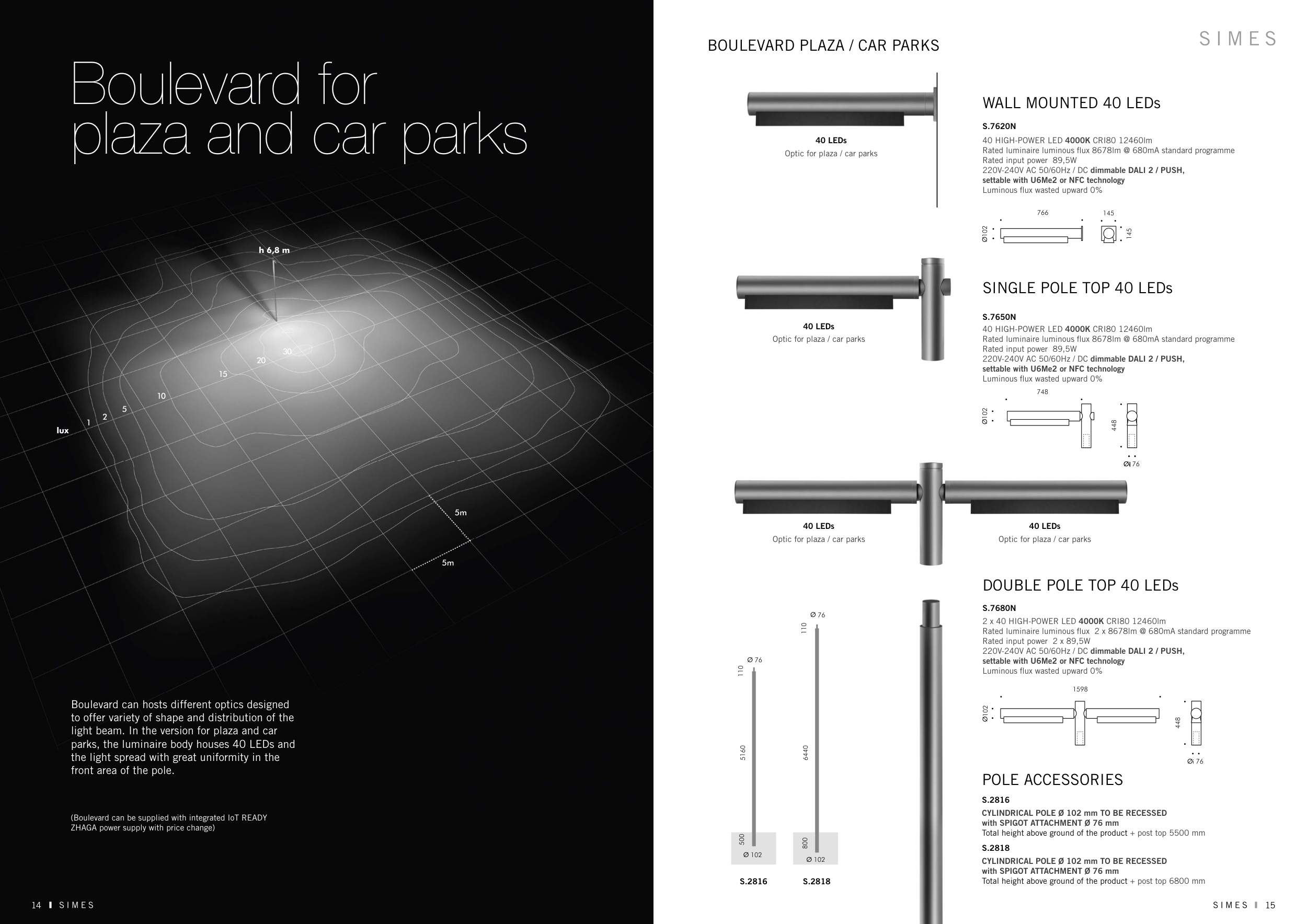

Boulevard can hosts different optics designed
to offer variety of shape and distribution of the
light beam. In the version for plaza and car
parks, the luminaire body houses 40 LEDs and
the light spread with great uniformity in the
front area of the pole.
Boulevard for
plaza and car parks
(Boulevard can be supplied with integrated IoT READY
ZHAGA power supply with price change)
40 HIGH-POWER LED 4000K CRI80 12460lm
Rated luminaire luminous flux 8678lm @ 680mA standard programme
Rated input power 89,5W
220V-240V AC 50/60Hz / DC dimmable DALI 2 / PUSH,
settable with U6Me2 or NFC technology
Luminous flux wasted upward 0%
40 HIGH-POWER LED 4000K CRI80 12460lm
Rated luminaire luminous flux 8678lm @ 680mA standard programme
Rated input power 89,5W
220V-240V AC 50/60Hz / DC dimmable DALI 2 / PUSH,
settable with U6Me2 or NFC technology
Luminous flux wasted upward 0%
2 x 40 HIGH-POWER LED 4000K CRI80 12460lm
Rated luminaire luminous flux 2 x 8678lm @ 680mA standard programme
Rated input power 2 x 89,5W
220V-240V AC 50/60Hz / DC dimmable DALI 2 / PUSH,
settable with U6Me2 or NFC technology
Luminous flux wasted upward 0%
WALL MOUNTED 40 LEDs
40 LEDs
Optic for plaza / car parks
SINGLE POLE TOP 40 LEDs
40 LEDs
Optic for plaza / car parks
40 LEDs
Optic for plaza / car parks
40 LEDs
Optic for plaza / car parks
DOUBLE POLE TOP 40 LEDs
BOULEVARD PLAZA / CAR PARKS
POLE ACCESSORIES
CYLINDRICAL POLE Ø 102 mm TO BE RECESSED
with SPIGOT ATTACHMENT Ø 76 mm
Total height above ground of the product + post top 6800 mm
CYLINDRICAL POLE Ø 102 mm TO BE RECESSED
with SPIGOT ATTACHMENT Ø 76 mm
Total height above ground of the product + post top 5500 mm
15
14
S.7620N
S.7650N
S.7680N
S.2816
S.2818
S.2818
S.2816
